oventrop Hydrocontrol MTR - Setup & Functions; 4 Technical Description

"Hydrocontrol MTR" (lead-free) Technical Description
7

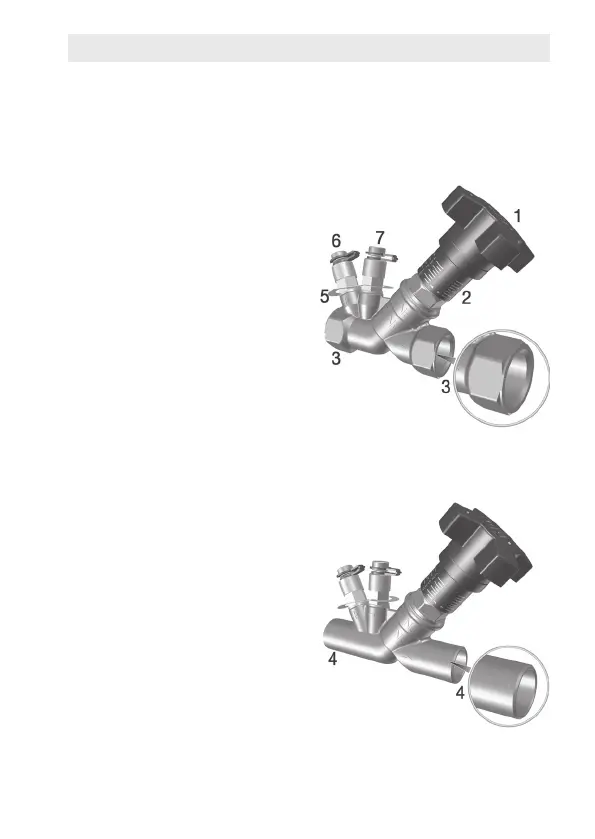

Fig. 1: MTR with NPT connections
Fig. 2: MTR with soldered connections
4. Technical
Description
4.1 Setup & Functions
The"Hydrocontrol MTR" balan-
cingvalve(lead-free≤0.25%Pb)
isintended forshutoffandba-
lancing in hydronic heating and
cooling systems. The Y-pattern
globe valve has a multi-turn
hand wheel and two measuring
ports. It is available with NPT
threaded connections or solde-
redconnections.
Legend
1 Handwheel
2 Settingadjustmentscale
3 NPTthreadedconnections
4 Soldered connections
5 Cvvalue
 identicationplate
6 Measuring connection (+)
7 Measuring connection (-)
Housingspecications
(bothmodels):
OV:Oventrop
DN:NominalDiameter
PN:Nominalpressure
LF:lead-free
