Technical Description "Hydrocontrol MTR" (lead-free)
8
Dimensions (inches) according to nominal Diameter:
DN D t L H SP*
15 NPT½ 0.54 3.43 4.49 1.06
20 NPT¾ 0.56 3.78 4.57 1.26
25 NPT1 0.66 4.02 4.69 1.61
32 NPT1¼ 0.68 4.69 5.35 1.97
40 NPT1½ 0.68 5.20 5.51 2.17
50 NPT2 0.70 6.42 5.94 2.76
*SpannerSize

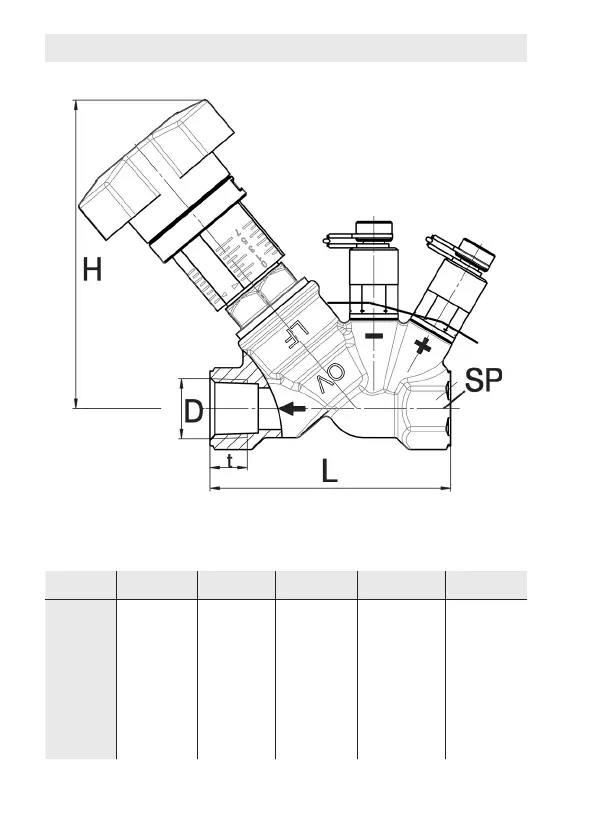

Fig. 3: Scale drawing of design with NPT threaded connections
