oventrop OV-DMC 2 User Manual

7

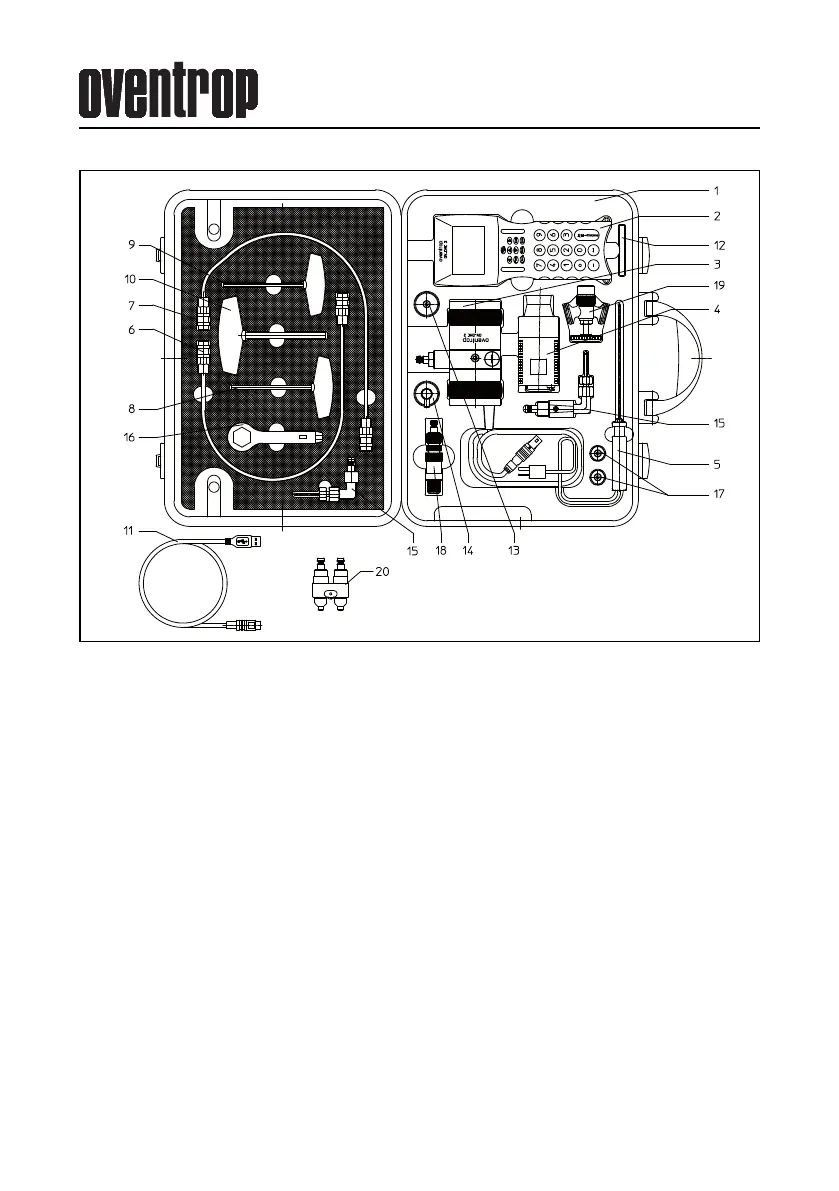

Content of measuring case
11. Measuring case
12. Flow meter “OV-DMC 2” with shoulder strap
13. Measuring head with connection cable, connection nipple for measuring hose and two rubber rings
protecting the measuring head against impact
14. Power pack with connecting cable
15. Temperature sensor with connecting cable 1 m long
16. Measuring hose, red with quick couplings 0.5 m long
17. Measuring hose, blue with quick couplings 0.5 m long
18. Allen key 3 mm with black handle
19. Allen key 4 mm with black handle
10. Allen key 8 mm with black handle
11. PC connection cable to transmit stored data of the “OV-DMC 2” to the USB interface
12. USB-Stick for data transmission
13. 2 measuring adapters with connection thread R
3
⁄4 for quick-coupling technic
Suitable for “Hydrocontrol” as well and the fill and drain tool 106 17 91 of “Hycocon”
14. Measuring adapter with connection thread R
3
⁄4 for double regulating and commissioning valves
“Hydrocontrol” with needle technic
15. Set of measuring needles 106 91 99 for measuring technic “classic” of double regulating and
commissioning valves, e.g.“Hydrocontrol”
16. Operating key 106 01 85 for older double regulating and commissioning valves “Hydrocontrol”
17. Two connection nipples 106 91 86 for replacement at measuring head
18. Set of measuring needles 106 17 99 for measuring technic “eco” of double regulating and commissioning
valves, e.g.“Hycocon”
19. 2 fill and drain tools 106 17 91 for measuring technic “eco” of double regulating and commissioning
valves, e.g.“Hycocon”
20. Measuring device 114 50 99 for regulating valves “Cocon” with measuring technic “eco”
Operating instructions
