Owon DGE1030 - Rear Panel Overview; Powering On the Instrument

4
.
Quick Start
5
10
On/Off button
Turns the output of the channel on or off. When the output
is turned on, the backlight of the button lights up.
11
Waveform
Selection
area
Includes: Sine , Square , Ramp , Pulse ,
Noise , Arb Wave .
Rear Panel Overview

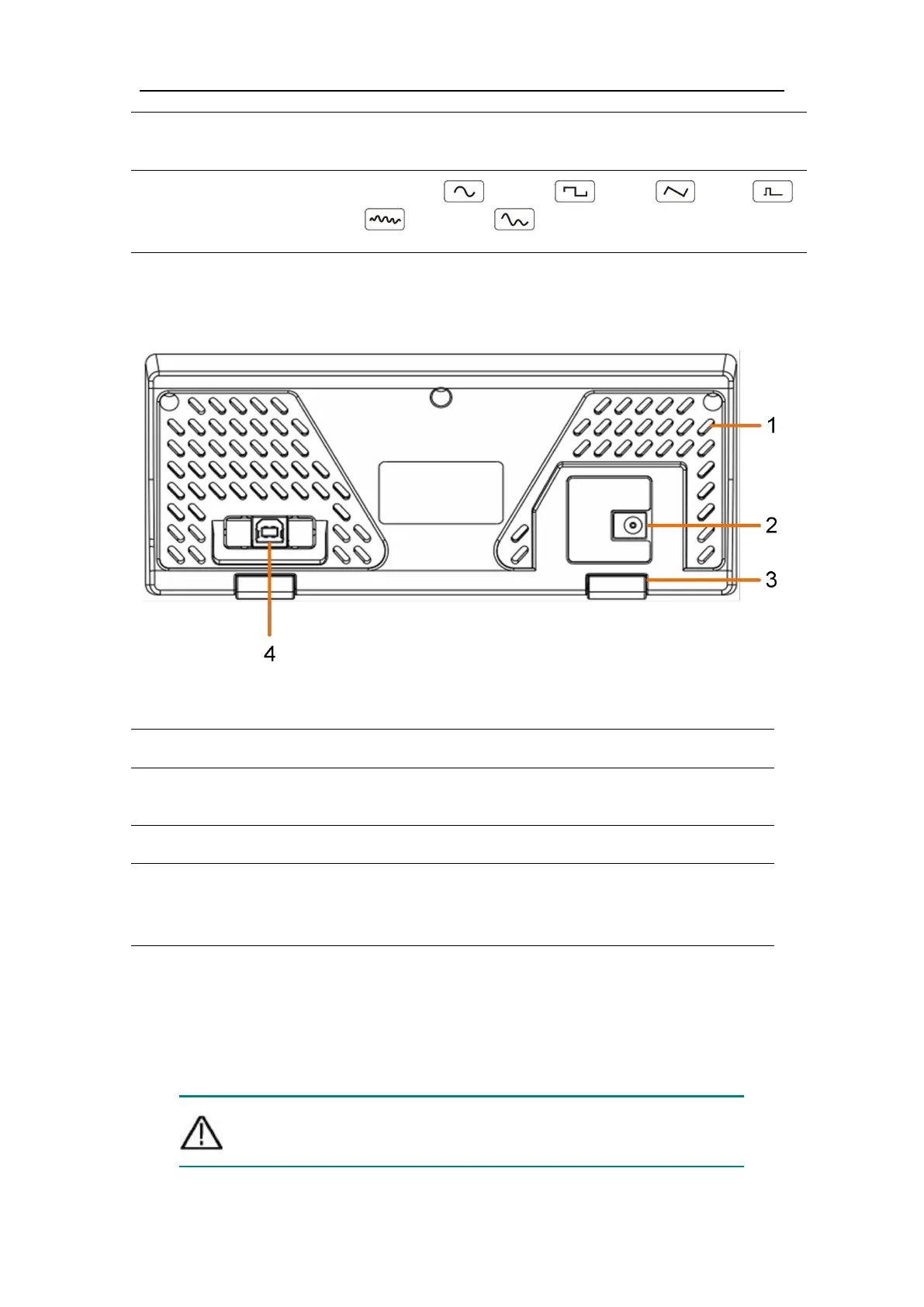

Figure 4- 2 Rear Panel Overview
1
Air vents
2
Power input
connector
DC power input connector.
3
Foot Stool
Tilt the signal generator for easy operation.
4
USB Device
interface
Used to connect a USB type B controller. Can be
connected with PC, the signal generator can be
controlled by the host computer software.
Power On
(1) Connect the instrument to the AC power using the DC power adapter
provided in the attachment.
Warning: To prevent electric shock, make sure the instrument
is properly grounded.
