Owon DGE1030 - Understanding the User Interface

4
.
Quick Start
6
(2) Press the power button on the front panel. The back of the power channel
switch will light up, and the buzzer will sound.
User Interface

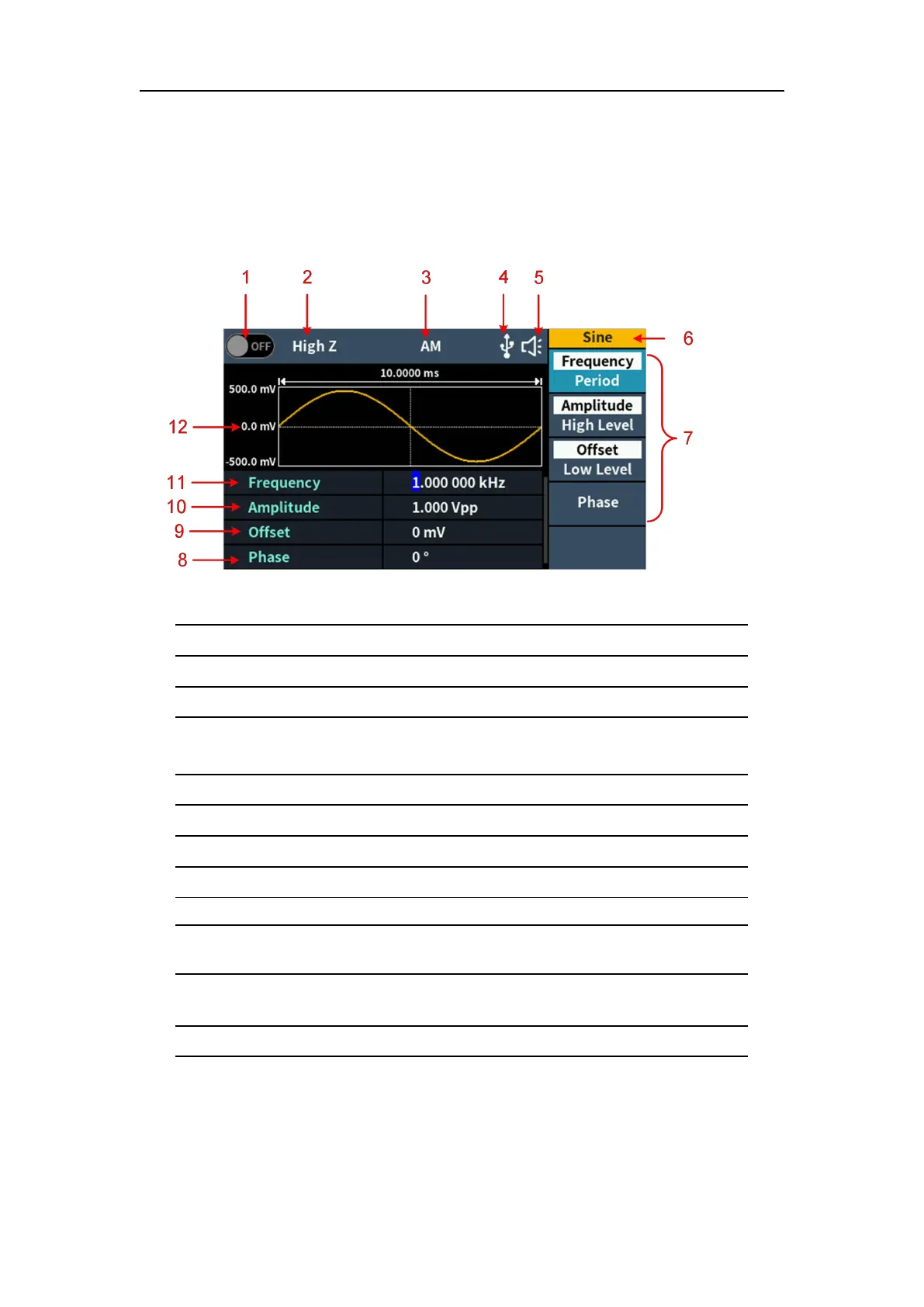

Figure 4- 3 User Interface
1
Display channel name.
2
Display load.
3
Current waveform mode.
4
Lights up the indicator when connected to the USB Host via
the USB DEVICE interface.
5
Buzzer.
6
Menu title.
7
Current waveform or mode setting menu.
8
Start phase.
9
Offset/Low level,depending on the right highlighted menu item.
10
Amplitude / High level, depending on the right highlighted
menu item.
11
Frequency/Period, depending on the highlighted menu item on
the right.
12
Display current waveform.
