Owon HDS242 Quick Guide

6
instrument can not work normally, or fails in the performance test, please get in
touch with our distributor responsible for this business or our local offices. If
there is damage to the instrument caused by the transportation, please keep
the package. With the transportation department or our distributor responsible
for this business informed about it, a repairing or replacement of the instrument
will be arranged by us.
4. How to Use the Oscilloscope
The Structure of the Oscilloscope
Front Panel and Keys
The front panel and keys of the oscilloscope are shown in Figure 4:
4
11
6
7
9
10
16
15
14
13
12
517
3
8
1
2

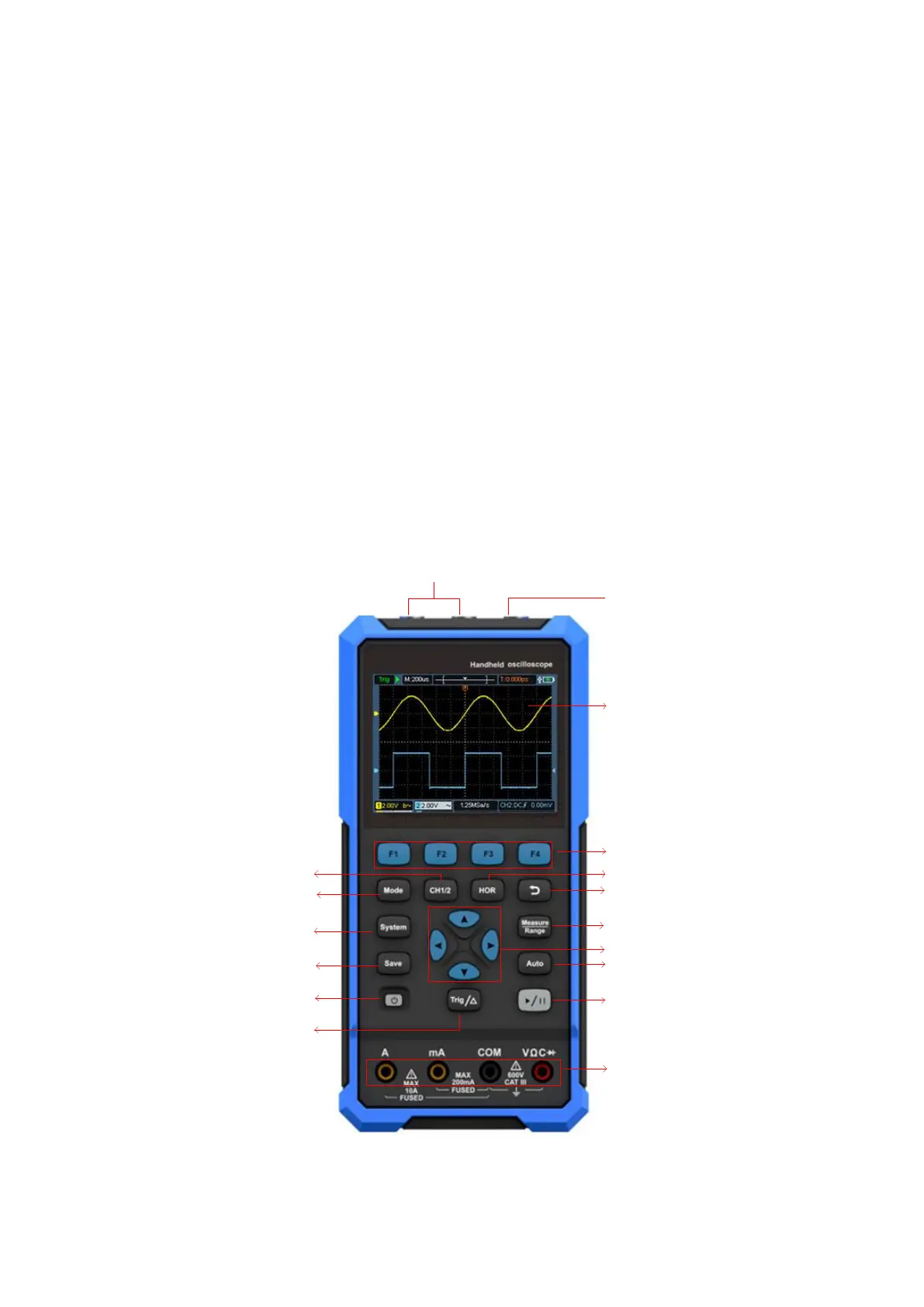

Figure 4: Front Panel of the Oscilloscope

Owon HDS242 Specifications

General

Channels	2
Bandwidth	40 MHz
Sample Rate	250 MSa/s
Multimeter Function	Yes
DMM Voltage DC	600 V
DMM Voltage AC	600 V
DMM Current DC	10 A
DMM Current AC	10 A
DMM Resistance	40 MΩ
DMM Diode Test	Yes
DMM Continuity Test	Yes
Interface	USB
Weight	1.5 kg
Battery	Lithium battery
Vertical Resolution	8 bit
DMM Capacitance	100 μF
Power Supply	100-240 V AC, 50/60 Hz
Memory Depth	8 kpts
