2.Quick Start
8
3
AC Mains Input
AC mains input connector.
1
3
2

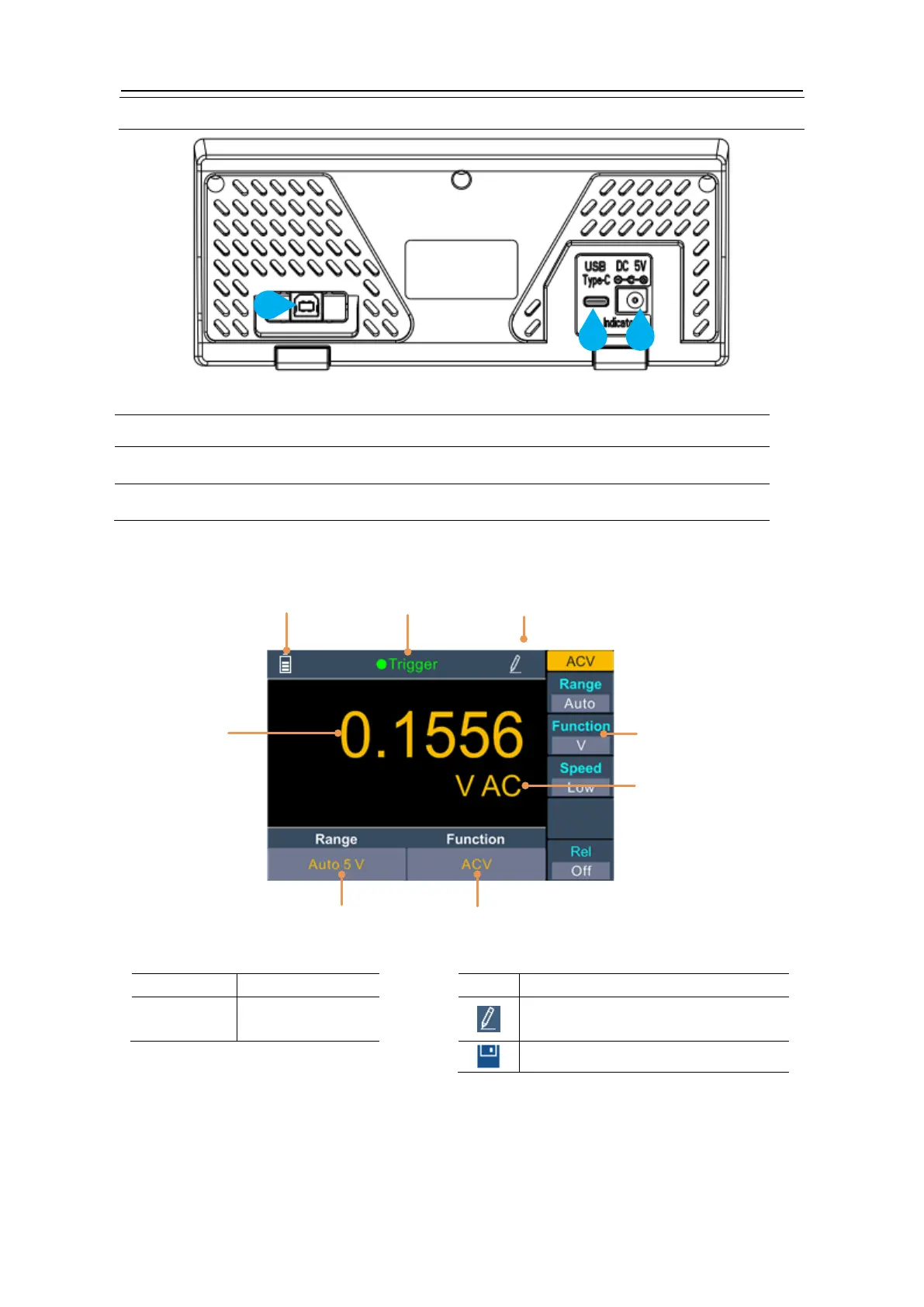

Figure 2-3 Rear panel overview （Take the AC power supply for instance ）
1
Communication interface
Connect the PC through this port.
2
USB Type -C port
DC mains input connector.
3
Mains Input
DC mains input connector.
User Interface
Trigger Mode
Reading
Range
Function
Operation Menus
Unit
Status Icon
Battery Status
Figure 2-4 User interface (Single display - Take the model with DC power supply for instance)
Note: The following screenshots take the model with AC power supply for
instance.
Trigger Mode
Status Icon
Display
Description
Trigger
Auto trigger
Icon
Description
Auto record function is running
Manual record
