3.Functions and Operations
6. Set the relative value.
Press the Rel softkey to turn on or off the relative operation. For relative operation,
the multimeter subtracts the pre-specified value of REL operation from the actual
measurement result and displays the result. See page 26, Relative Value.

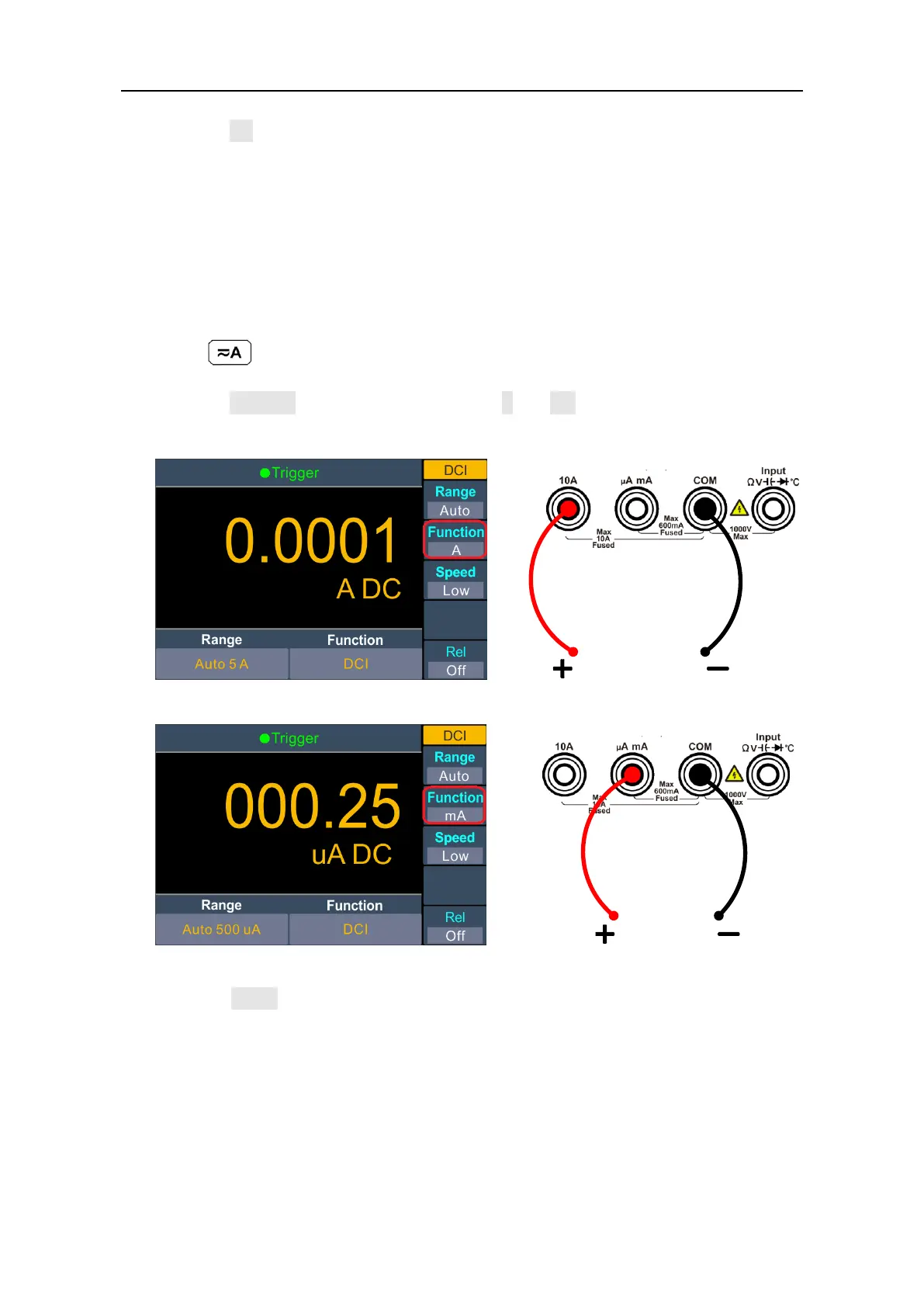

Measuring DC Current
This section describes how to configure DC current measurements.
Operating Steps:
1. Enable the DCI measurement.
Press on the front panel to enter DCI measurement mode.
2. Set the function.
Press the Function softkey to switch between A and mA.
3. When the Function is set as A, connect the test lead as below.
When the Function is set as mA, connect the test lead as below.
4. Set the range.
Press the Range softkey to set the range. Auto range automatically selects the range
for the measurement based on the input.
Note:
⚫ The multimeter uses two kinds of fuses for current protection: A 10A fuse is built
into the 10A input terminal for overcurrent protection, and a 600mA fuse is built
into the uAmA input terminal for overcurrent protection.
⚫ 10% over range for all ranges except 10 A range.
If the reading exceeds 10.5 A in 10 A range, "overload" will be displayed.
5. Set the measurement speed.
