Upper Bearing Block Assembly
Middle Bearing Block
Assembly
Lower Bearing Block
Assembly
OXY0035
Battery Tray
OXY0030
Main Frame
2 x TBES2X6
M2x6 Hex Cap
Screw Self Tapping
2 x TCEM2X4
Hex Cap
Screw M2X4
Break Away Canopy Assembly
10 x DR0268
Frame C
Washer M2
Boom Clamp
Assembly
OXY0029
Motor Mount
OXY0274
OXY3 Motor
Mount Stiffener
2 x TCEM2X6
Hex Cap Screw M2X6
Note: Add Loctite 243
Don't fully tighten yet.
Finalize tightening once pinion and
main gear mesh are adjusted.
4 x TCEM2X8
Hex Cap Screw M2X8
Note: Add Loctite 243
Don't fully tighten yet. See
assembly belt and tension
note page 23.
2 x DR1806
Aluminum Stifferner

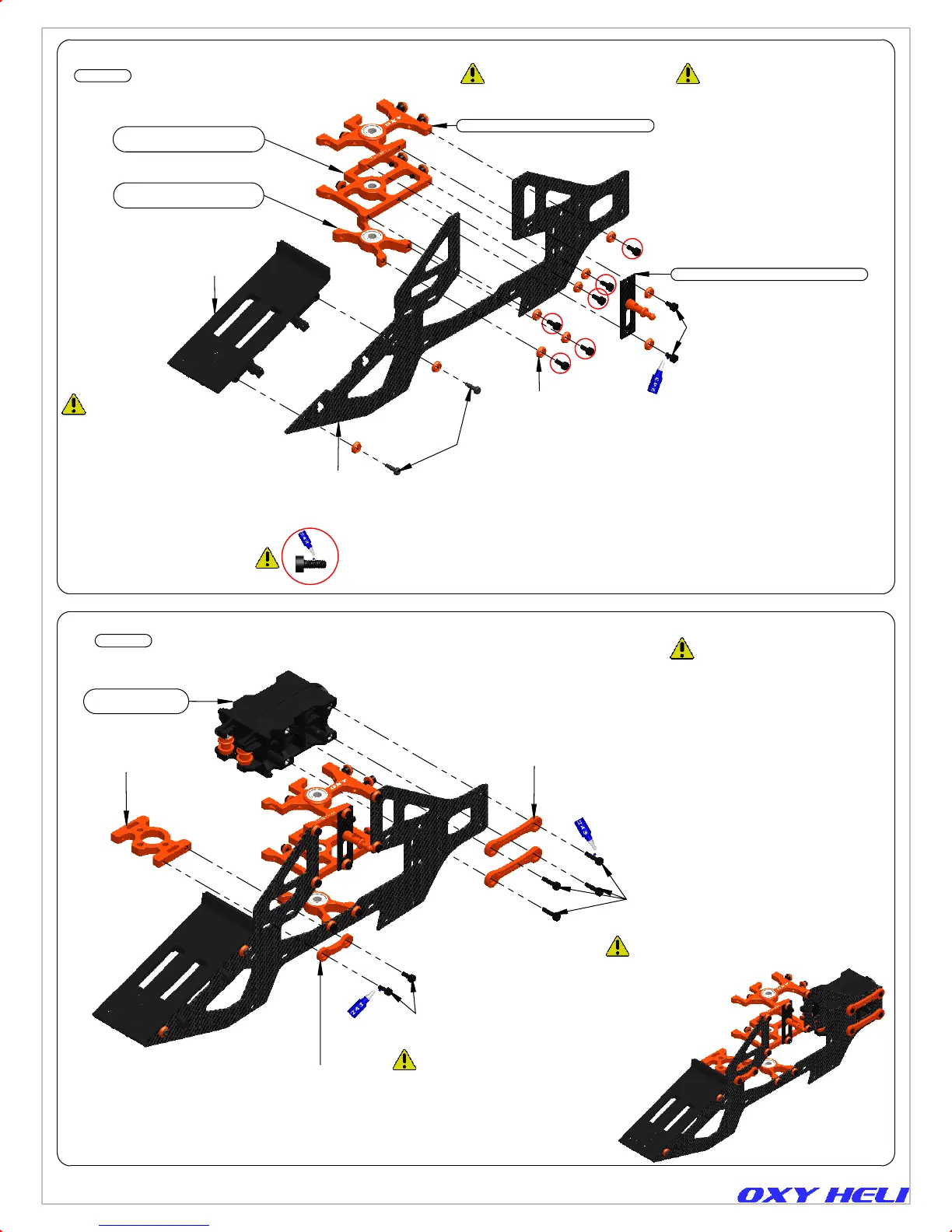

Step 02
Note: Screw come screwed into the
Boom Clamp and Motor Mount.
Main Frame Assembly.
(Carbon Fiber parts + Box 02 / Bag 6)
Note: Radial Bearing
open Face up
Note: Screw come screwed into
the 3 x Bearings Blocks.
6 x TCEM2X5
Hex Cap Screw M2X5
Note: Don't fully tighten yet.
See the assembly alignment
note page 14.
ESC assembly note:
In order to help the assembly
procedure, we suggest to
install ESC now.
Please refer to Manual page 17,
how to install the ESC.
Note: Radial Bearing
open Face up
Note: Radial Bearing
open Face down
Step 01
Main Frame Assembly.
(CNC components)
Page 11
Chapter 7, Carbon Frame
Instruction Manual Rev 1
