OXY0030
Main Frame
Break Away
Canopy Assembly
2 x TBES2X6
M2x6 Hex Cap
Screw Self Tapping
2 x TCEM2x4
Hex Cap Screw
M2X4
10 x DR0268
Frame C
Washer M2
OXY0274
OXY3 Motor
Mount Stifferner
2 x DR1806
Aluminum Stifferner
Page 12

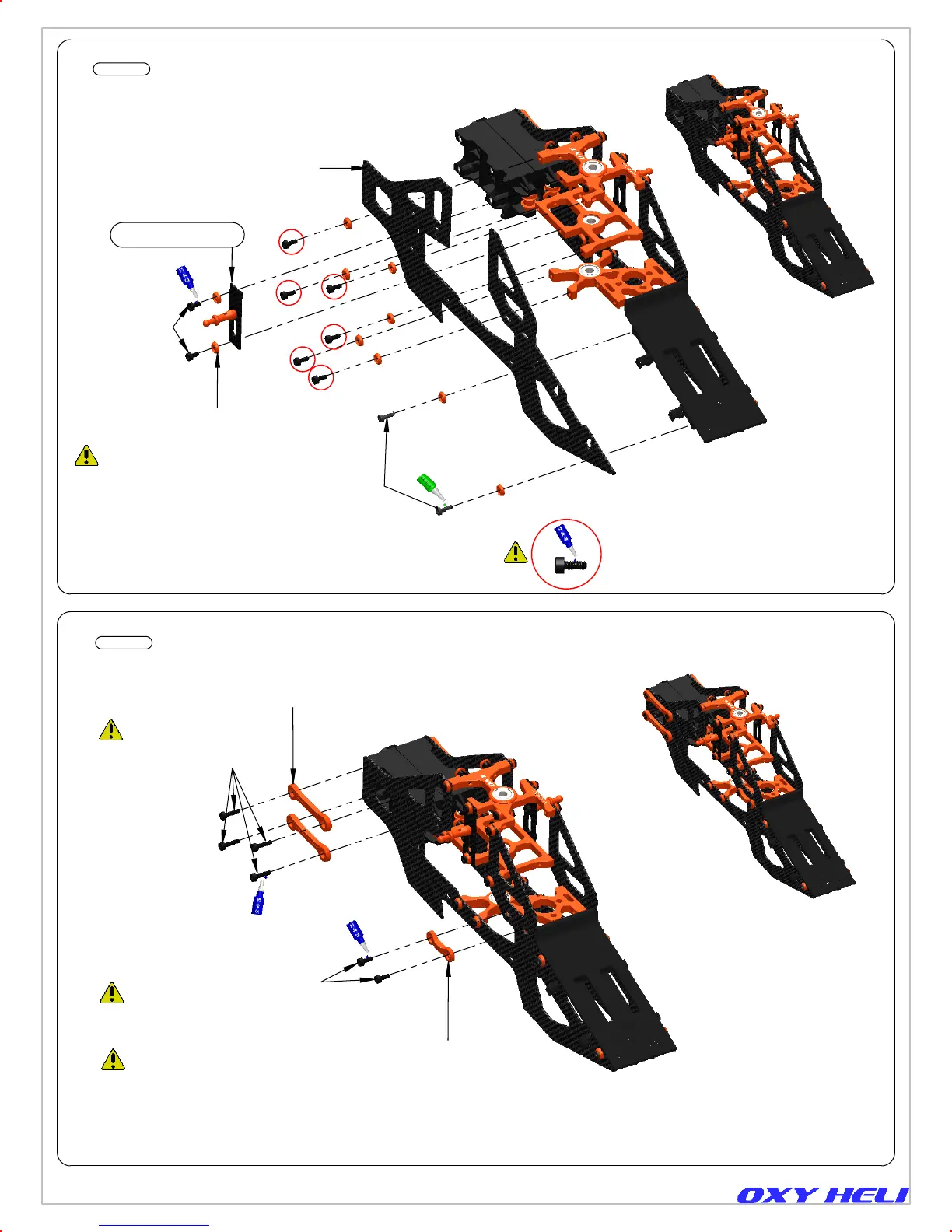

Main Frame Assembly
Step 04
Main Frame Assembly
Note: Screws come screwed
into the Boom Clamp and
Motor Mount.
Note: Screws come screwed
into the 3 x Bearings Blocks.
6 x Hex Cap Screw M2X5
Note: Don't fully tighten yet.
See assembly alignment note page 14.
Step 03
4 x TCEM2X8
Hex Cap Screw M2X8
Note: Add Loctite 243
Don't fully tighten yet.
See assembly belt and
tension note page 23.
2 x TCEM2X6
Hex Cap Screw M2X6
Note: Add Loctite 243
Don't fully tighten yet. Finalize
tightening once pinion and
main gear mesh are adjusted.
Chapter 7, Carbon Frame
Instruction Manual Rev 1
