TCEM2X6
Hex Cap Screw M2X6
OXY0137
Washer 3.1x5x0.6
OXY0007
Hardened Steel Spindle Shaft
OXY0079
Damper Bushing
OXY0110
Rubber Damper
OXY0081
2.1x5.5x1 Washer
OXY0054
Shim 3x4x0.1
see note Fine
Adjust Shims
OXY0005
Center Hub
F3-8G_X
Thrust Bearing 3x8 h3.5
Thin (Larger ID)
Thick (Smaller ID)
OXY0054
3x4x0. 1 Shim Washer
2 x MR83_ZZ/W2.5
Radial Bearing 3X8X2.5
2 x OXY0008
Main Grip
Page 23
Head Assembly.
(CNC components)

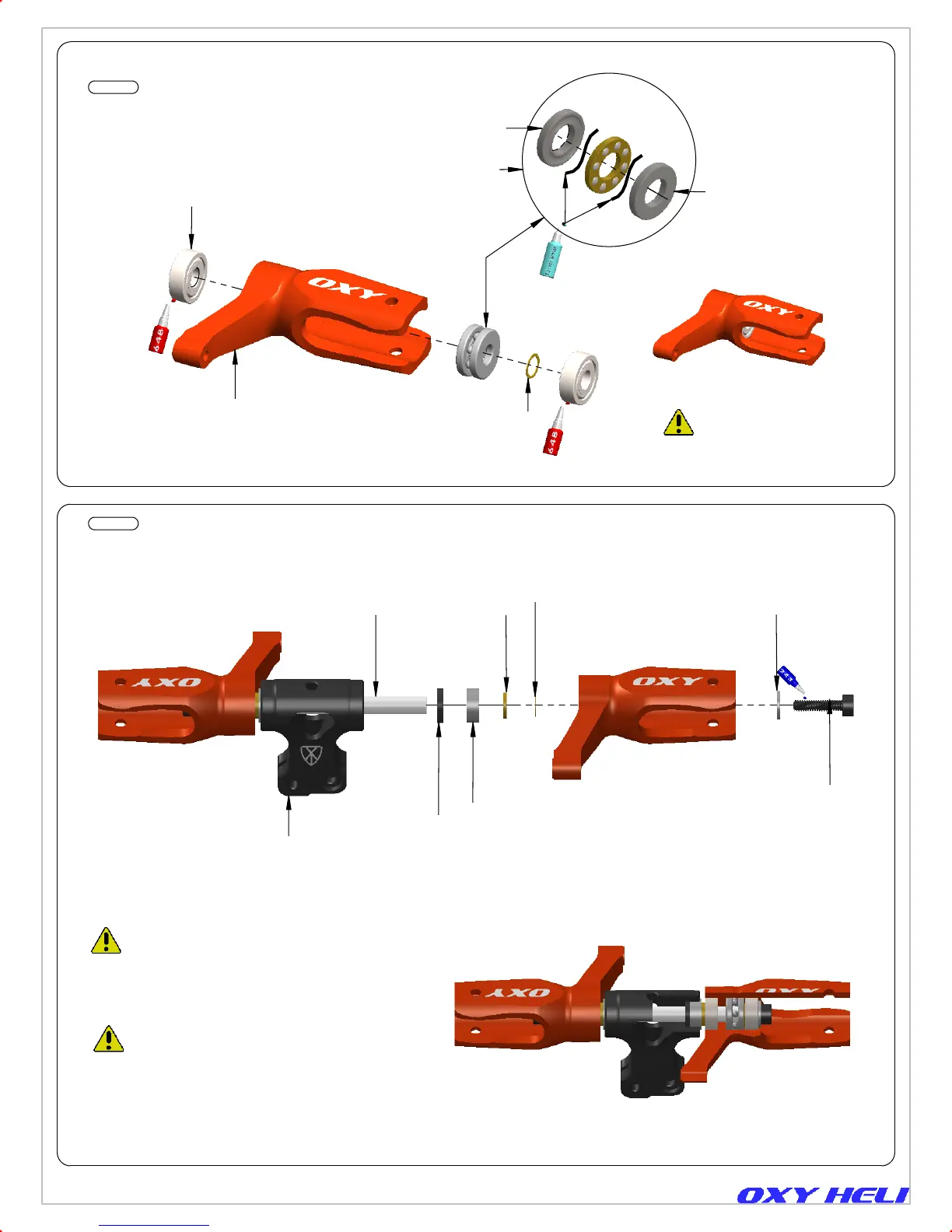

Step 1
Fine Adjust Shims:
In order to give fine adjustment options,
the extra Hardware Bag contains extra
Shims 3x4x0.1. Start assembly with factory
pre installed shims. If the Main Grips have
sideway play, add shims as required.
Each Grips must have the same number
of shims. If you add one shim on the left
side, you need to also add one shim on
the right side.
Important Note:
This part comes pre assembled
WITHOUT thread lock. Follow
the instruction for final assembly.
Step 2
Important Note:
This part, for tuning reasons,
comes factory pre assembled
with grease and loctite. It is
ready to use.
Chapter 15, Head Assembly
Instruction Manual Rev 1
