2 x OXY0020
M1.2x2 Special
Screw
OXY0015
Upper Swash
Plate
Step 1
5 x OXY0019
Inner Swash
Plate inkage Ball
OXY0018
2x11.5 Antirotation
Pin
Important Note:
This part, for tuning reasons, comes factory
pre assembled with loctite. It is ready to use.
Swivel Ball Note:
The Swivel Ball is pre-assembled with a
precise fitting. When new, the Swash Plate
center ball will have a little friction. After a
few flights and “break-in” it will come smooth,
keeping the best precision without play.
2 X OXY0111
M1.6x3 Button Head Screw
DR0605
DFC Arm Spacer
MF682ZZ
2x5x2.3 Flange Bearing
DR0604
DFC Rod Short
OXY0011
4mm-Linkage Ball
DR1255
DFC Arm
Ref 35.4 mm
Page 24

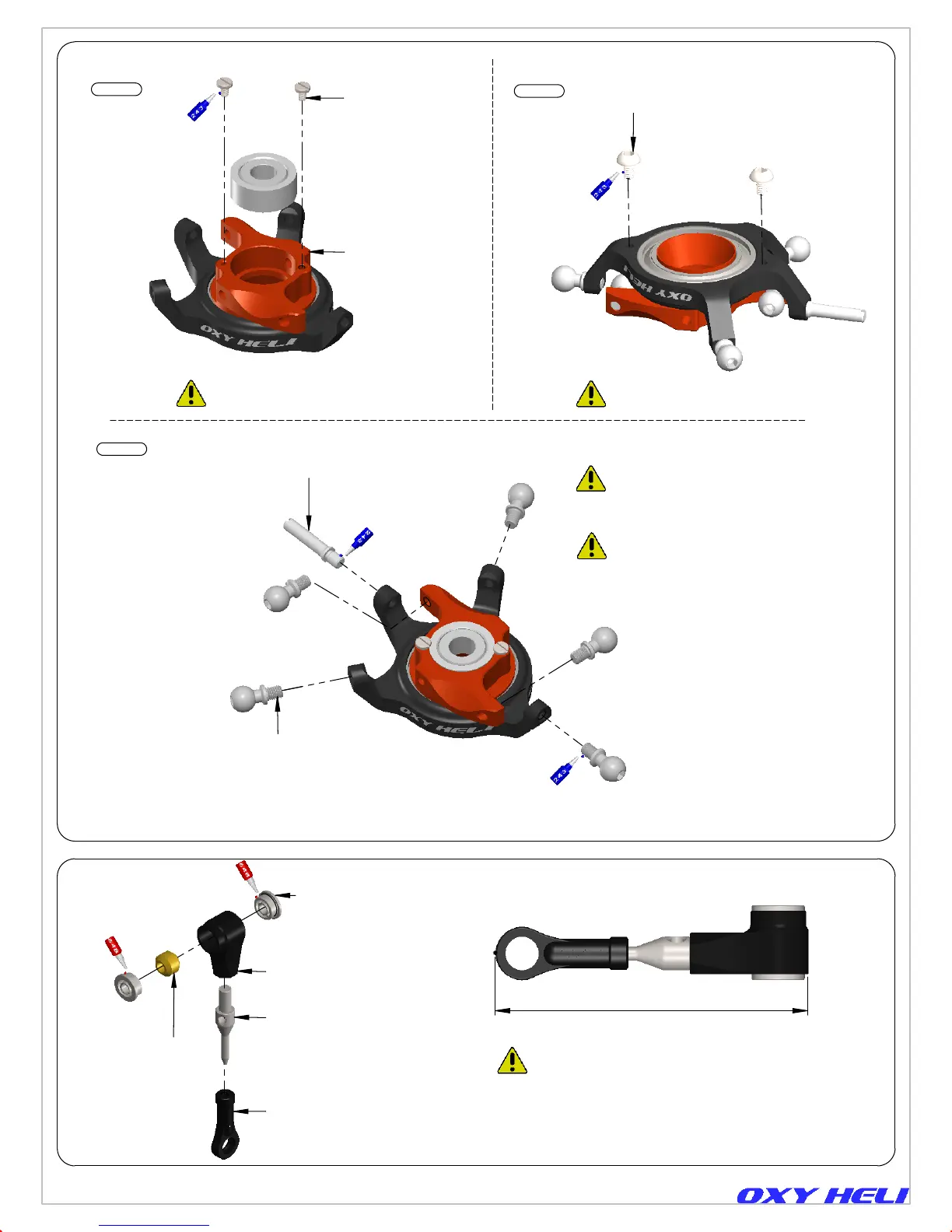

DFC Arm Assembly.
Swash Plate Assembly.
(CNC components)
The Oxy Plastic ball links have a logo to give you
information about turn adjustment, but have a
symmetrical ball socket shape and can be installed
in either direction to achieve the best fine tuning.
Important Note:
This part, for tuning reasons, comes factory
pre assembledwith loctite. It is ready to use.
Important Note:
This part comes pre assembled WITHOUT
thread lock. Follow the instruction for final
assembly.
Step 2
Step 3
Chapter 15, Head Assembly
Instruction Manual Rev 1
