A
OXY0076
M2X10 Shoulder
Hex Cap Screw
SLNM2
Self Lock Nut M2
2 x TCEM2X6
M2x6 Hex cap screw
DETAIL A
Special lock nut socket
OXY0077
M2X14 Shoulder
Hex Cap Screw
DFC Arm
OXY0055
2x3.5x0.5 Shim Washer
Page 25
Step 4
Once you finish assembly, ensure
the DFC Arms can rotate without
friction. If the DFC Arms are assembled
correctly, rotation should be smooth
and without friction. In case of any
friction, recheck each component
and re-assembly as necessary.
Note: Tighten these two screws with
similar toque. Tighten each slowly in turn
in a criss-cross manner to similar torque.

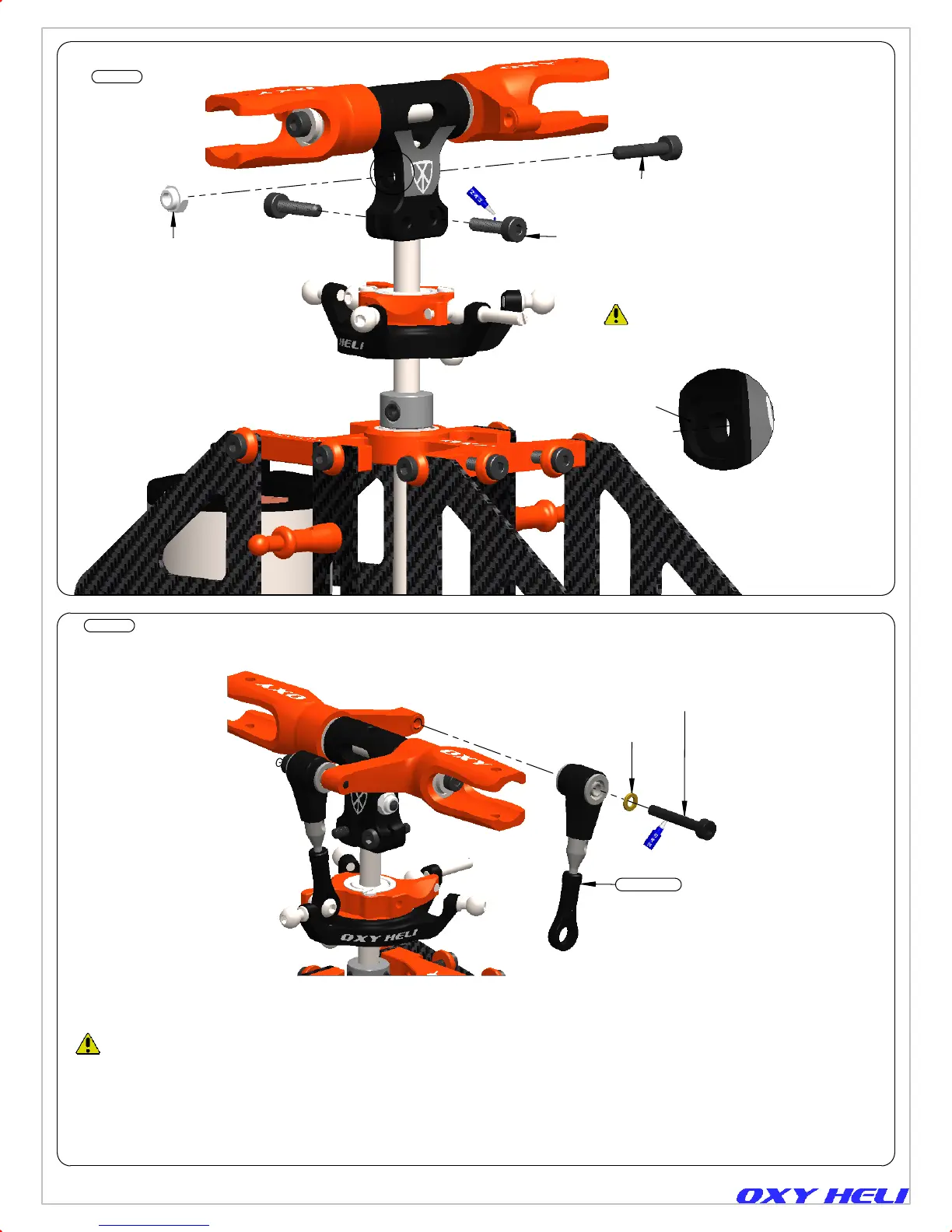

Head Assembly.
Step 3
Chapter 15, Head Assembly
Instruction Manual Rev 1
