OXY0071
Bearing Bushing
2 x MR52-W2.5
Radial Bearing
3X6X2.5
TBEM2X3
Button Hex Cap
Screw M2X3
TBEM2X6
Button Hex Cap
Screw M2X6
2 x MF682ZZ
Flange Bearings
2x5x2.3
OXY0058
Bell Crank Arm
2 x TBEM2X5
Button Hex Cap
Screw M2X5
DR1717
Tail Case
Bearing Block
MF73ZZ
Flange Bearing
3x7x3
DR1715
Vertical Fin Block
MR73ZZ
3X7X3 Radial
Bearing
DR1716
Tail Case - Bearing Bushing
DR1688
Aluminum Tail
Bell Crank
OXY0043
4x2 linkage ball
2 x OXY0057
Tail Pin Screw
2 x TBEM2X5
Button Hex
Cap Screw
M2X5
TBEM2X5
Button Hex Cap
Screw M2X5
Pre tentioner Belt
Pulley Assembly
Bell Crank
Arm Assembly
2 x TBEM2X5
Button Hex Cap
Screw M2X5

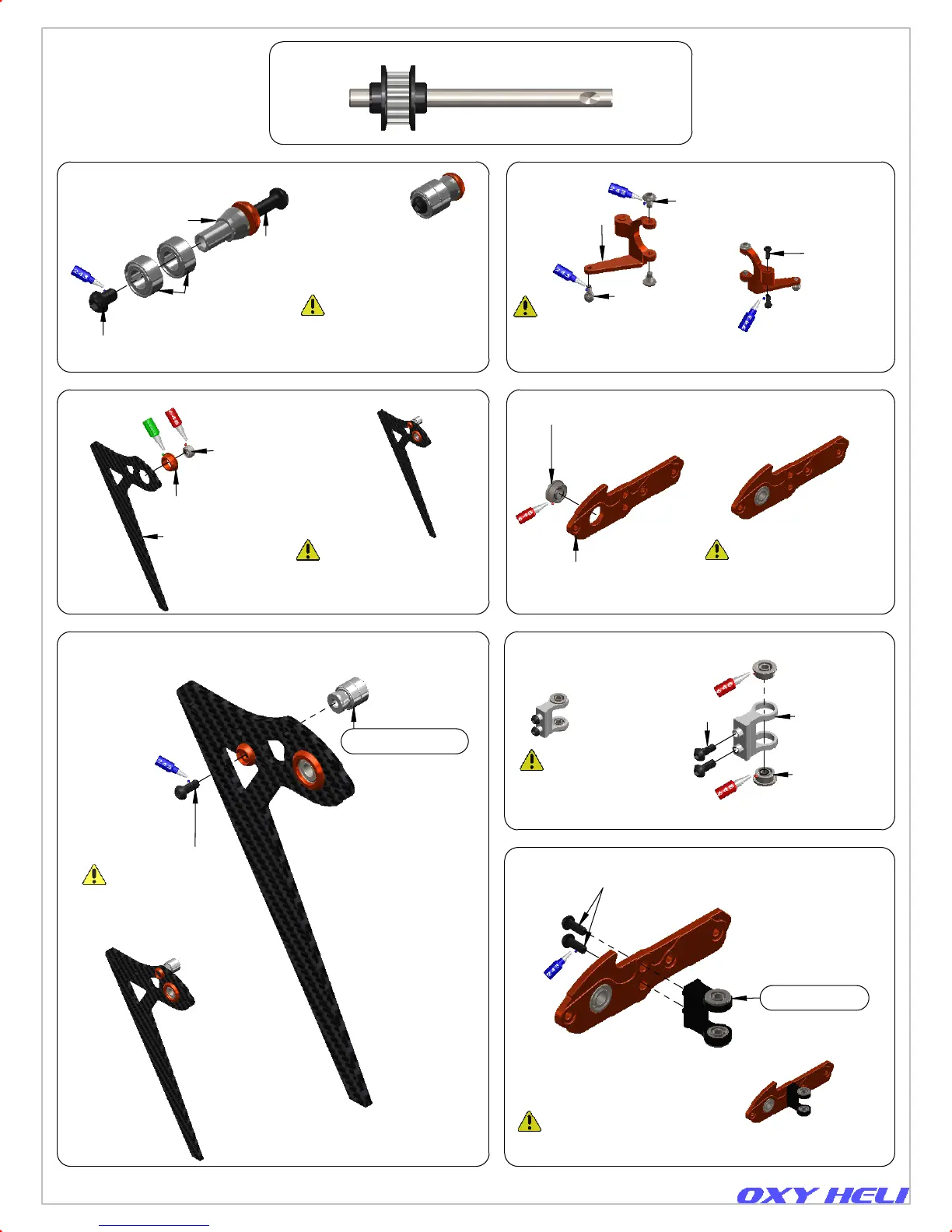

Vertical Fin Assembly.
(Carbon Fiber parts)
15T Pulley - Tail Shaft Assembly ready to use.
(CNC components)
Page 6
Pre Tentioner Belt Pulley Assembly.
(Box 02 / Bag 2)
Tail Bell Crank Assembly.
(Box 02 / Bag 3)
Bell Crank Assembly.
(Box 02 / Bag 3)
Bell Crank Arm Assembly.
Important Note:
This part comes pre assembled
WITHOUT thread lock. Follow
the instruction for final assembly.
Important Note:
This part, for tuning reasons,
comes factory pre assembled
with loctite. It is ready to use.
Note: screws come screwed
into the Bell Crank Arm
Important Note:
This part comes pre assembled
with CA superglue and is ready
to use.
Tail Case Plate Assembly.
(Carbon Fiber parts)
Important Note:
This part comes pre assembled
with Loctite and is ready
to use.
Important Note:
This part comes pre assembled
WITHOUT thread lock. Follow
the instruction for final assembly.
Pre Tensioner Belt Pulley Assembly.
Note: screw come
pre assembled into
Pre Tensioner Belt Pulley
Chapter 5, Tail Assembly
Instruction Manual Rev 1
