OXY0072
Tail Case Spacer
6 x TCEM Hex Cap
Screw M2X5
OXY0054
Shim 3x4x0.1
see note Fine Adjust Shims
B
Page 8
DR0948-A_450X-Tail Belt
Stretch - B424MXL
OXY0073
Tail Case Center
DR1718 - Square
Boom 11X14X0.5
OXY0072
Tail Case Cover
3 X DR0268
Frame C Washer M2
Tail Hub Assembly
Tail Pitch Slider
Assembly
SCM3X3
Set Screw
M3X3
Tail Hub Assembly
2 x TBEM2X5
Button Hex Cap
Screw M2X5
Tail Bell Crank
Assembly
Step 1 Step 2
Step 1 Step 2

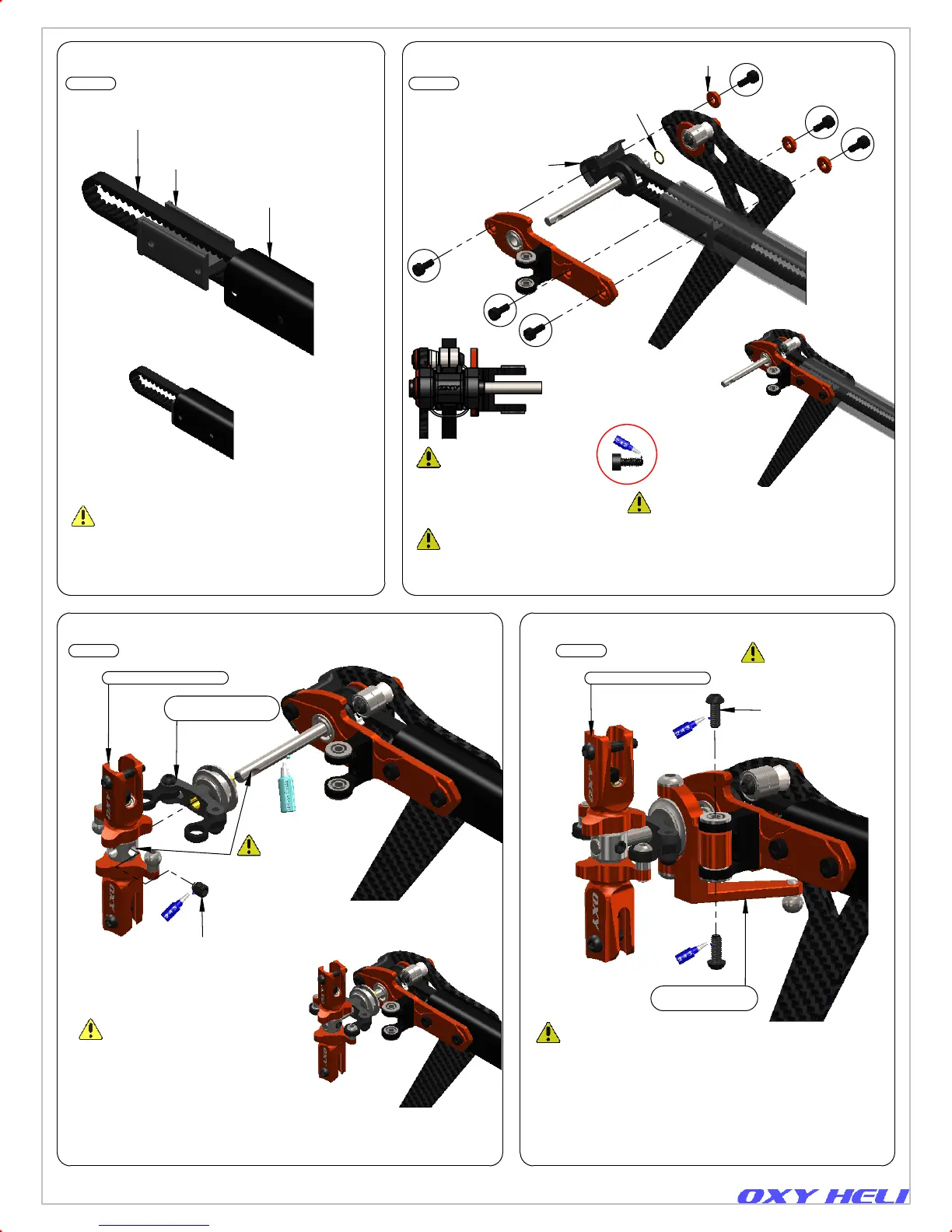

Tail Case Assembly.
Tail Case Assembly.
Note: screw come screwed
into the Tail Boom & Tail Case
Spacer.
Tail Assembly.
Note: Set Screw comes
screwed into the Tail Hub.
Note: Screws come
screwed into the
Tail Bell Crank
Important Note:
Once you finish assembly,
check the system can slide and move without friction.
If tail system is assembled correctly, it should move
smoothly and without play. In case of friction or play
recheck each single component and re-assembly as
required. If necessary adjust the position of the Bell
Crank Arm. A common mistake would be allowing
loctite to contaminate the bushing and plastic in step 2.
Note: Line up
the holes so
the set screw
seats correctly.
Page 7
CNC component
Box 02 / Bag 4
( )
Remove the tail case center from the boom,
and then feed the belt through the boom.
Try not to tightly bend the belt. We suggest
using a length of wire or similar to pull the
belt through the boom.
Note: Tail case spacer is not
symmetrical, after finising this
step Oxy logo's position
as shown
Tail Assembly
OXY0054
Shim 3x4x0.1
see note Fine Adjust Shims
Fine Adjust Shims:
In order to give fine adjustment options,
in the Extra Hardware Bag you will find
extra shims 3x4x0.1 Start assembly without
shims. If the Tail Assembly has sideways play,
add shims as required, to one side, as shown.
Chapter 5, Tail Assembly
Instruction Manual Rev 1
