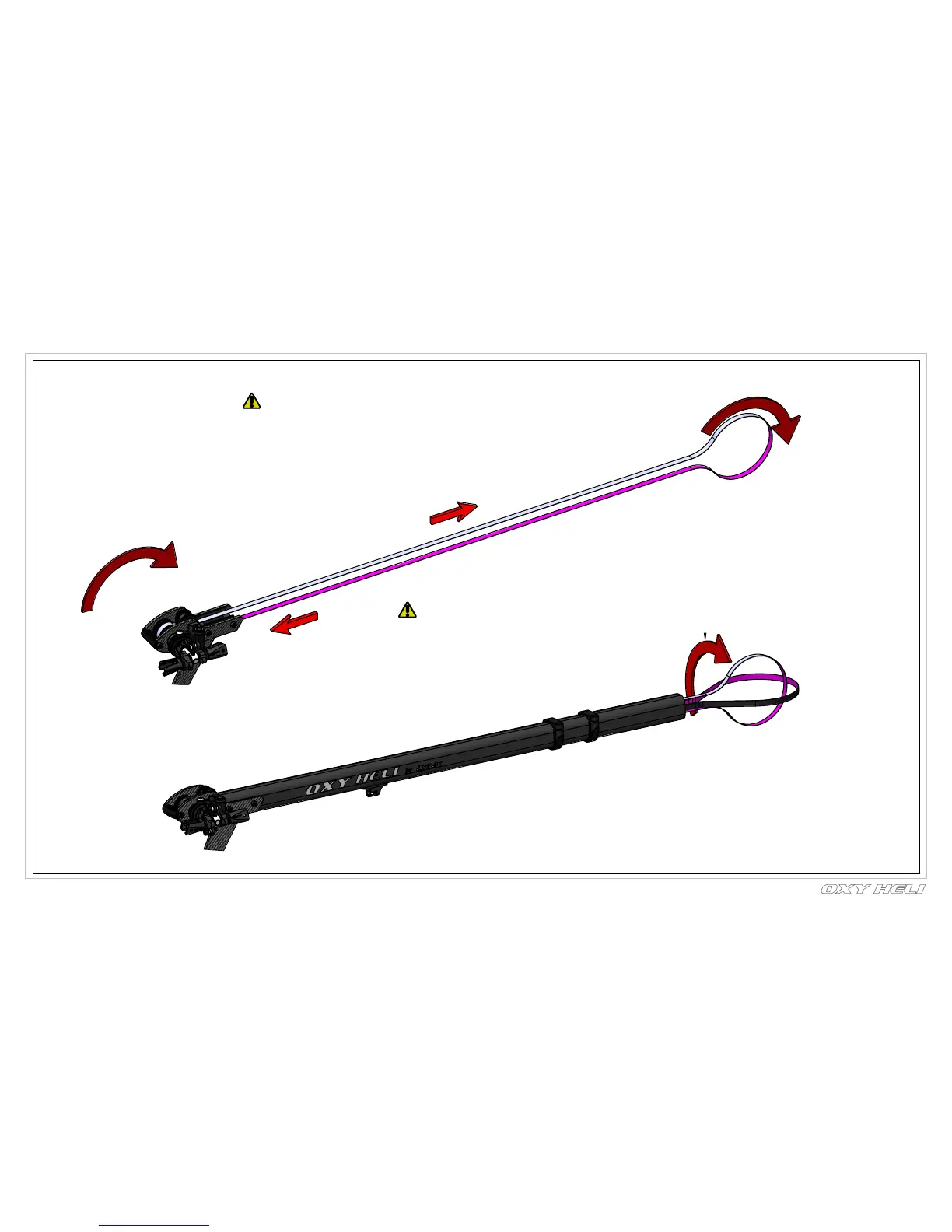

TAIL BELT ASSEMBLY AND DIRECTION CHEK:
In order to check correct belt install,
move belt position A CW and
the position B must rotate CW.
Before go forward on Tail Assembly check carefully
if Belt is installed per need.
Belt MUST move without any friction.
A
B
Step 5-1:
Tail belt is showed straight coming out,
form tail boom. Be careful to
check the belt if not twisted inside the boom.
Use a flashlight to check inside the boom, for better vision.
Rotate the belt 90 degrees CCW as shown.
90 CCW Rotation.
page 13
Chapter 6: Tail Assembly
