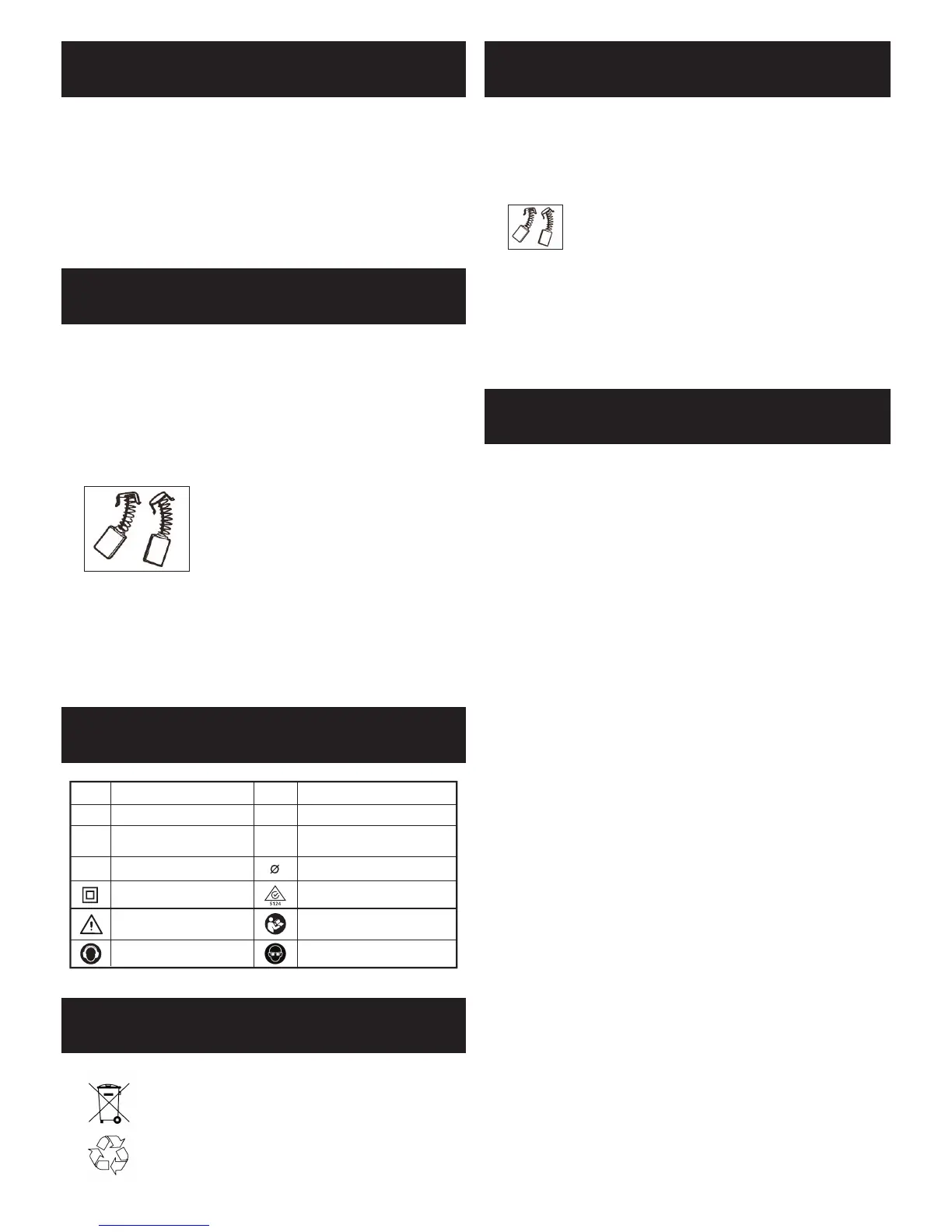

Ozito HDR-5000 - Troubleshooting; Maintenance; Spare Parts; Description of Symbols

Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.
Excessive sparking visible through the housing air vents
and/or the drill failing to operate
May indicate the carbon brushes have worn out and need to be
replaced.Carbonbrushesshouldonlybereplacedbyaqualied
electrician or power tool repairer.
Gear selection dial will not rotate
Manually rotate the chuck to realign the gears then try to turn the gear selection
dial again.
MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recyclingpackagingreducestheneedforlandllandrawmaterials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
• Keep the vents on the drill clean at all times, if possible, prevent foreign matter
from entering the vents.
• After each use, blow air through the drill housing to ensure it is free from all
dust particles which may build up. Build up of dust particles may cause the
drill to overheat and fail.
• If the enclosure of the drill requires cleaning, do not use solvents. Use a moist,
soft cloth only. Never let any liquid get inside the drill; never immerse any part
of the drill into a liquid.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
serviceagentorsimilarlyqualiedpersonsinordertoavoidahazard.
Carbon Brushes
When the carbon brushes wear out, the drill will
spark and/or stop. Discontinue use as soon as this
happens. Carbon brushes should be replaced prior
to recommencing use of the drill. They are a wearing
component of the drill and therefore not covered
under warranty. Continuing to use the drill when
carbon brushes need to be replaced may cause permanent damage to the drill.
Carbon brushes will wear out after many uses. When the carbon brushes need
to be replaced, take the drill to an electrician or a power tool repairer for a quick
and low cost replacement. Always replace both carbon brushes at the same
time.
Note: Ozito Industries will not be responsible for any damage or injuries
caused by the repair of the drill by an unauthorised person or by mishandling
of the drill.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: enquires@ozito.com.au
SPARE PARTS
Keyed Chuck SPHDR5000-02A
Carbon Brushes SPHDR5000-45
Side Handle Assembly SPHDR5000-56A
Switch SPHDR5000-59
Chuck Key SPHDR5000-66
OPERATION (cont.)
Helpful Tips
When drilling hard, smooth surfaces, use a centre punch to mark the desired
hole location. This measure will prevent the drill bit from slipping off centre as
you start the hole. Alternatively, the variable speed feature allows you to start
holes without centre punching. To accomplish this, operate the drill at a low
speed until you start the hole.
When drilling metals, use light oil on the drill bit to keep it from overheating. The
oil will prolong the life of the bit and increase drilling action.
If the bit jams in the work piece or if the drill stalls, stop the tool immediately.
Remove the bit from the work piece and determine the reason for jamming.
Warning
Read instruction manual
Wear eye protection
Double insulated
/min Revolutions or
reciprocation per minute
no No load speed
V Volts Hz Hertz
~ Alternating current W Watts
bpm
Impact rate
Diameter
Regulator compliance mark
Wear ear protection
