ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

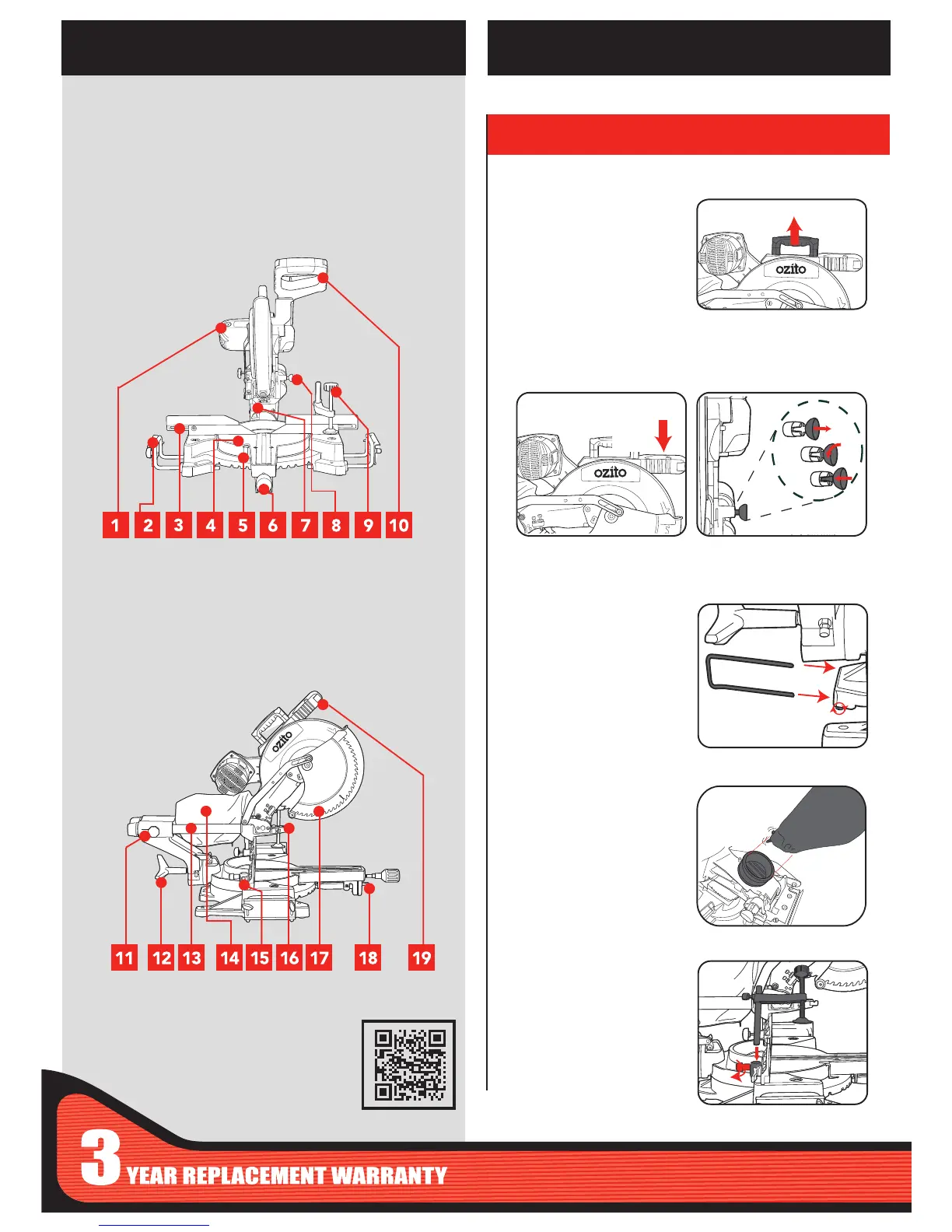

1 Brush Cap
2 Material Support Bar
3 Fence
4 Mitre Table
5 Mitre Angle Pointer
6 Mitre Table Lock
7 Bevel Angle Pointer
8 Lock Down Pin
9 Material Clamp
10 Ergonomic “D” Handle
MITRE SAW
KNOW YOUR PRODUCT
1. ASSEMBLY
1. Remove foam
packaging materials and
using the carry handle,
carefully lift the mitre
saw from its box and
place it on a level work
surface
1. Fits over the dust
extraction port.
1. Can be mounted to the
fence, either the left or
right hand side.
2. Tighten screw on fence to
secure in place.
1. Insert stabilising bar into
the two holes located
on the rear of the base.
Tighten screw when in
place.
2. Release cutting head from its transport position. While holding the
head of the saw down release the lock down pin.
11 Slide Lock
12 Bevel Lock Knob
13 Dual Rail Slide Bar
14 Dust Bag
15 Fence Lock
16 Trenching Stop
17 Retractable Safety Guard
18 Mitre Release Lever
19. Trigger Lock
SETUP & PREPARATION
Unpacking
Stabilising Bar
Dust Bag
Material Clamp
