©2013 PACE Worldwide, Southern Pines, North Carolina All Rights Reserved Page 6 of 18

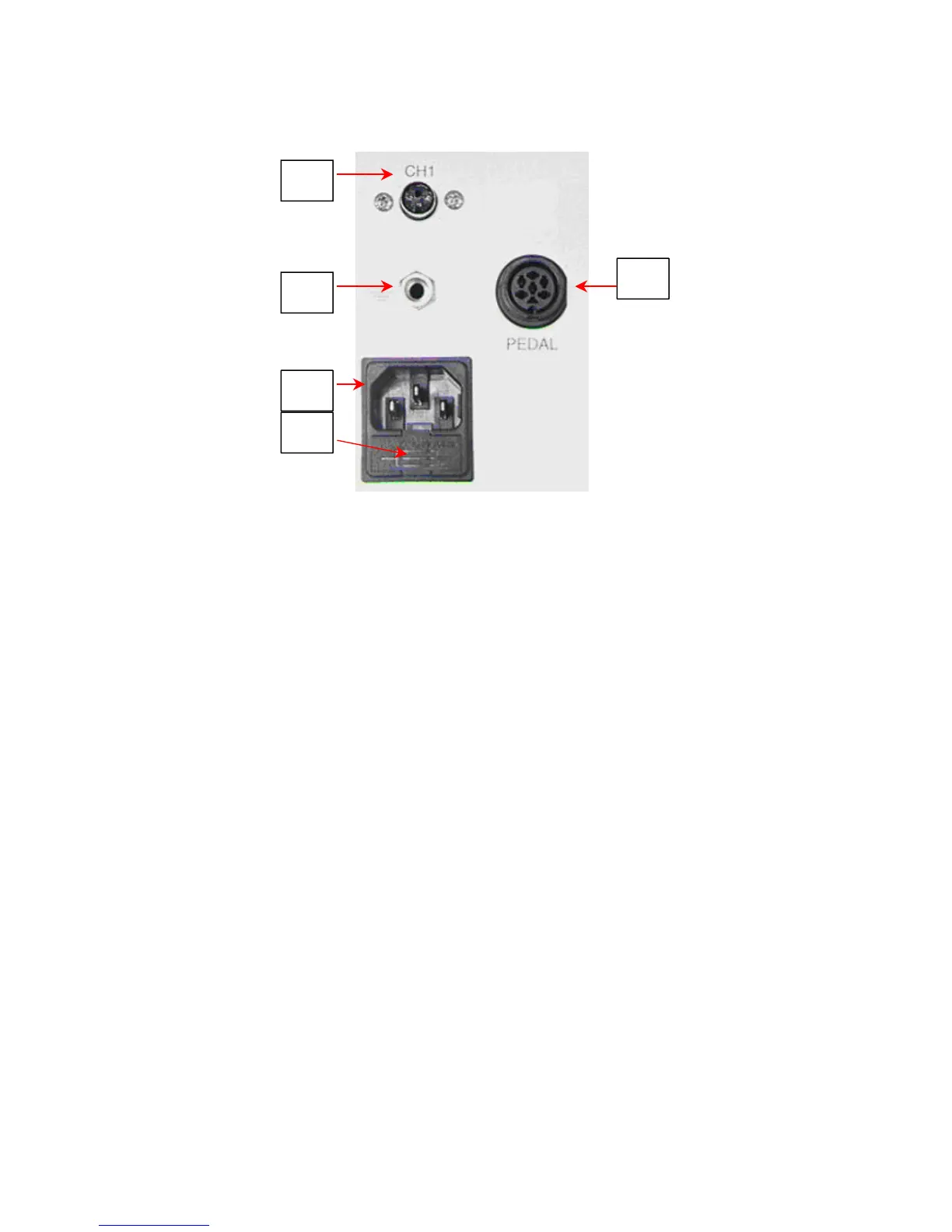

Figure 2
11.
INSTANT-SETBACK CUBBY INPUT CHANNEL 1. Links handpiece on channel 1 to Instant-Setback
Cubby. For use with TD-100 handpiece only.
12.
EARTH GROUND RECEPTACLE - Provides positive earth ground to which a ground cable can be
connected from the work piece or work surface as part of a static control program.
13.
AC POWER RECEPTACLE / FUSE HOLDER - Receptacle for providing power to the system from
AC outlet through power cord. Location of Fuse (F1), which protects system from over current conditions.
14.
FUSE - Provides overload protection for system.
15.
FOOT PEDAL RECEPTACLE - Input for Foot Pedal (optional), which activates vacuum or pressure
to the air-operated handpieces.
11
12
15
13
14
