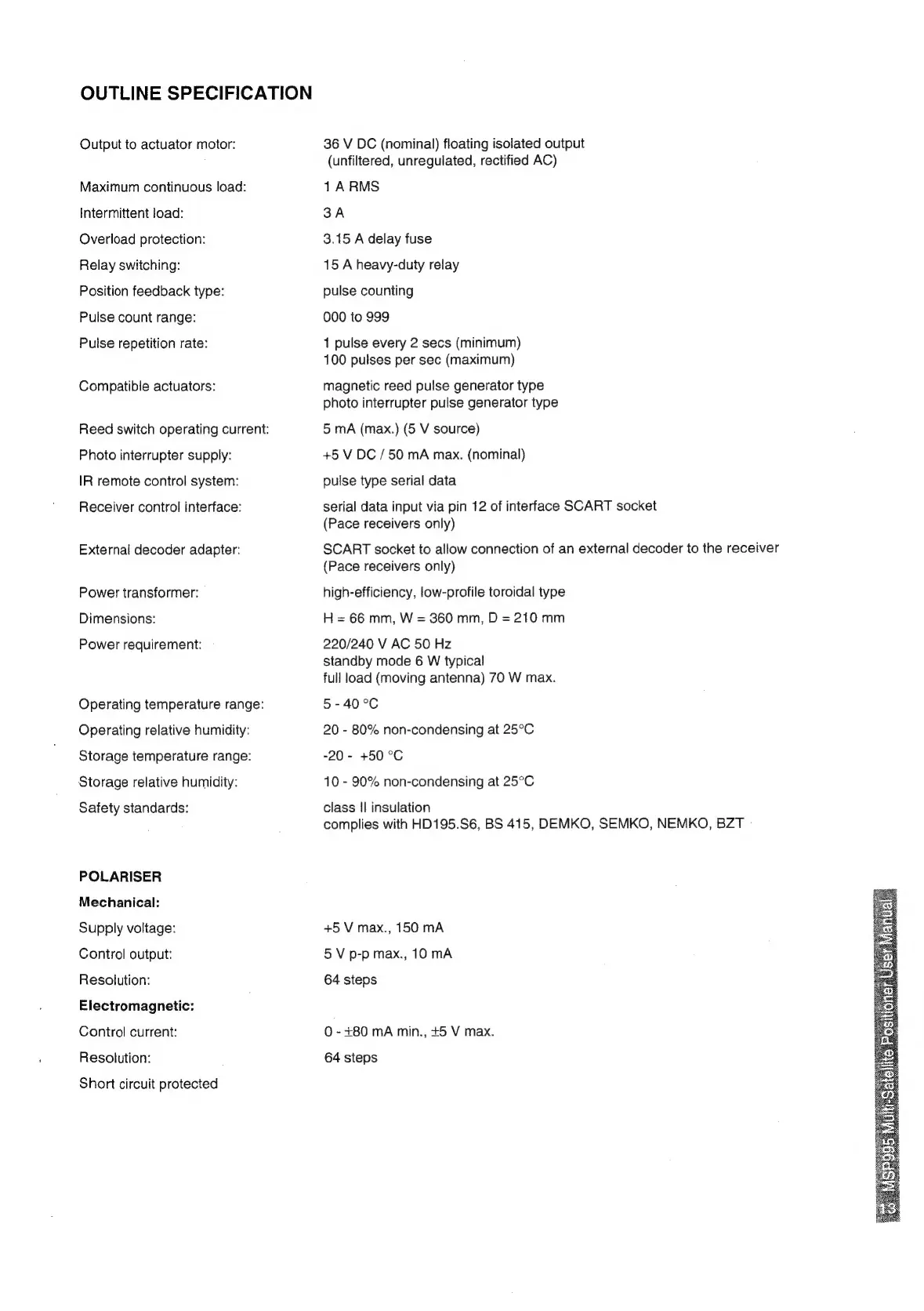

OUTLINE SPECIFICATION
Output to actuator motor:
Maximum continuous load:
Intermittent load:
Overload protection:
Relay switching:
Position feedback type:
Pulse count range:
Pulse repetition rate:
Compatible actuators:
Reed switch operating current:
Photo interrupter supply:
IR remote control system:
Receiver control interface:
External decoder adapter:
Power transformer:
Dimensions:
Power requirement:
Operating temperature range:
Operating relative humidity:
Storage temperature range:
Storage relative humidity:
Safety standards:
POLARISER
Mechanical:
Supply voltage:
Control output:
Resolution:
Electromagnetic:
Control current:
Resolution:
Short circuit protected
36 V DC (nominal) floating isolated output
(unfiltered, unregulated, rectified AC)
1 ARMS
3A
3.15 A delay fuse
15 A heavy-duty relay
pulse counting
000 to 999
1 pulse every 2 secs (minimum)
100 pulses per sec (maximum)
magnetic reed pulse generator type
photo interrupter pulse generator type
5 mA (max.) (5 V source)
+5 V DC / 50 mA max. (nominal)
pulse type serial data
serial data input via pin 12 of interface SCART socket
(Pace receivers only)
SCART socket to allow connection of an external decoder to the receiver
(Pace receivers only)
high-efficiency, low-profile toroidal type
H = 66 mm, W = 360 mm, D=210 mm
220/240 V AC 50 Hz
standby mode 6 W typical
full load (moving antenna) 70 W max.
5 - 40°C
20 - 80% non-condensing at 25°C
-20- +50 °C
10 - 90% non-condensing at 25°C
class || insulation
complies with HD195.S6, BS 415, DEMKO, SEMKO, NEMKO, BZT
+5 V max., 150 mA
5 V p-p max., 10 mA
64 steps
0 - +80 mA min., +5 V max.
64 steps
