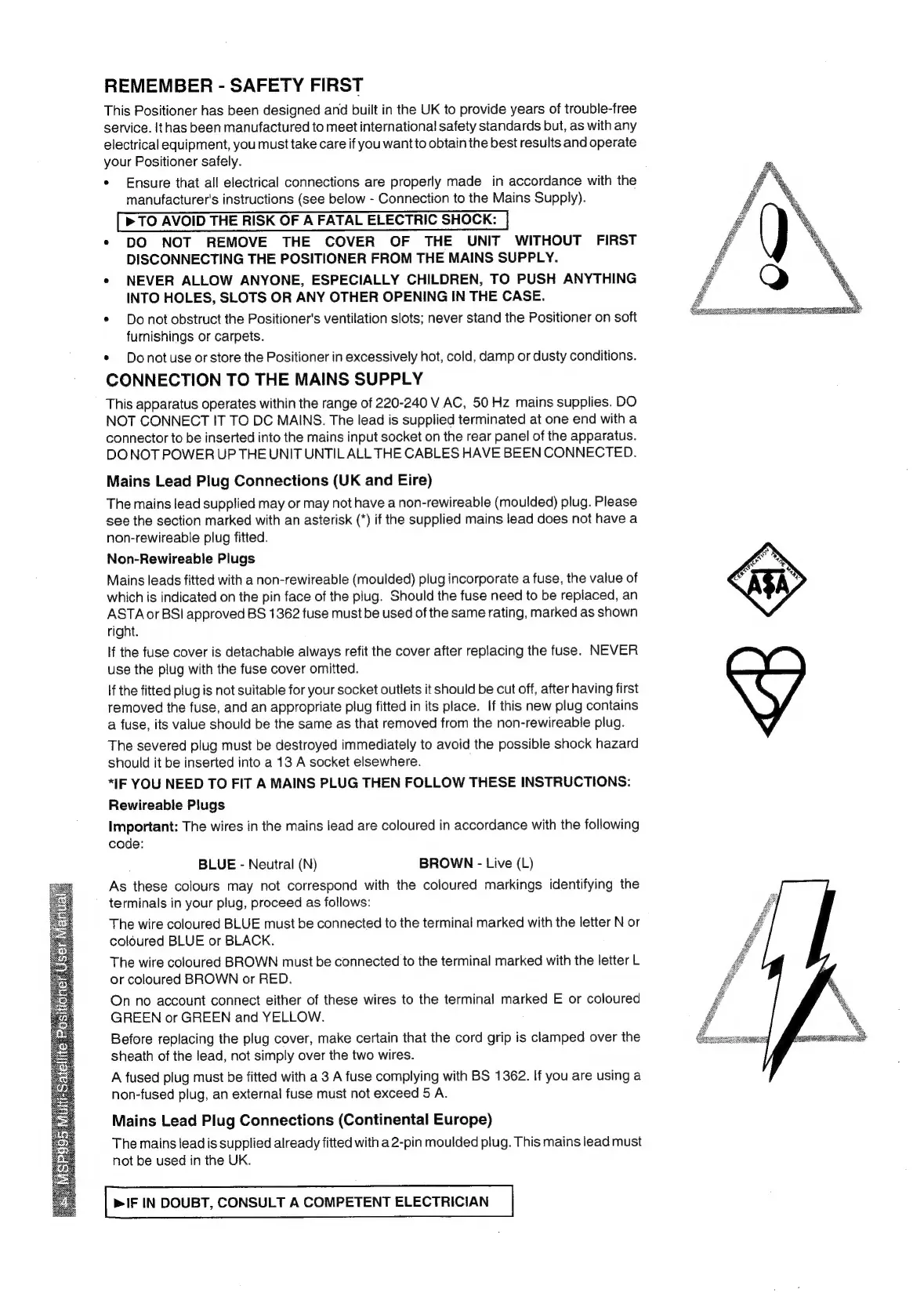

REMEMBER - SAFETY FIRST
This Positioner has been designed and built in the UK to provide years of trouble-free
service.
Ithas
been
manufactured
to
meet
international
safety
standards
but,
as
with
any
electrical
equipment,
you
must
take
care
if
you
want
to
obtain
the
best
results
and
operate
your Positioner safely.
¢
Ensure
that
all
electrical
connections
are
properly
made
in
accordance
with
the
manufacturer's
instructions
(see
below
-
Connection
to
the
Mains
Supply).
> TO AVOID THE RISK OF A FATAL ELECTRIC SHOCK:
*
DO
NOT
REMOVE
THE
COVER
OF
THE
UNIT
WITHOUT
FIRST
DISCONNECTING THE POSITIONER FROM THE MAINS SUPPLY.
¢ NEVER ALLOW ANYONE, ESPECIALLY CHILDREN, TO PUSH ANYTHING
INTO HOLES, SLOTS OR ANY OTHER OPENING IN THE CASE.
*
Donot
obstruct
the
Positioner's
ventilation
slots;
never
stand
the
Positioner
on
soft
furnishings
or
carpets.
* Donotuse or store the Positioner in excessively hot, cold, damp or dusty conditions.
CONNECTION TO THE MAINS SUPPLY
This apparatus operates within the range of 220-240 V AC, 50 Hz mains supplies. DO
NOT
CONNECT
IT
TO
DC
MAINS.
The
lead
is
supplied
terminated
at
one
end
with
a
connector
to
be
inserted
into
the
mains
input
socket
on
the
rear
panel
of
the
apparatus.
DONOT POWER UP THE UNIT UNTIL ALL THE CABLES HAVE BEEN CONNECTED.
Mains Lead Plug Connections (UK and Eire)
The mains lead supplied may or may not have a non-rewireable (moulded) plug. Please
see
the
section
marked
with
an
asterisk
(*)
if
the
supplied
mains
lead
does
not
have
a
non-rewireable plug fitted.
Non-Rewireable Plugs
Mains leads fitted with a non-rewireable (moulded) plug incorporate a fuse, the value of
which is indicated on the pin face of the plug. Should the fuse need to be replaced, an
ASTAor BSI approved BS 1362 fuse must be used of the same rating, marked as shown
right.
If the fuse cover is detachable always refit the cover after replacing the fuse. NEVER
use the plug with the fuse cover omitted.
If the fitted plug is not suitable for your socket outlets it should be cut off, after having first
removed the fuse, and an appropriate plug fitted in its place. If this new plug contains
a fuse, its value should be the same as that removed from the non-rewireable plug.
The severed plug must be destroyed immediately to avoid the possible shock hazard
should it be inserted into a 13 A socket elsewhere.
*IF YOU NEED TO FIT A MAINS PLUG THEN FOLLOW THESE INSTRUCTIONS:
Rewireable Plugs
Important: The wires in the mains lead are coloured in accordance with the following
code:
BLUE - Neutral (N) BROWN - Live (L)
As these colours may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire coloured BLUE must be connected to the terminal marked with the letter N or
coloured BLUE or BLACK.
The wire coloured BROWN must be connected to the terminal marked with the letter L
or coloured BROWN or RED.
On no account connect either of these wires to the terminal marked E or coloured
GREEN or GREEN and YELLOW.
Before replacing the plug cover, make certain that the cord grip is clamped over the
sheath of the lead, not simply over the two wires.
A fused plug must be fitted with a 3 A fuse complying with BS 1362. If you are using a
non-fused plug, an external fuse must not exceed 5 A.
Mains Lead Plug Connections (Continental Europe)
The mains lead is supplied already fitted with a 2-pin moulded plug. This mains lead must
not be used in the UK.
b> IF IN DOUBT, CONSULT A COMPETENT ELECTRICIAN
