Pace TDC787X - Page 14

12
CONNECTING THE EQUIPMENT (cont.)
ANTENNA/
RF IN
TV / RF
OUT
ANTENNA/
RF IN
LEFT
AUDIO IN
RIGHT
AUDIO IN
VIDEO IN
LEFT
AUDIO IN
RIGHT
AUDIO IN
VIDEO IN
POWER
LEFT
AUDIO OUT
RIGHT
AUDIO OUT
VIDEO OUT
CABLE INPUT
HDTV
VCR
DVD
LEFT
AUDIO IN
VCR IN
RIGHT
AUDIO IN
VIDEO IN
PB/CB
PR/CR
Y
COMPONENT
VIDEO OUT
HOME THEATER RECEIVER
OPTICAL
AUDIO IN
COAXIAL
AUDIO IN
DIGITAL AUDIO OUT
DIGITAL AUDIO IN
OPTICAL COAXIAL
PB/CB IN
PR/CR IN
Y IN
COMPONENT
VIDEO IN
POWER
POWER
POWER
HDMI
WALL AC OUTLET
WALL AC OUTLETS

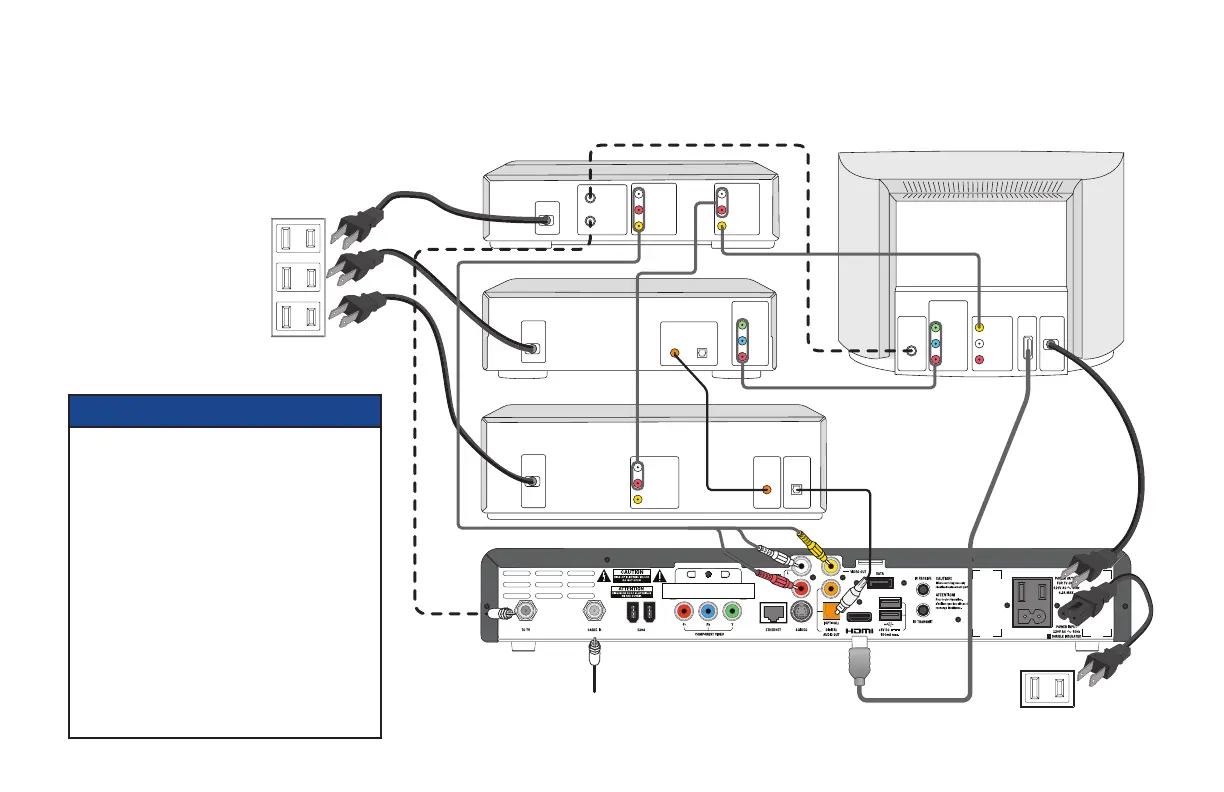

Setup A: (HDMI)
NOTE
This diagram shows a video path from
the set-top to a VCR to allow recording
by the VCR. It shows a video path from
the VCR to the TV to allow playback of
videos. Video signals fed through a VCR
may be affected by copyright protection
systems, which can cause picture
distortion on your TV.
Do not, therefore, use a path through a
VCR to watch your set-top programs.
Use the HDMI path or an alternate direct
video path from your set-top to your TV.
Remember to select the correct input on
your TV.
