Pace TDC787X - Operating Your Set-Top; Turning Set-Top On and Off

13
ANTENNA/
RF IN
TV / RF
OUT
ANTENNA/
RF IN
LEFT
AUDIO IN
RIGHT
AUDIO IN
VIDEO IN
LEFT
AUDIO IN
RIGHT
AUDIO IN
VIDEO IN
POWER
LEFT
AUDIO OUT
RIGHT
AUDIO OUT
VIDEO OUT
CABLE INPUT
HDTV
VCR
DVD
LEFT
AUDIO IN
VCR IN
RIGHT
AUDIO IN
VIDEO IN
HOME THEATER RECEIVER
OPTICAL
AUDIO IN
COAXIAL
AUDIO IN
DIGITAL AUDIO OUT
DIGITAL AUDIO IN
OPTICAL COAXIAL
POWER
POWER
POWER
WALL AC OUTLET
WALL AC OUTLETS
PB/CB IN
PR/CR IN
Y IN
COMPONENT
VIDEO IN
S-VIDEO OUT
S-VIDEO
IN

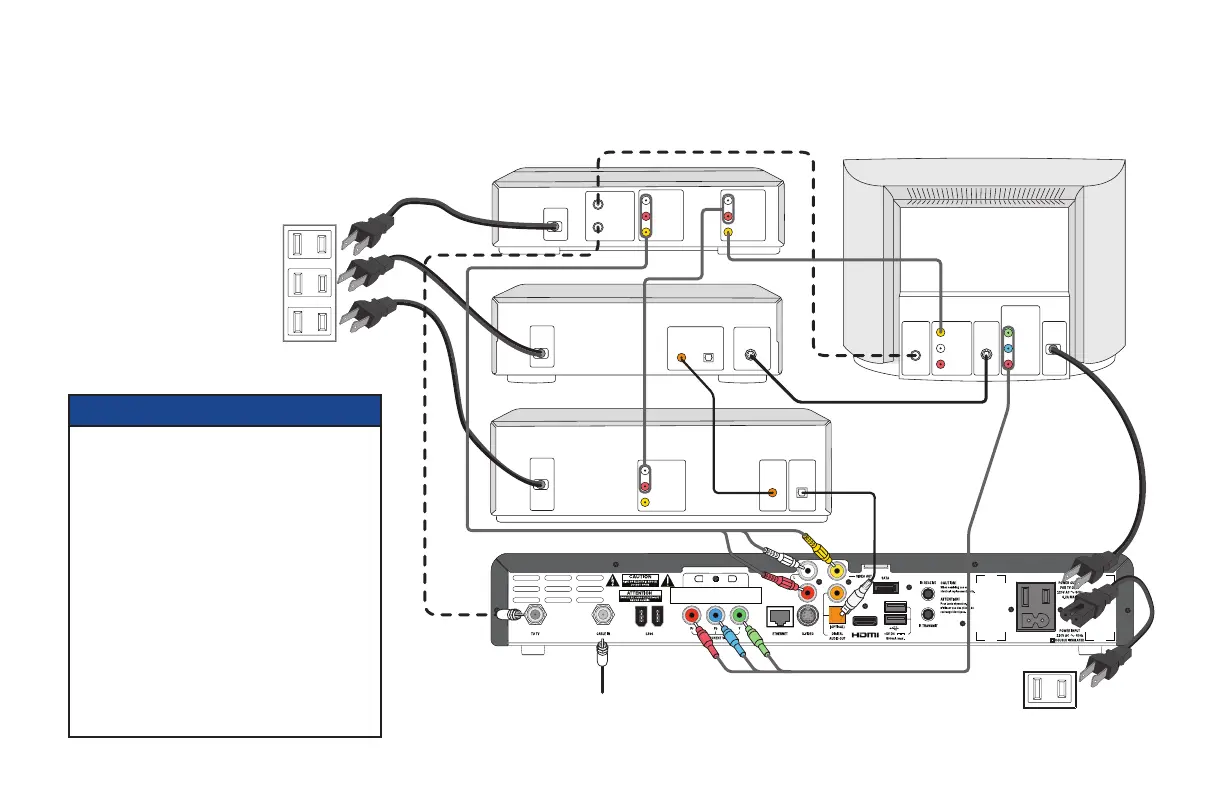

Setup B: (Component video)
CONNECTING THE EQUIPMENT (cont.)
NOTE
This diagram shows a video path from
the set-top to a VCR to allow recording
by the VCR. It shows a video path from
the VCR to the TV to allow playback of
videos. Video signals fed through a VCR
may be affected by copyright protection
systems, which can cause picture distortion
on your TV.
Do not, therefore, use a path through a VCR
to watch your set-top programs.
Use the component video path or an
alternate direct video path from your set-
top to your TV. Remember to select the
correct input on your TV.
