System Operations Manual
www.paceworldwide.com
Page 40 of 50
Installation

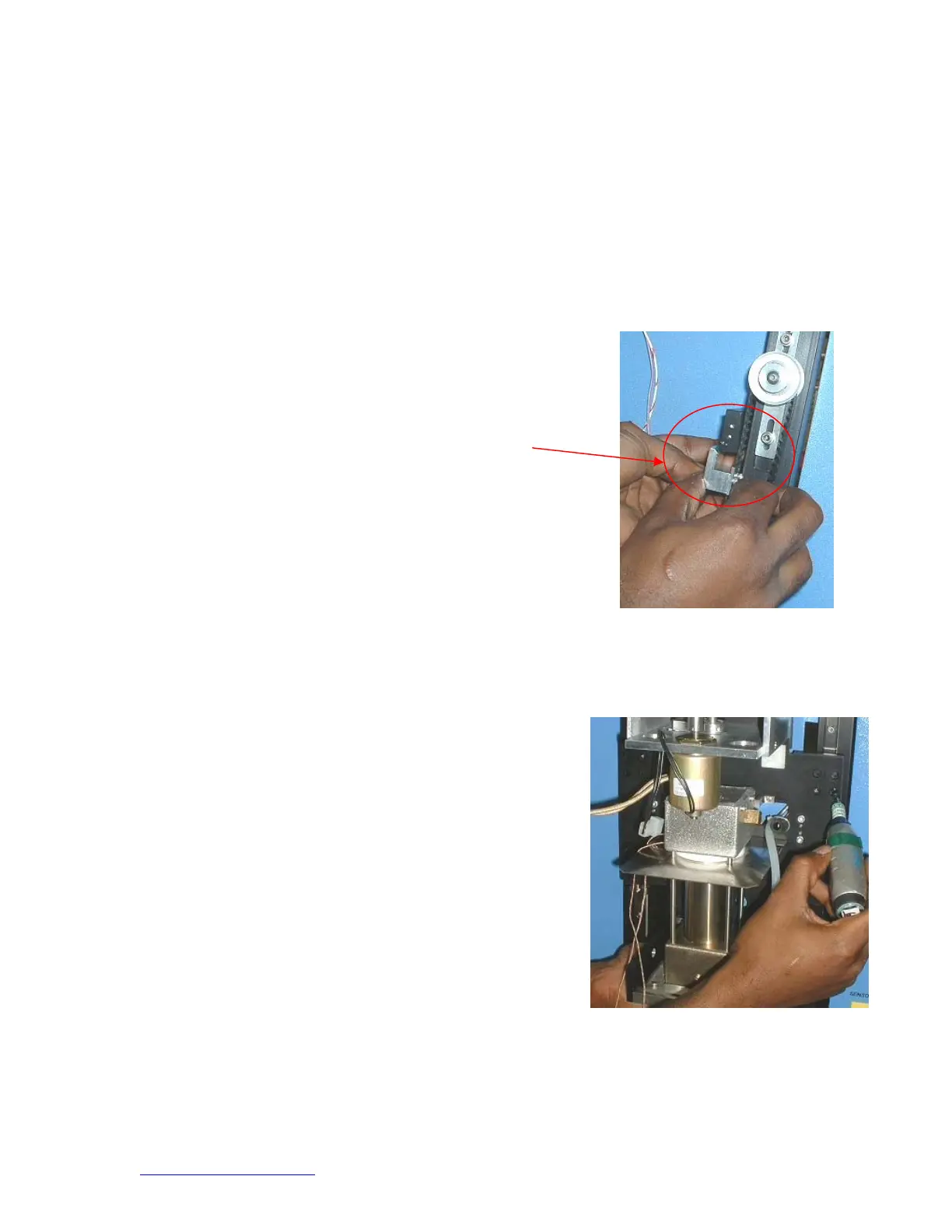

1. Carefully install the new heater assembly on the rails. Guide the vacuum line and tubing
through the mounting plate. Make sure that the hoses are not pinched. Refer to figure
39.
2. Make sure that the belt bracket rests on the lift bracket
before installing the mounting screws.
3. Install the 16 hex socket head screws holding the heater
assembly to the rails. Continue holding the heater
assembly until several of the screws are installed. Do
not completely tighten any of the screws until all screws
have been installed.
Figure 41
Figure 40
