Pace TF 1700 - Parts Identification

System Operations Manual
www.paceworldwide.com
Page 4 of 50

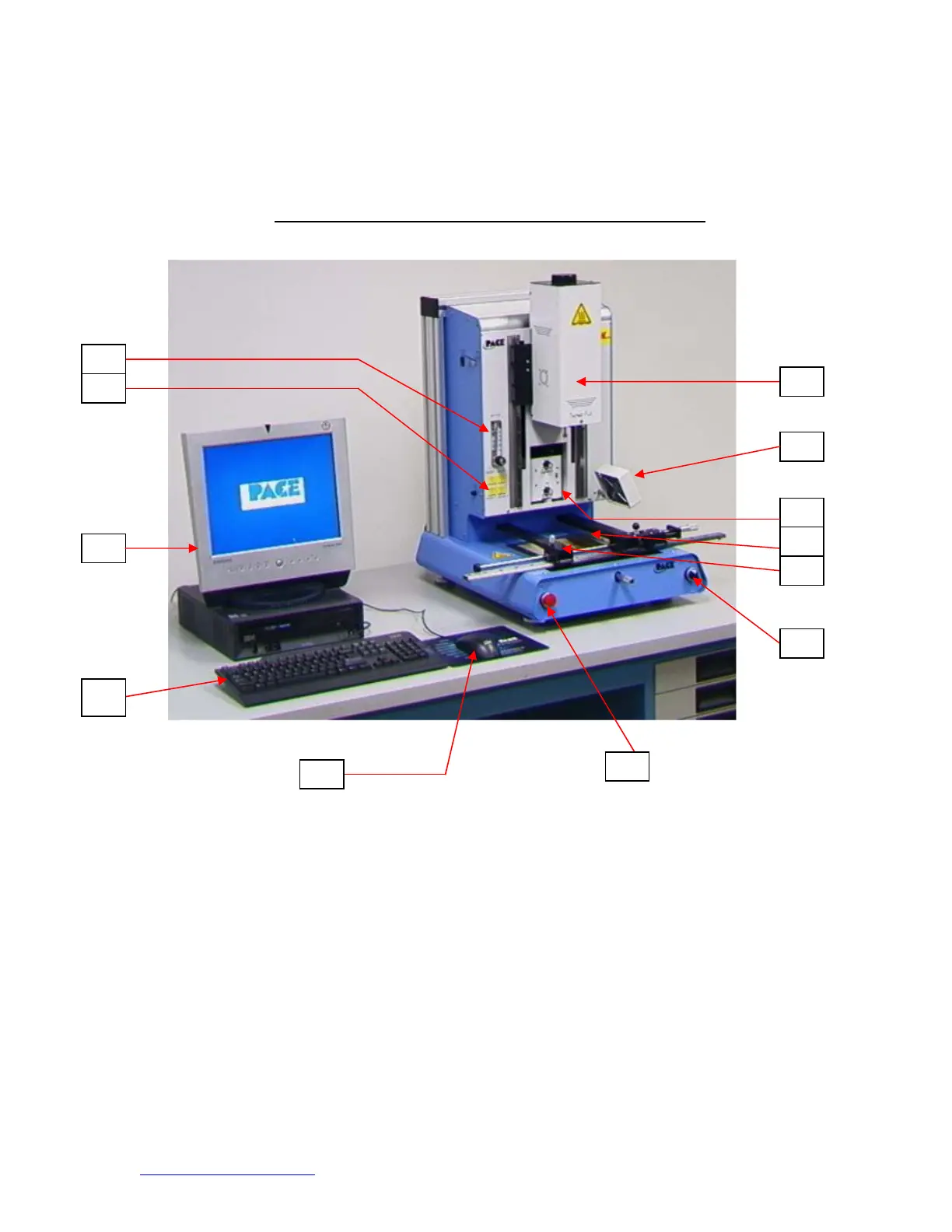

TF 1700 BGA Rework Station Parts Identification
Figure 1a
A. Air Flow Meter This device is used to control and monitor the airflow
through the reflow head.
B. Sensor Inputs The sensor inputs are K-type thermo-couples.
Measured temperatures are displayed through the PC
software in real time for use in making profile graphs.
C. LCD Display Monitor Displays PC software.
D. Keyboard Used to enter information into software.
E. Reflow Head Contains the top-side heater and moves up and down
via an electric motor that is controlled through the
software. The reflow head is clutched to control
downward force.
F. Cooling Fan The component and PCB are cooled by the cooling fan,
and can be activated automatically after the reflow cycle
is complete or operated manually.
A
B
F
C
D
E
G
H
I
J
K
L
