Pace TF 1700 - Page 5

System Operations Manual
www.paceworldwide.com
Page 5 of 50
G. Optics Housing Contains the camera and beam splitter (prism). The
housing extends and retracts automatically during
operation and the lights for the optics will turn on/off
automatically when the housing is extended/retracted.
H. Bottom Side Heater Used to warm the PCB from the underside. It is an IR
type heating source.
I. Board Holder Fine adjustment of both the X and Y direction is
achieved by using the adjusting knobs on the end of the
holder for X and on the front of the machine for Y.
The right side of the holder is spring loaded to hold the
PCB securely.
J. On / Off Switch Used to turn the system on or off. When turning off the
system, always turn off the PC using the windows
interface first. When starting the system, always turn on
TF1700 before starting the PC software.
K. Mouse Used to enter information into software.
L. Emergency Off Switch In case an emergency shut down is necessary, press
this button.

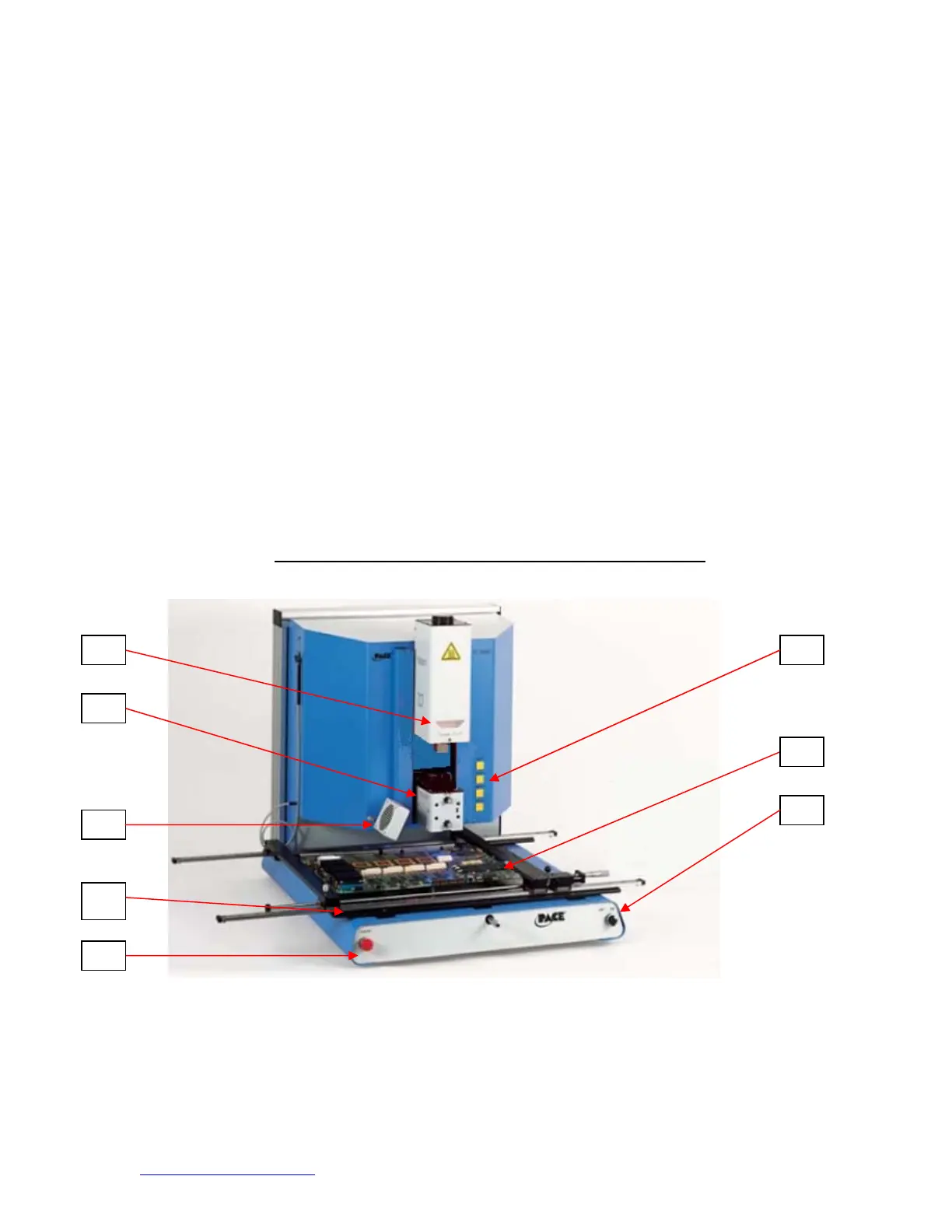

TF 2700 BGA Rework Station Parts Identification
A
B
F
C
D
E
G
H
*Not pictured: PC, Keyboard, and Mouse
