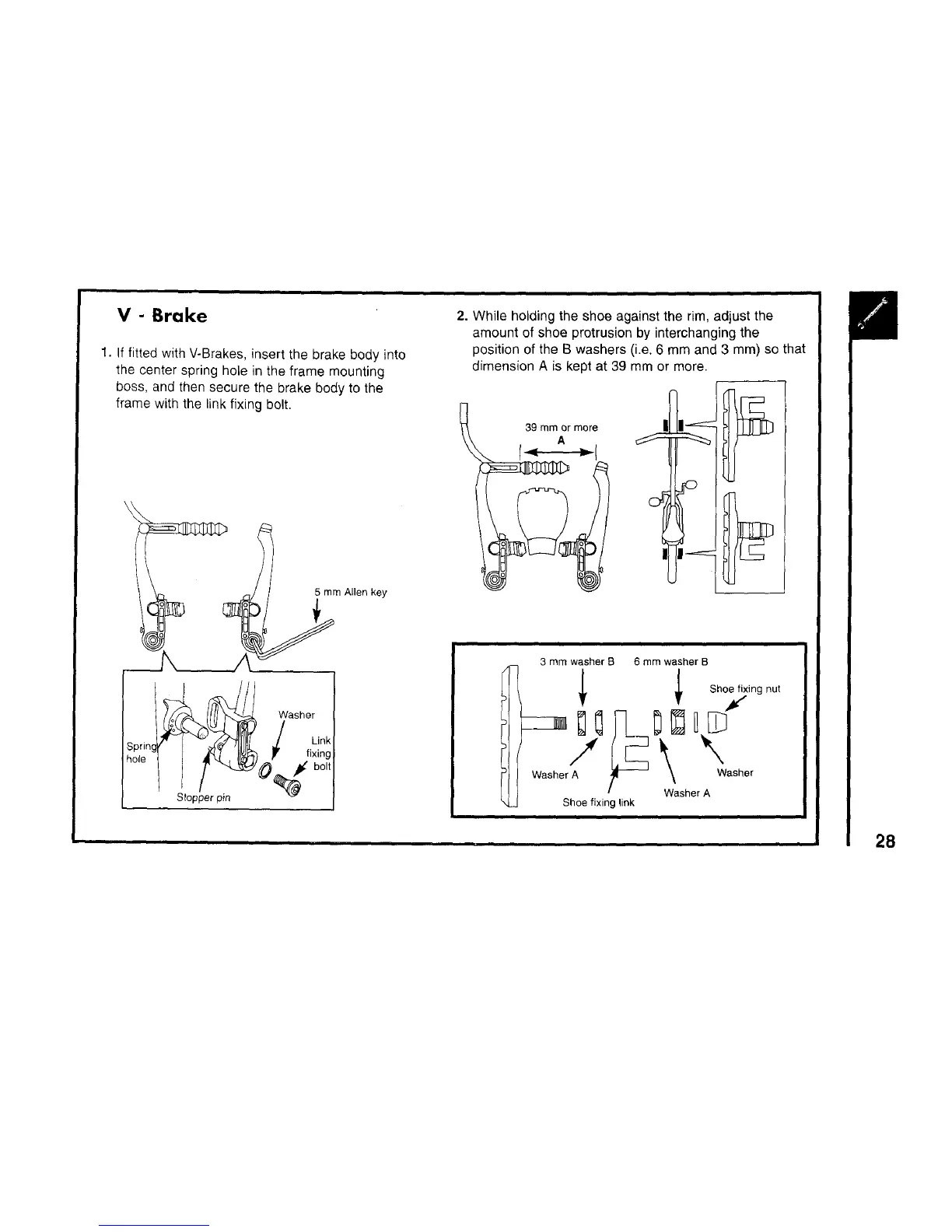

V - Brake
1. If fitted with V-Brakes, insert the brake body into
the center spring hole in the frame mounting
boss, and then secure the brake body to the
frame with the link fixing bolt.
L ) ,-_I 5 mm Allen key
Spring
hole
Stopper pin
2. While holding the shoe against the rim, adjust the
amount of shoe protrusion by interchanging the
position of the B washers (i.e. 6 mm and 3 mm) so that
dimension A is kept at 39 mm or more.
39 mm or more
A
(D
o
l
3 mm washer B
/
Washer A
Shoe fixin
6 mm washer B
l Shoe fixing nut
Washer
Washer A
link
- ,, 28
