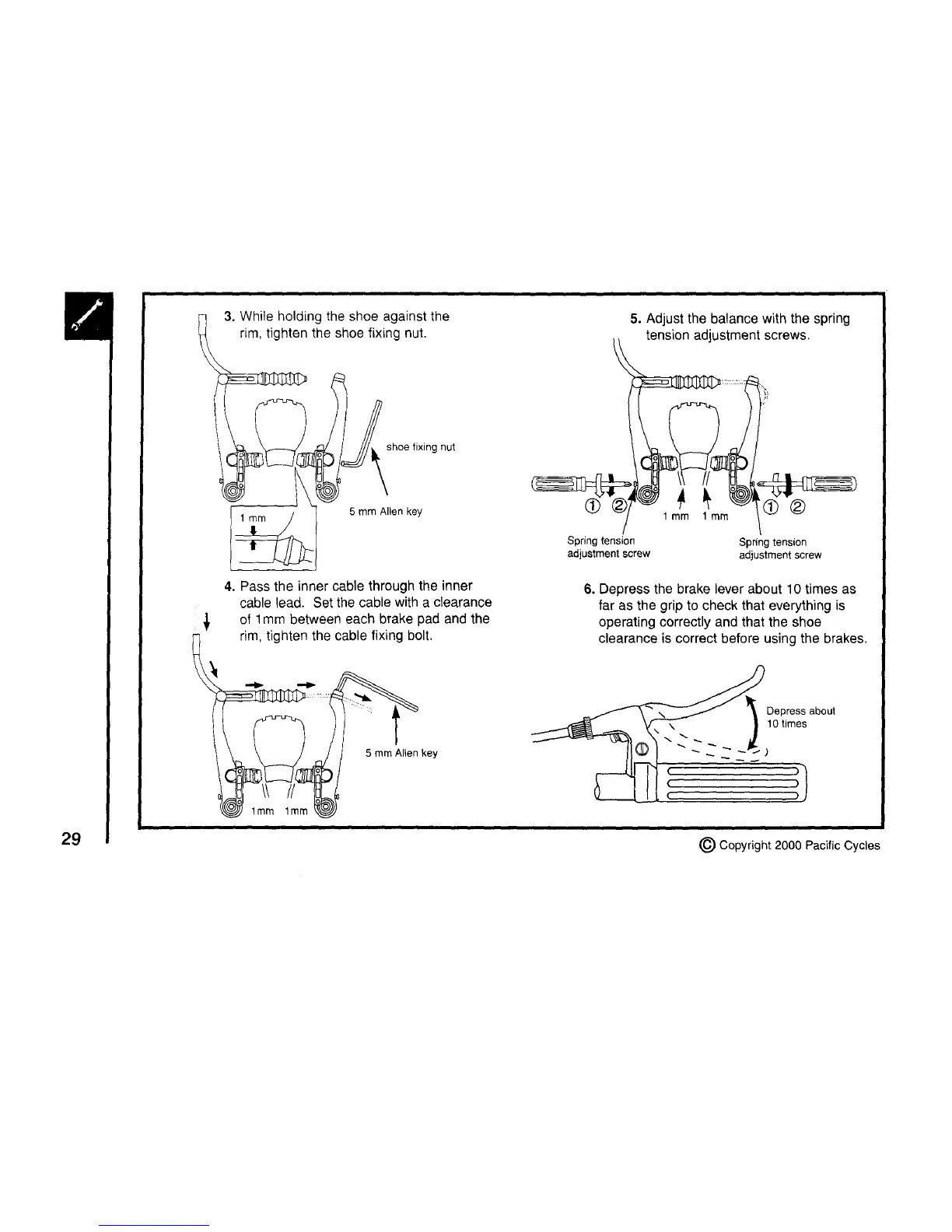

3. While holding the shoe against the
rim, tighten the shoe fixing nut.
shoe fixing nut
5 mm Alien key
4. Pass the inner cable through the inner
cable lead. Set the cable with a clearance
of 1mm between each brake pad and the
rim, tighten the cable fixing bolt.
'_'_lb : :
5 mm Alien key
5. Adjust the balance with the spring
tension adjustment screws.
1 mm 1 mm
Spring tension
adjustment screw
Spring tension
adjustment screw
6. Depress the brake lever about 10 times as
far as the grip to check that everything is
operating correctly and that the shoe
clearance is correct before using the brakes.
Depress about
10 times
29 (_) Copyright 2000 Pacific Cycles
