Packd C4 Series - Assembly Instructions; Preparation and Parts Check

3 | C4 A s s e m b l y & I n s t a l l a t i o n G u i d e
ASSEMBLY INSTRUCTIONS
1 PREPARATION

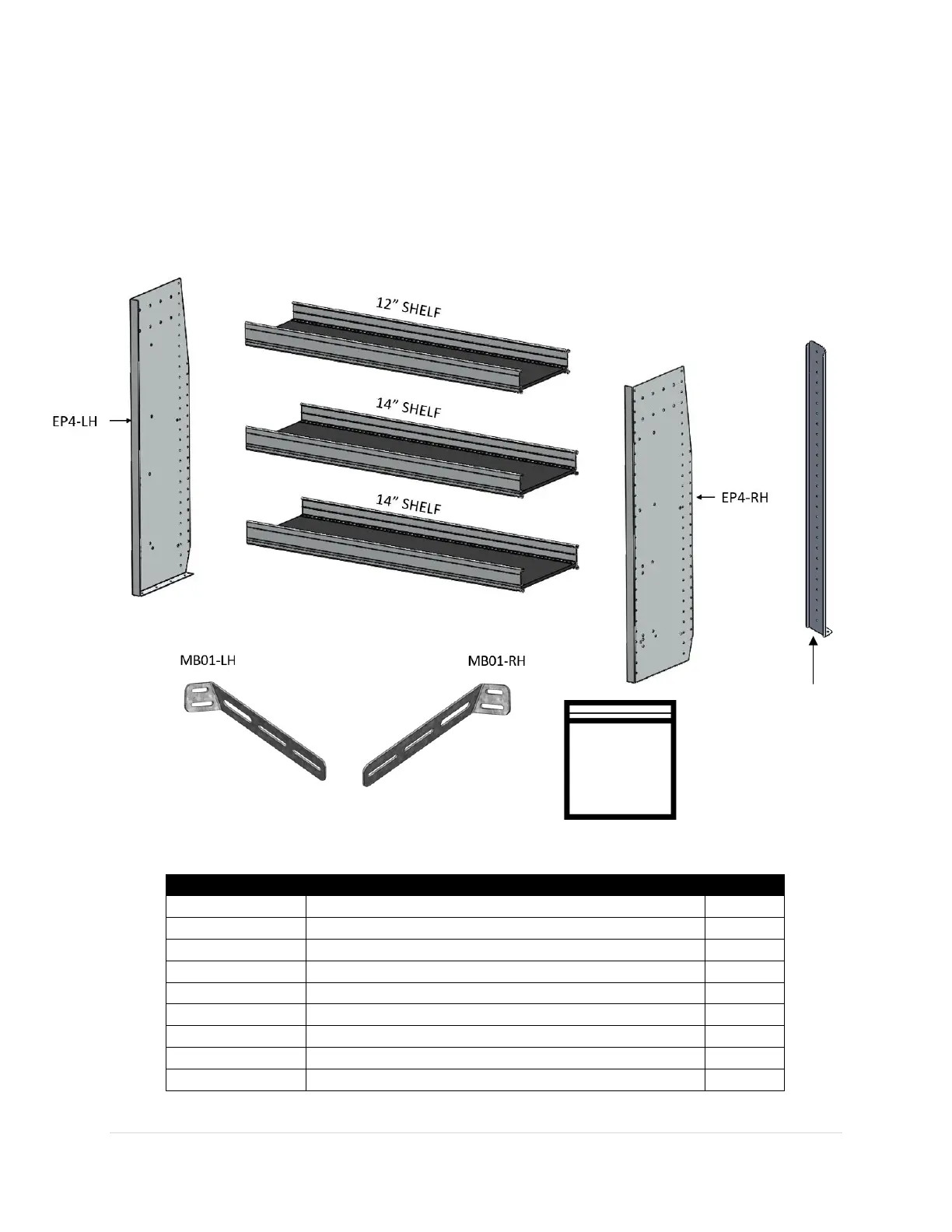

Unpack components and compare to the Bill of Materials. Ensure that all of the parts are present.
BILL OF MATERIALS
Part Number
Description
Quantity
EP4-LH
SFO Aluminum LH End Panel 45” x 16”
1
EP4-RH
SFO Aluminum LH End Panel 45” x 16”
1
12” Shelf
Shelf Tray Assembly, 12”
1
14” Shelf
Shelf Tray Assembly, 14”
2
MB01-LH
Shelf Mounting Bracket, LH
1
MB01-RH
Shelf Mounting Bracket, RH
1
CS4
LR Centre Support (For Shelf Units 72” or longer)
1
Assembly Fastener Kit
1
Install Fastener Kit
1
FASTENERS
CS4
For Shelf Units
72” or longer
