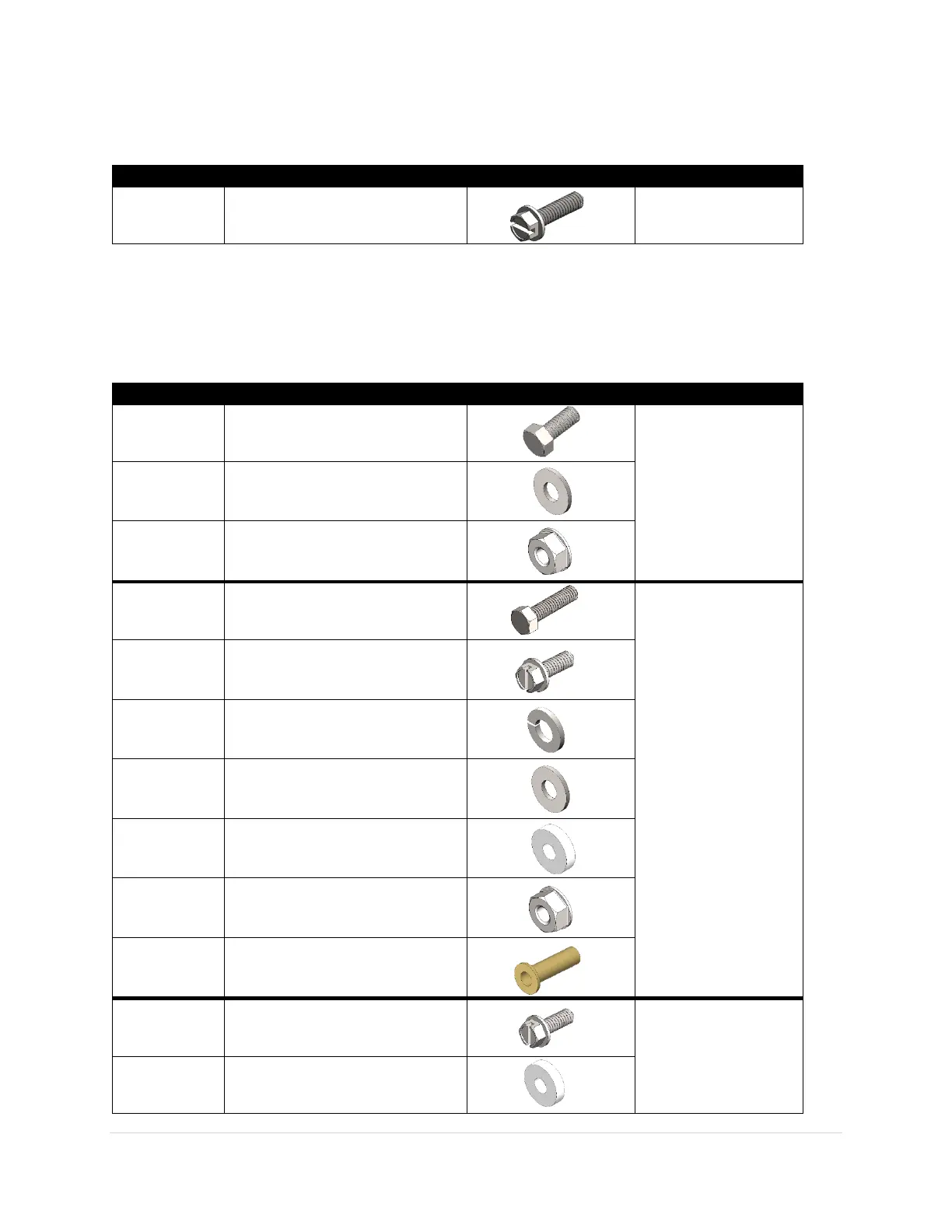

4 | C4 A s s e m b l y & I n s t a l l a t i o n G u i d e
2 ASSEMBLY FASTENER KIT
3 INSTALL FASTENER KIT
Quantity
Description
Purpose
32
Hex Washer Head Screw
#14 x 1”
Fastening Shelf Trays
to the End Panels
Quantity
Description
Purpose
4
Hex Bolt
5/16-18 x 3/4
Fastening the Shelf
Mounting Brackets
to the End Panels
4
Flat Washer
5/16
4
Serrated Nut
5/16-18
4
Hex Bolt
5/16-18 x 1-1/4
Fastening the Shelf
Assembly to the
structure of the
vehicle
8
Hex Washer Head Screw
#14 x 3/4
4
Lock Washer
5/16
4
Flat Washer
5/16
6
1/4” Nylon Spacer
4
Serrated Nut
5/16-18
4
Plus Nut
5/16
6
Hex Washer Head Screw
#14 x 3/4
Installing Centre
Support (For Shelf
Units 72” or Longer)
2
1/4” Nylon Spacer
