6 | C4 A s s e m b l y & I n s t a l l a t i o n G u i d e
INSTALLATION INSTRUCTONS
1 FASTENING BRACKETS TO END PANELS

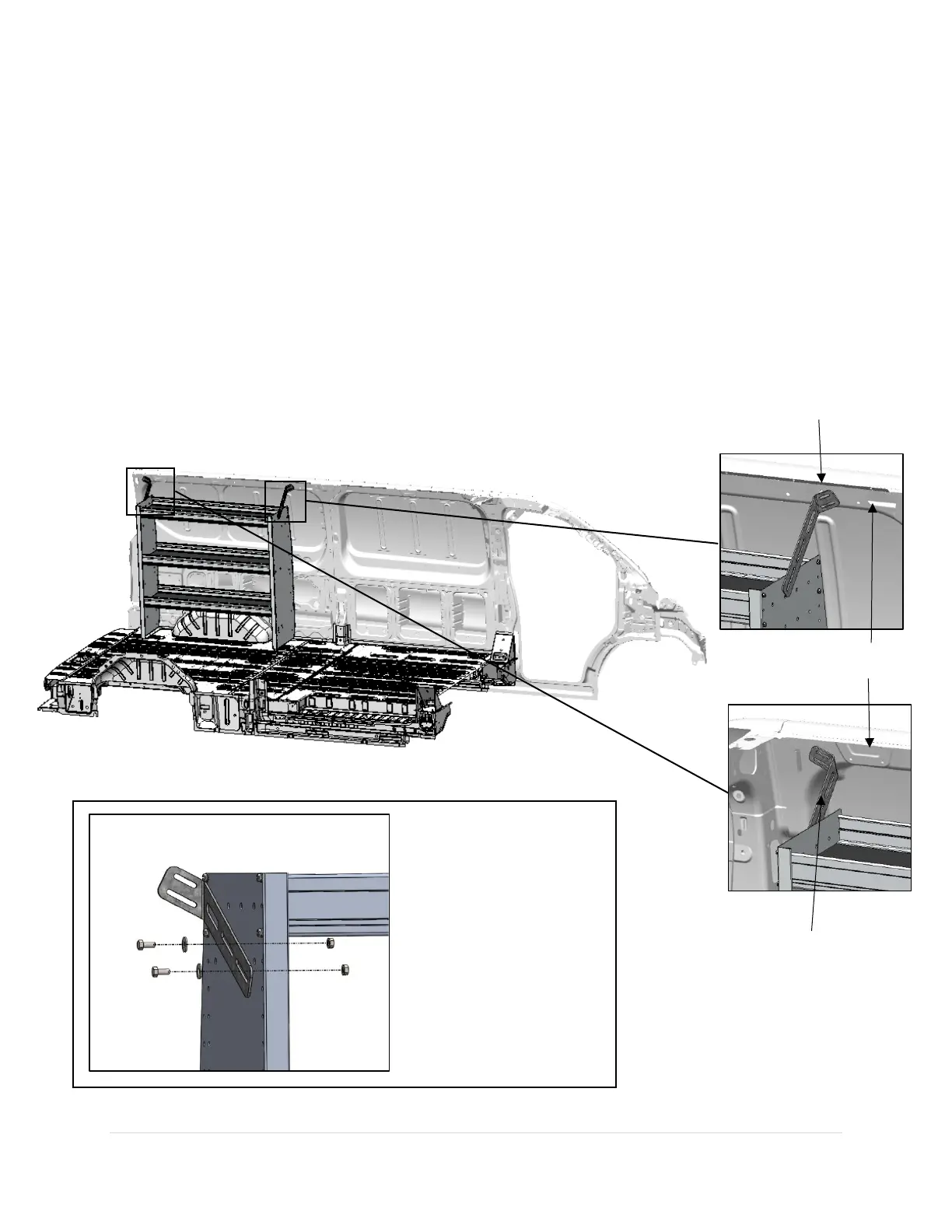

1. Lift assembled shelf unit into vehicle and place it in the desired location.
2. Place the mounting brackets so that they align with the horizontal rim of the vehicle as shown.
3. Make 2 marks in the slots of the mounting bracket onto the end panel of the shelf unit.
4. Use a 3/8” drill bit to drill out the holes for mounting the mounting brackets onto the end
panels.
5. Fasten the mounting brackets onto the end panels.
