Packd C4 Series - Performing Shelf Assembly

5 | C4 A s s e m b l y & I n s t a l l a t i o n G u i d e
4 SHELF ASSEMBLY

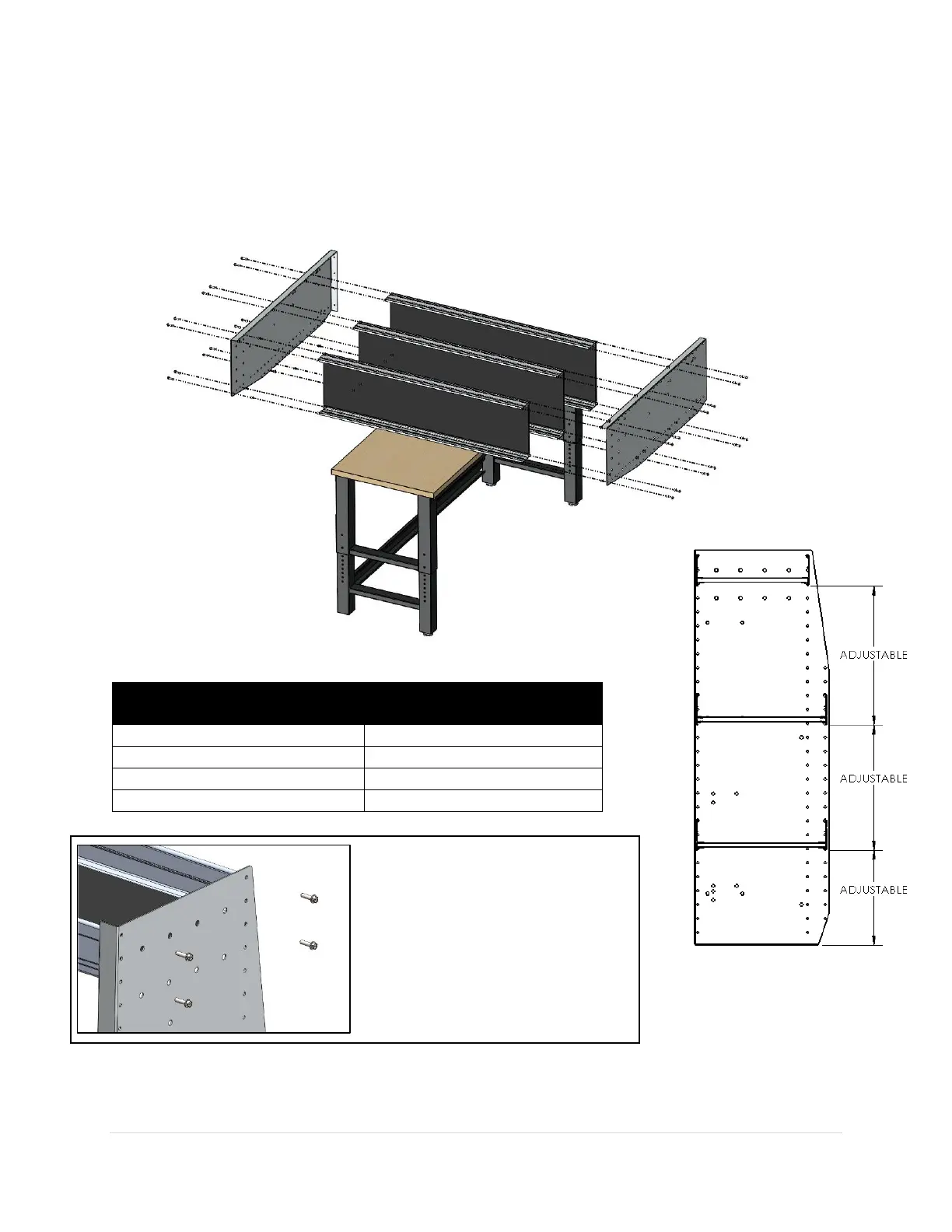

• Position shelf trays on a work bench. Fasten the End Panels to the Shelf Trays using the
hardware provided.
• Make sure the bench is clean and smooth to minimize scratches.
VEHICLE
MINIMUM CLEARANCE
(OVER WHEEL WELL)
Mercedes Benz Sprinter
13”
Ford Transit
11.5”
Ram Promaster
17”
GMC Savana
12”
Tools Used:
Cordless Impact Driver
3/8” Nut Driver Bit
Hardware Used:
24 x Hex Washer Head Screw #14 X 1”
• Set shelf heights as desired – refer to table
below for minimum wheel well clearance.
