9 | C4 A s s e m b l y & I n s t a l l a t i o n G u i d e

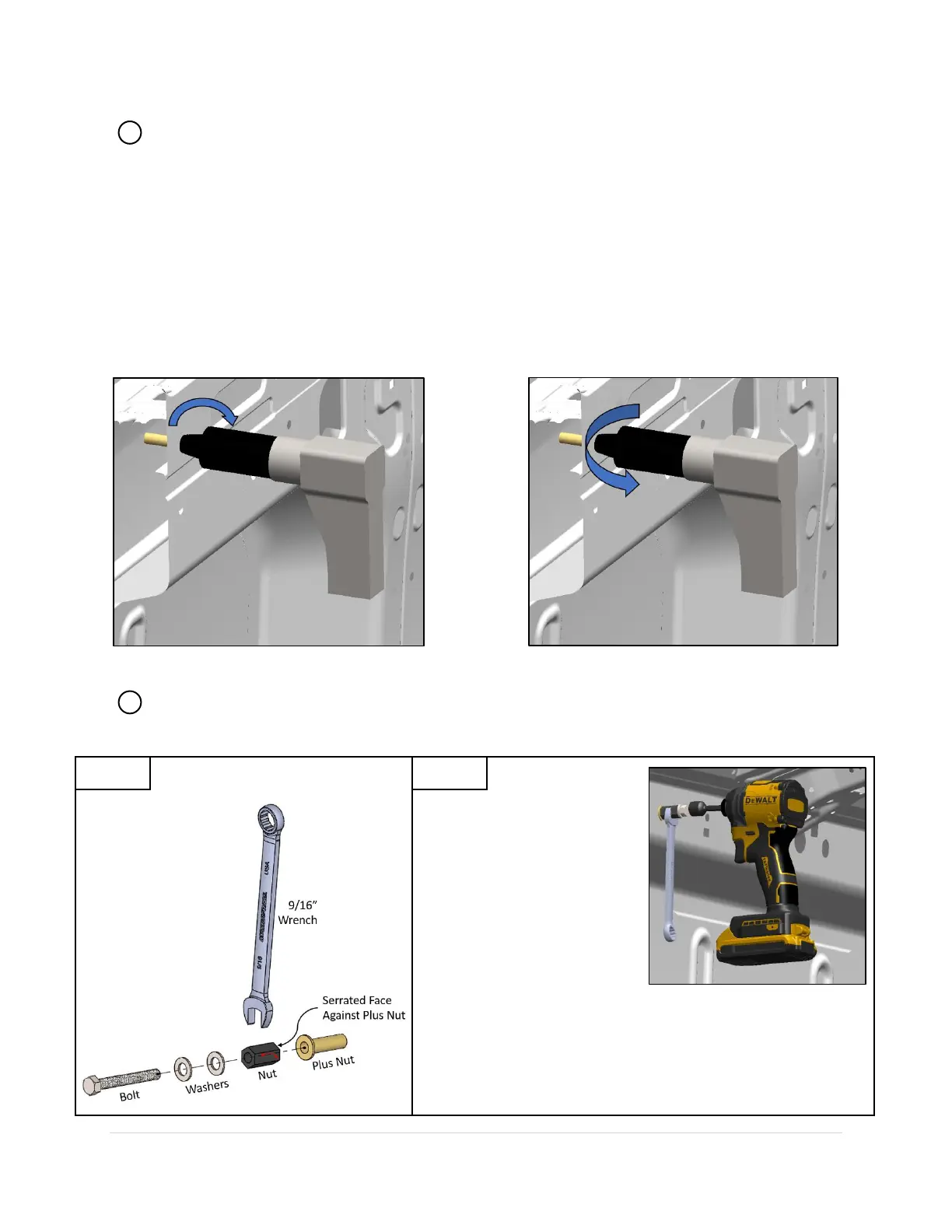

A Using Plus Nut Gun: (If available- otherwise see B below)
• Place 2 drops of air tool oil into the air fitting regularly.
• Ensure that there is anti-seize on the Plus Nut Gun threads at all times.
• Thread a Plus Nut onto the threads of the gun, then place bolt and Plus Nut through pre-
drilled hole.
• Pull trigger of Plus Nut Gun to compress Plus Nut into the material until the noise changes on
the gun.
• Reverse direction on gun to unscrew Bolt from the Plus Nut.
FORWARD
REVERSE
Assemble the Plus
Nut Tool as shown.
Tools:
9/16” Wrench
Hardware:
Plus Nut Tool
Fasten Plus Nut to vehicle:
• Insert Plus Nut into
hole.
• Hold Nut with
wrench.
• Tighten bolt until
Plus Nut clamps the
vehicle body metal
tightly.
STEP 1
STEP 2
B Using Plus Nut Tool:
Tools:
Cordless Impact Driver
1/2" Nut Driver Bit
9/16” Wrench
Hardware:
4 x 5/16” Plus Nuts
Plus Nut Tool
