Section 5
LABELING UNIT
- 6 -
English
F412050100.fmIDM
version
Module 40/60/90/120
PACKAGING AND UNPACKING
The machine is packed with protection cardboard.
All the information needed by the subjects who will
load and unload the machine are reported on the
packaging. The machine will be shipped with its reel
carrier disks and dandy rollers disassembled, in order
to avoid any damage to these components and to
reduce overall dimensions during transport. During
unpacking, check the integrity and exact quantity of the
components.
ASSEMBLY AND INSTALLATION
Machine handling (loading and unloading), installation,
connections and set-up shall be carried out solely by
the qualified personnel authorised by the
Manufacturer.

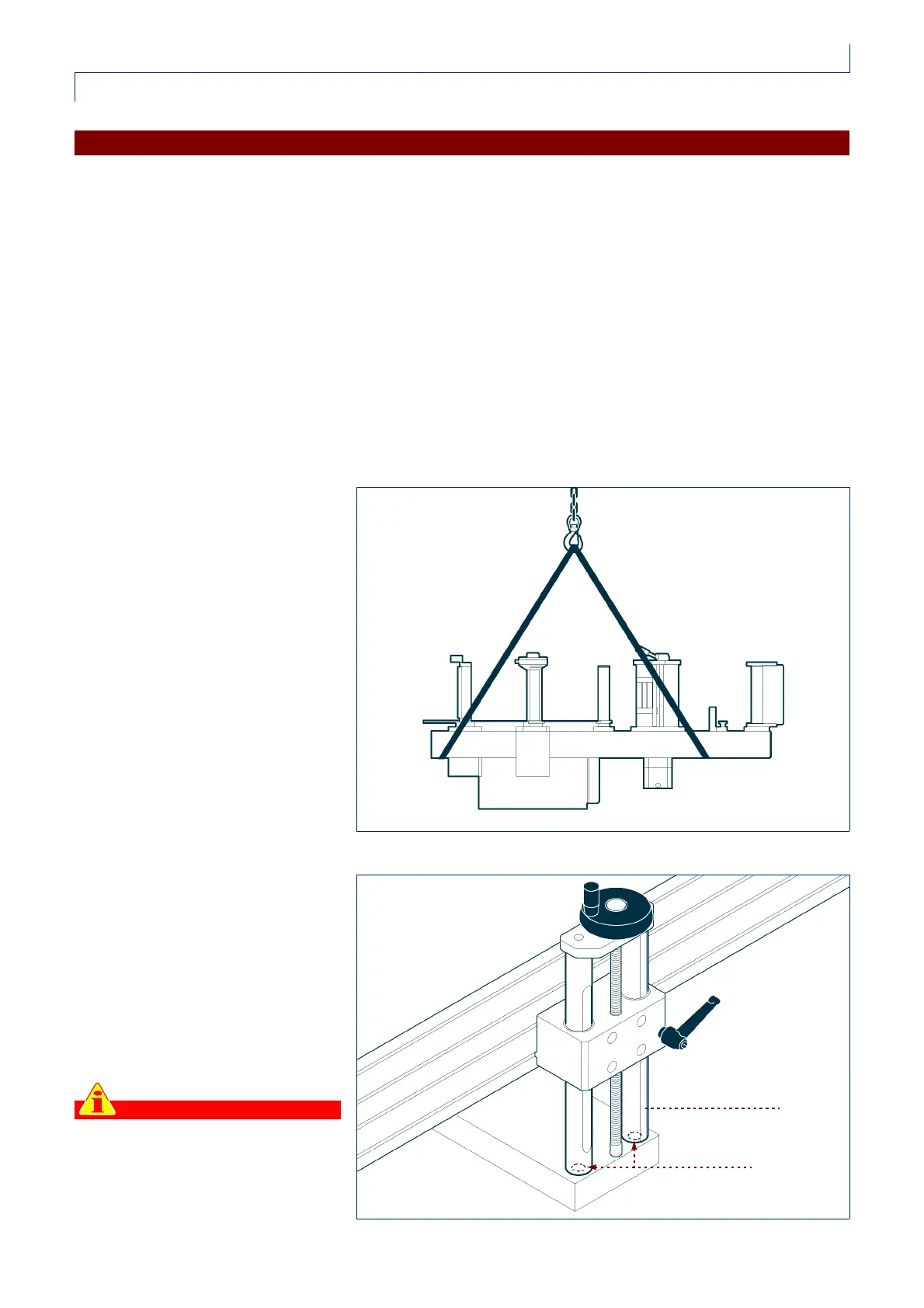

Lifting
Lift the machine as per instructions and
place it in its specific installation area.
Installation
1 -The pre-arranged installation area
shall be adequately lighted and
provided with an external power
socket.
2 -Install the tubing on the basement
of the labelling machine, by using
the two threaded holes (M10,
pitch 90) of the support bars.
3 -A perimeter area all around the
labelling machine shall be reserved
for adjustment and maintenance
operations.
Important
The labeling unit can be delivered
with a column that is adjustable on
five axes; for positioning the unit,
refer to the “Assembly drawings”
document.
INSTRUCTIONS FOR HANDLING AND INSTALLATION
41200603600.tif
41200603700.tif
support bar
M10 hole
