Section 5
LABELING UNIT
- 39 -
English
F412050100.fmIDM
version
Module 40/60/90/120

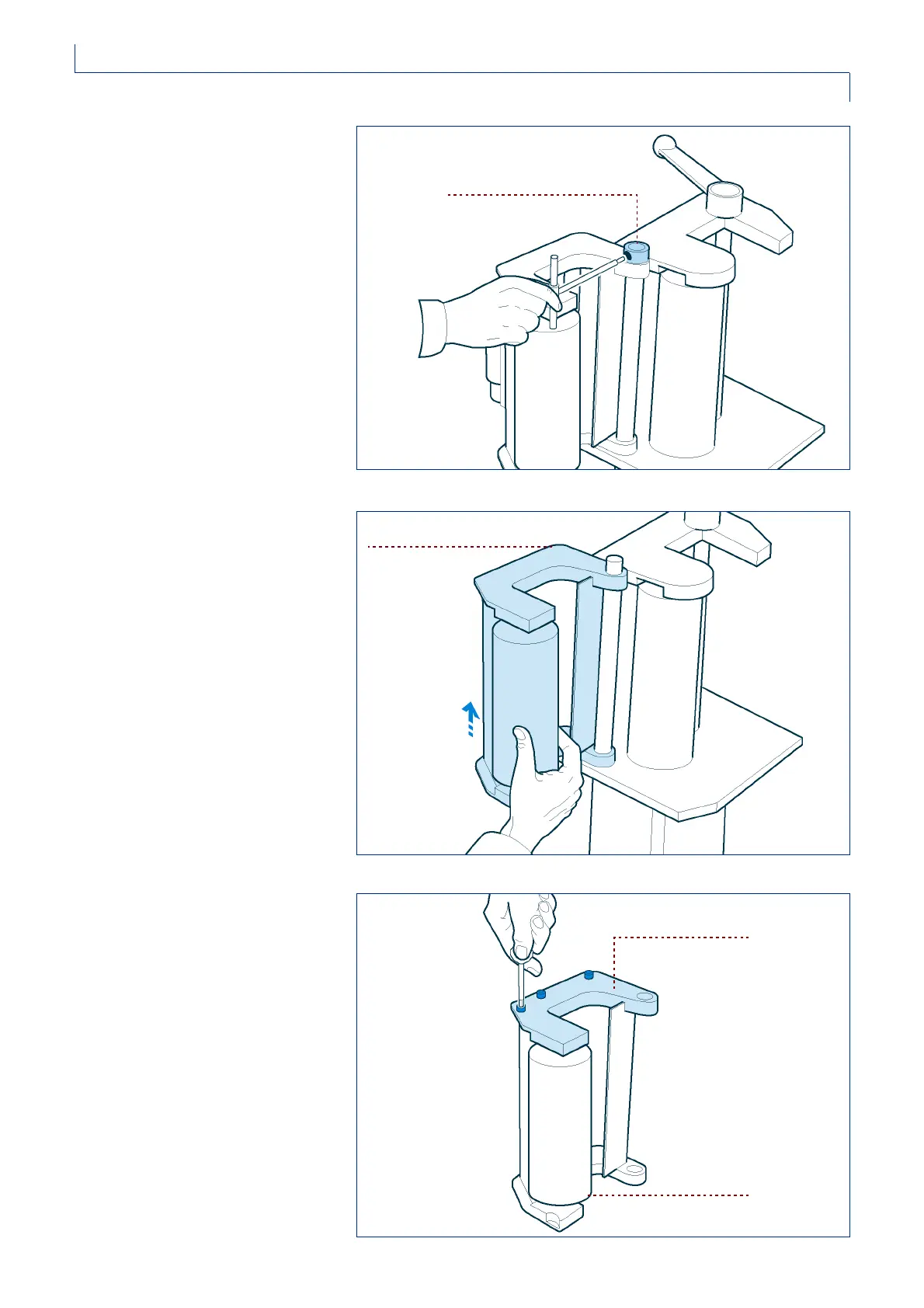

2 -Unscrew the hinge screw until you
can remove the bushing.
3 -Remove the hinged unit from its
housing.
4 -Unscrew the fastening screws of
the upper plate.
5 -Now you can remove the idle roller
from its housing; to mount a new
roller, follow the same operations
the other way round.
IDM-41200603200.tif
bushing
IDM-41200603300.tif
hinged unit
IDM-41200603400.tif
plate
idle roller
