3.2 Infeed and press
The BA700 has to be aligned with the folding machine so that the streams of leaflets are
accepted evenly in the relevant shafts (see 2.1). The height of the banding machine’s
delivery unit is to be adjusted to the exact height of the folding machine. Compare with 2.2 -
2.4.

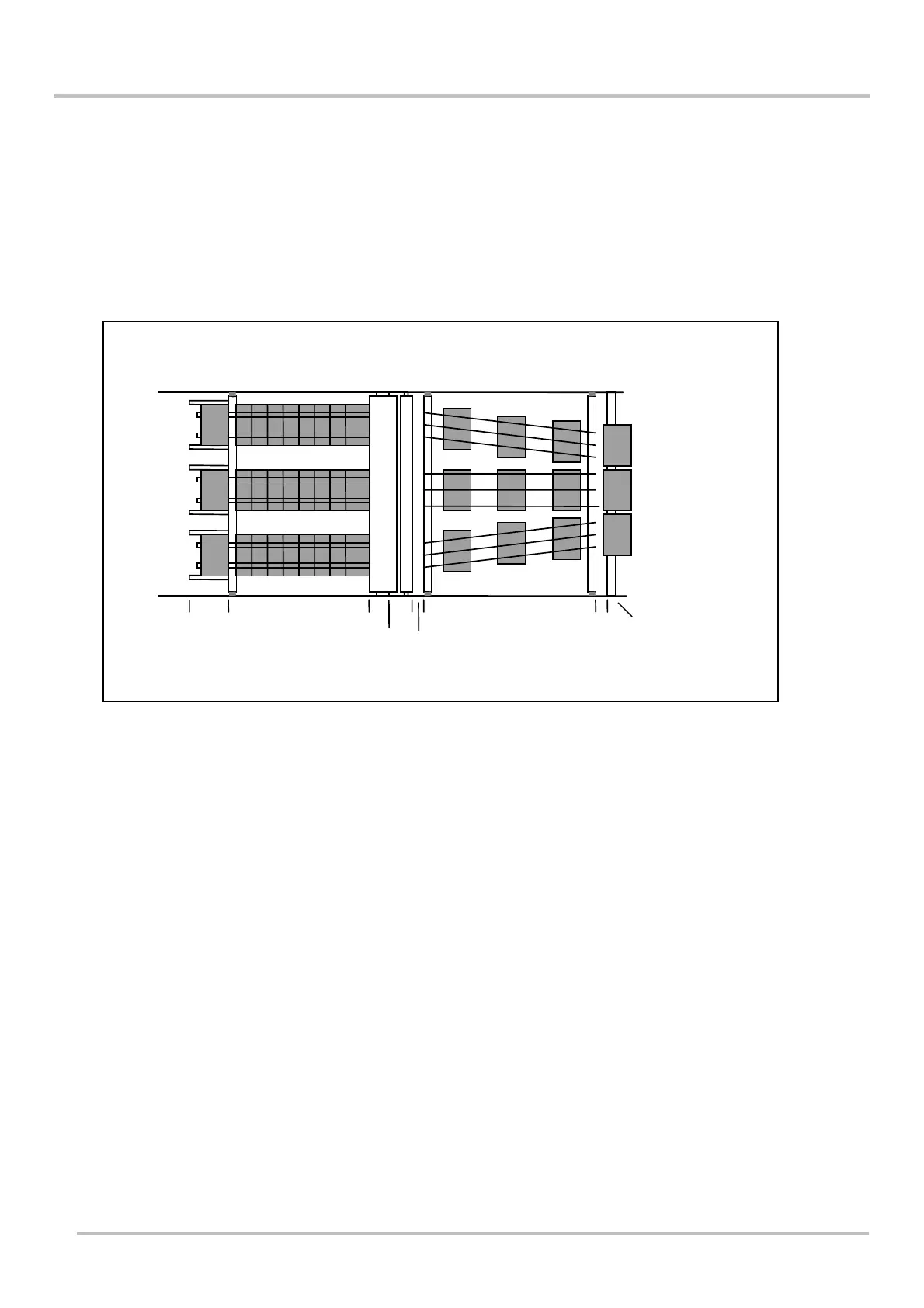

2.1 General view.
2.2 Wrong, delivery too high.
2.3 Wrong, delivery too low.
2.4 Correct, leaflet hits the round belt opening exactly.
Flat belt drive Pile
Round belt infeed
Deflector
Folder
2.1
Pressing station
