3.3 Layering and shaft infeed
The slope and length of the layering device can be adjusted to the product which is to be
processed. It is set up to the product size by adjusting shaft 3.1.1 on handwheel 3.1.2. It is
loosened or fixed using knurled screw 3.1.2. The slope is adjusted using the switching
handle 3.1.3.
The guide rails 3.2.1 have a very important function. They ensure stabilisation in the direction
of feed by bending the sheets; this is significant when stacking up. They are loosened by
knurled screws 3.2.2 and adjusted to the relevant format (see 3.2a). The speed is now set up
using potentiometer so that the leaflets form a clean unbroken layered stream. Take care
here that the infeed runs continuously.
For single sheet infeed, the distance between the leaflets must be at least 100 mm.

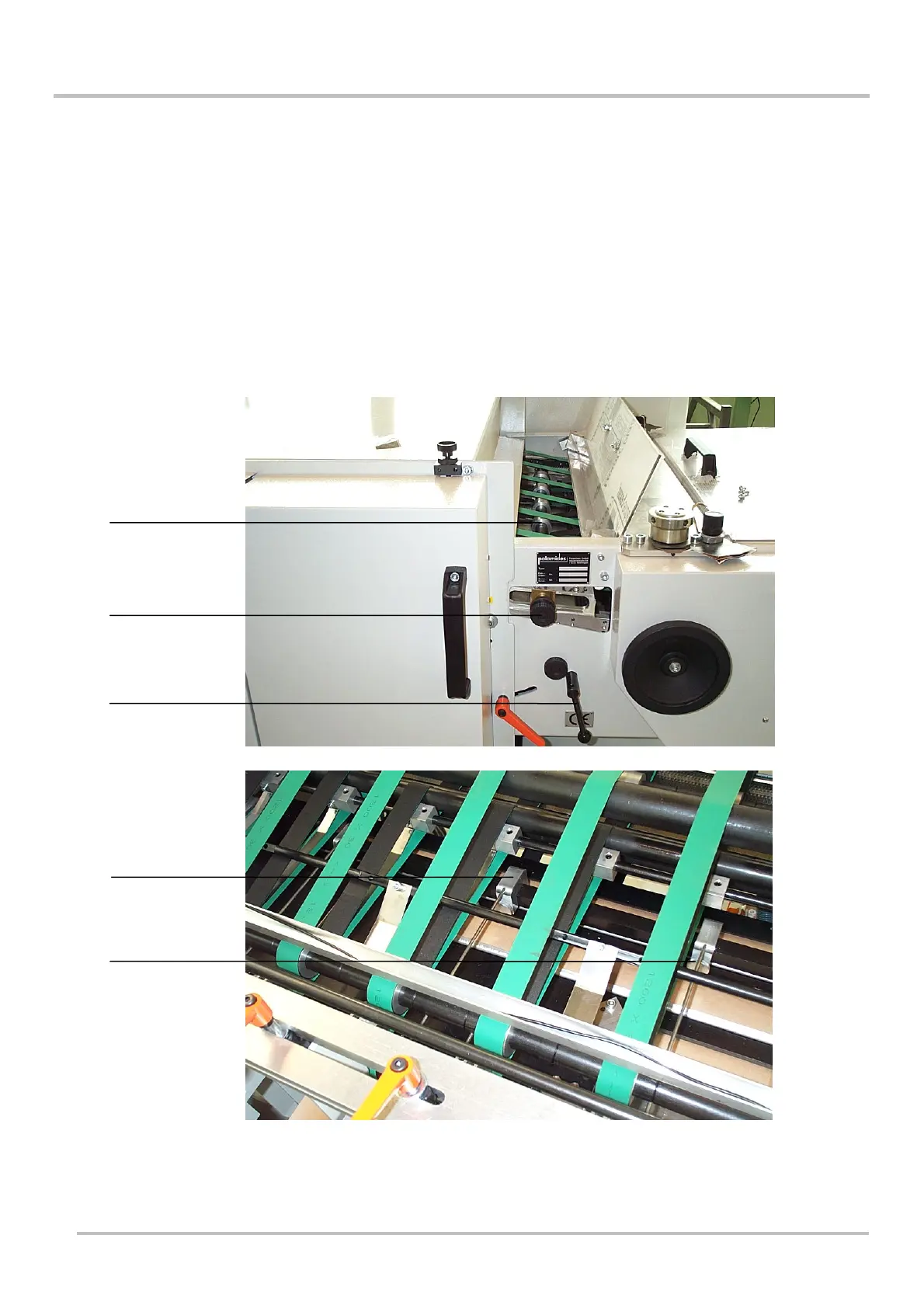

3.1.1
3.1.3
3.1.2
3.2.1
3.2.2
