Sensor Technology
36
Subject to change without notice

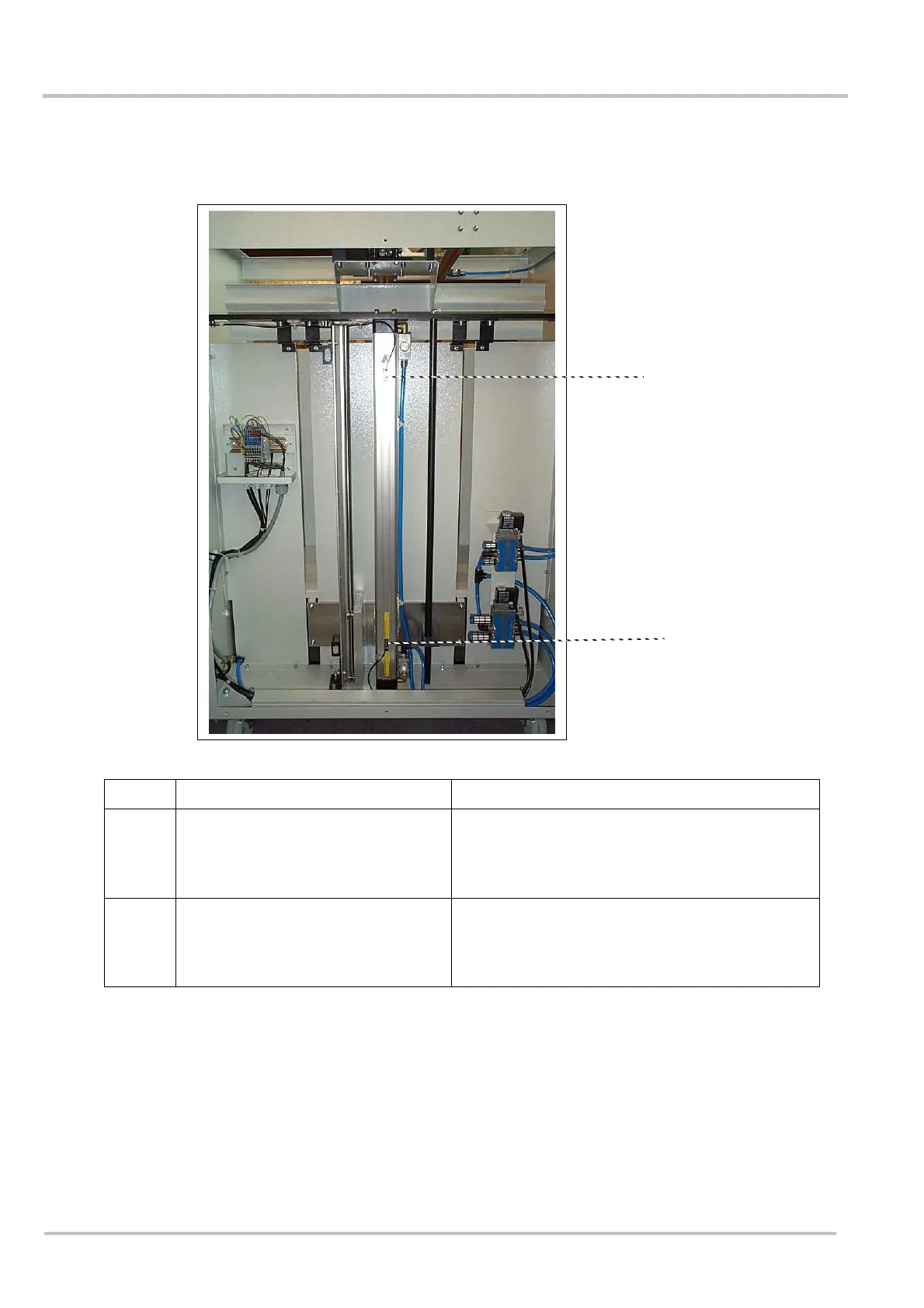

4.13 Sensor B 37 and B 38
Sensor Position/Name Adjustment
B37 Package lift table, lower final
position
When package lift table is moved manually, the
package lift table must still have 2 mm of
movement left after the yellow LED on Sensor
B37 has lit up.
B38 Package lift table, upper final
position
When package lift table is moved manually, the
package lift table must still have 2 mm of
movement left after the yellow LED on Sensor
B37 has lit up.
B37
B38
