Pneumatics
5
Subject to change without notice
39
5.2 Ventilschrank BA
Throttle
description
Valve
descr.
Function
V1 Pressing bars
V2 Welding heads
V3 Band tension
V4 Stopper device for stream feed
V6 Knife
V7 Cooling
V8 Deflector
V9 Main valve
Rise-delay time after starting machine approx. 1 second
D10 V10 Batch level compensator (optional)
D9 Tape tensioner movement into starting position
D11 V11 Air blow

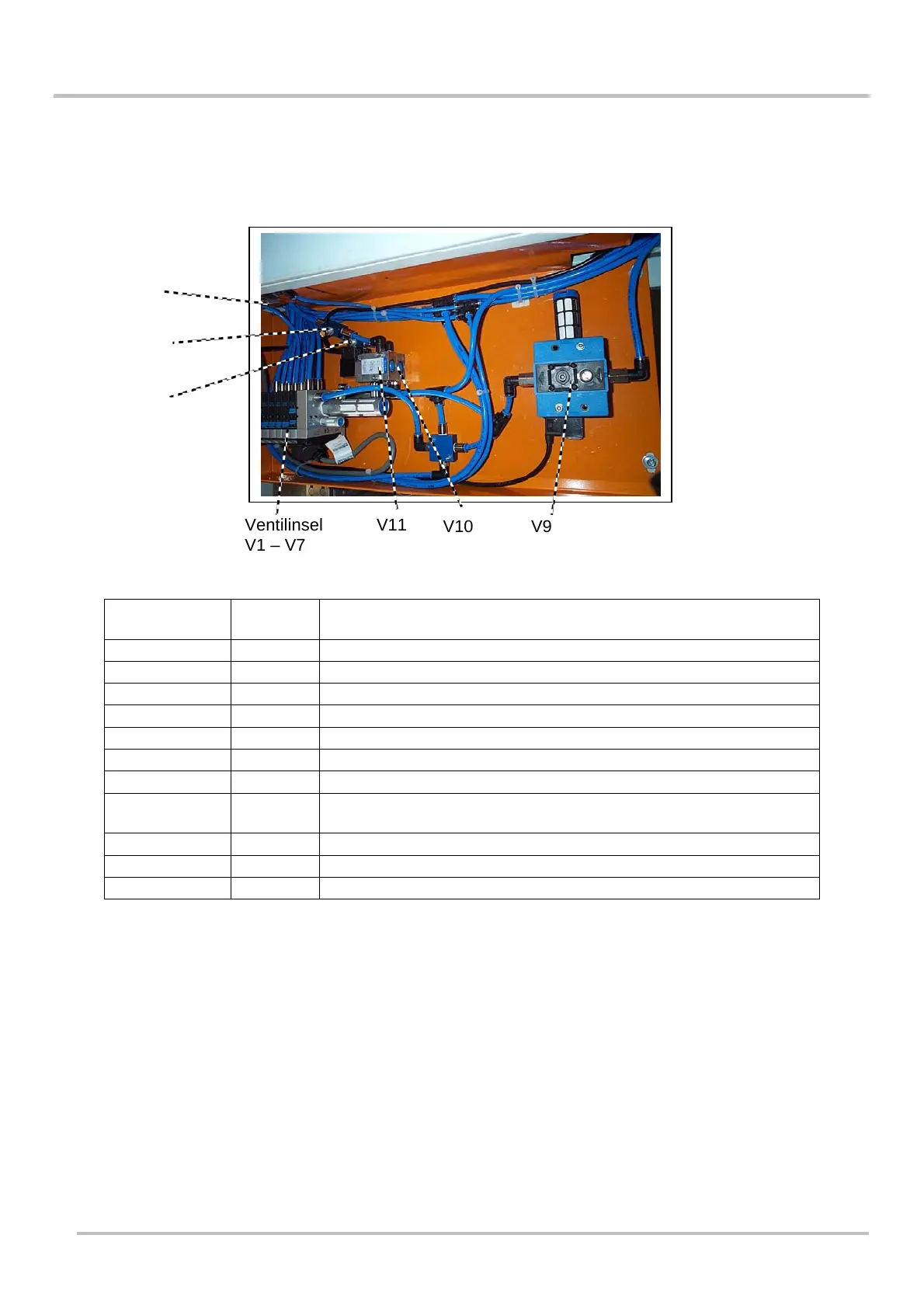

Ventilinsel
V1
–
V7
V9
D9
D10
V10
D11
V11
