Pneumatics
5
Subject to change without notice
41

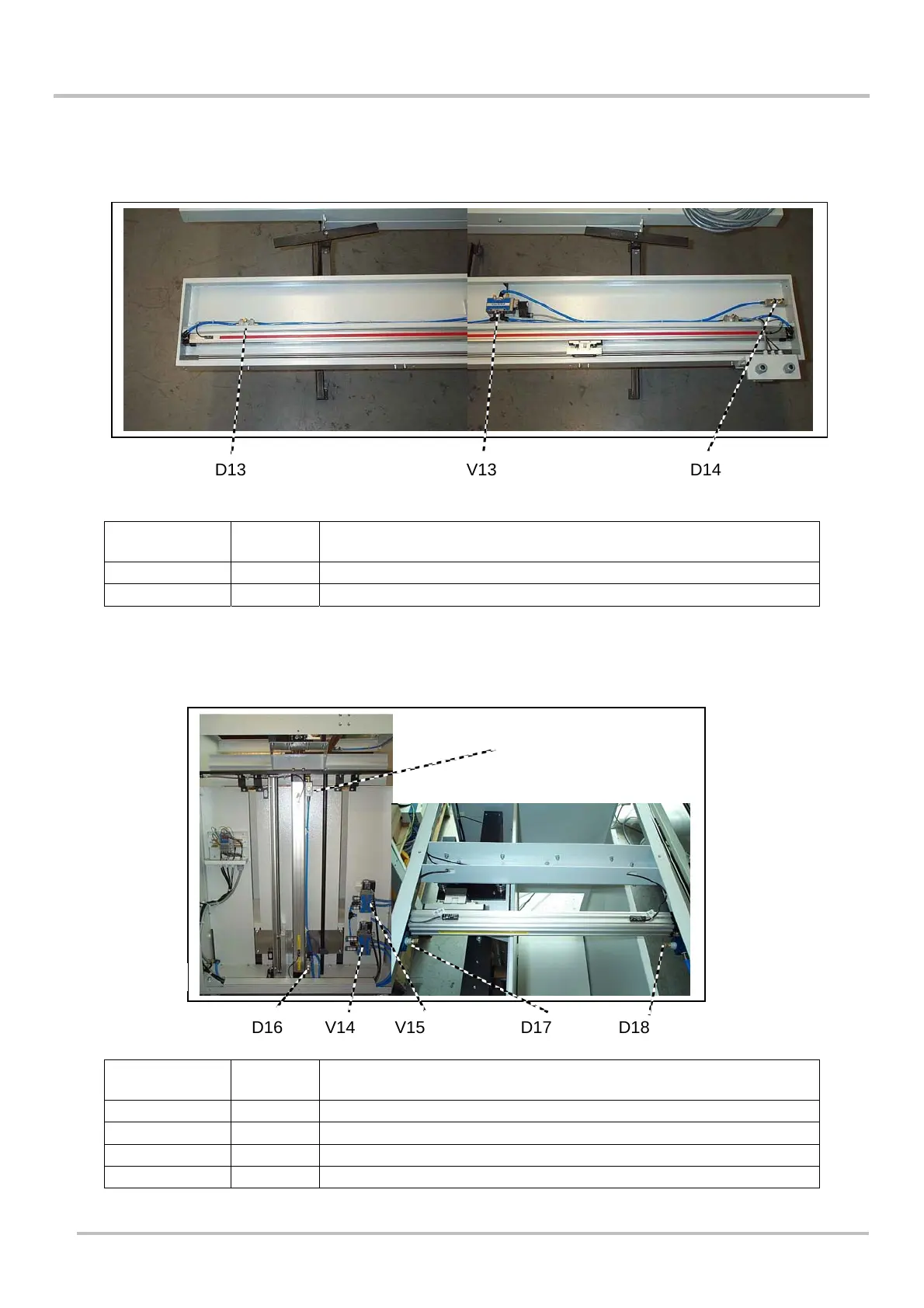

5.5 summary side loader
Throttle
description
Valve
descr.
Function
D13 V13 Side loader moves to the left
D14 V13 Side loader moves to the right
5.6 summary package lift
Throttle
description
Valve
descr.
Function
D15 V14 Lifting table moves to working position
D16 V14 Lifting table moves to starting position
D17 V15 Ejector package lift moves to starting position
D18 V15 Ejector package lift moves to working position
D13 V13 D14
D16 V14 V15 D17 D18
D15
2930 2942
