Translation
2 TAKING DELIVERY AND SETTING UP THE MACHINE FOR
OPERATION
2.1 Lifting the machine
The machine can be lifted with a forklift truck from both sides. The places for the lifting
forks are marked with decals. There is also a lug for lifting the machine on the upper part
of the machine frame.
2.2 The transport set-up and unpacking
The machine is delivered almost ready assembled and with the conveyor attached.
In order to avoid damage during transportation, the machine is delivered partly disman-
tled so that all the protruding levers and the hitching parts of a tractor-powered ma-
chine and part of the protective covers have been removed and packed separately.
The extension table for the in-feed conveyor and the loading conveyor are in the
transport position.
The angular gear is filled with transmission oil.
2.3 Acceptance inspection
Check the delivered goods without delay.
If the product shows transport damage, contact the transport company and your dealer
immediately.
Fig. 1

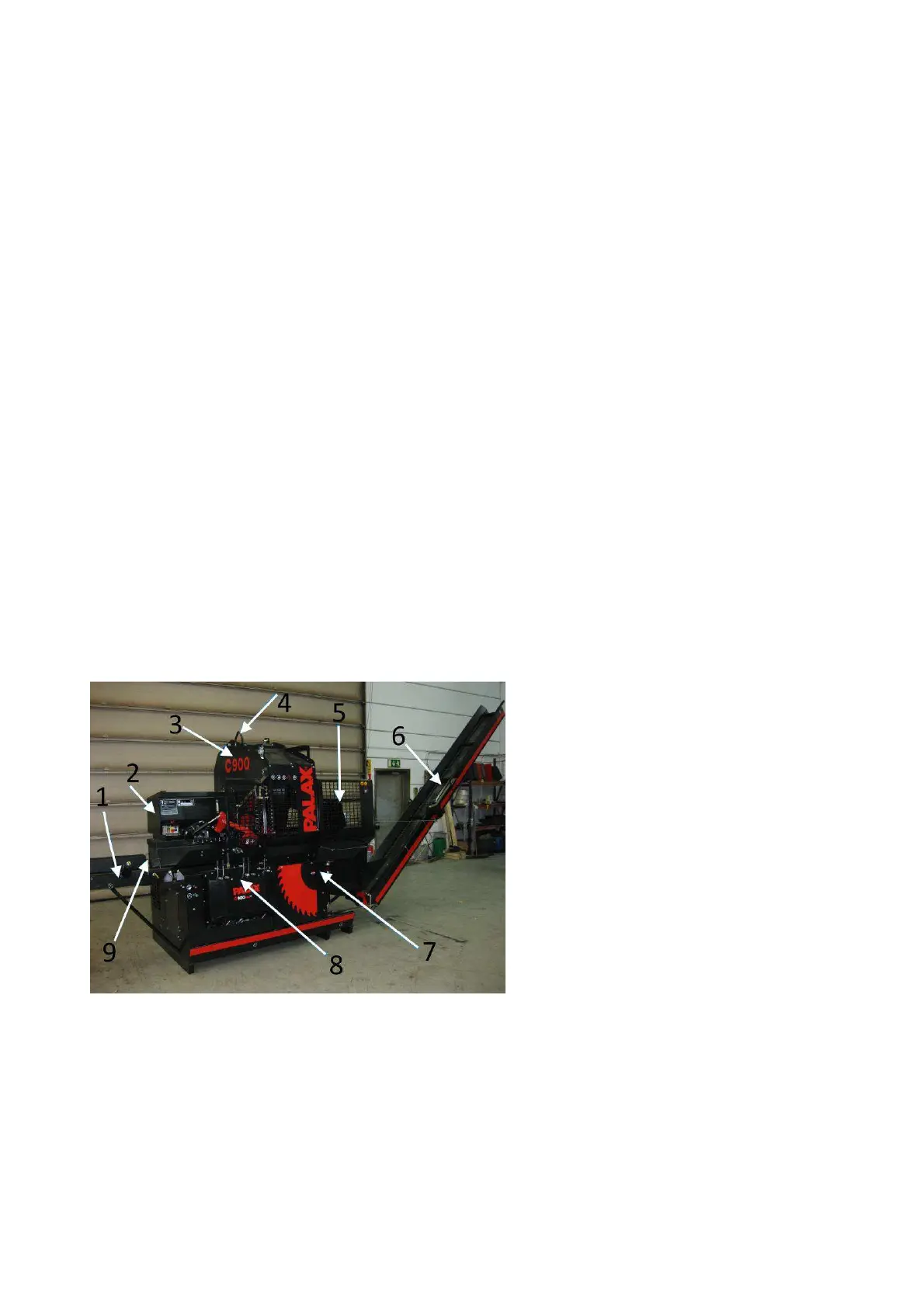

2.4 Main parts of the machine, Fig 1
1. In-feed conveyor
2. Oil tank
3. Saw-blade cover
4. Lifting lug
5. Splitting chute cover
6. Discharge conveyor
