9.8 Tightening the in-feed conveyor belt, Figs. 18 and 19
There are tightening screws A and B at the end of the infeed deck table extension,
which can be used for tightening the belt.
As you tighten the belt, make sure that the belt travels in the centre of the roller.
Ensure that the scraper C is as close to the roller as possible. The scraper is intended
for always keeping the roller clean and ensuring that the belt runs straight.

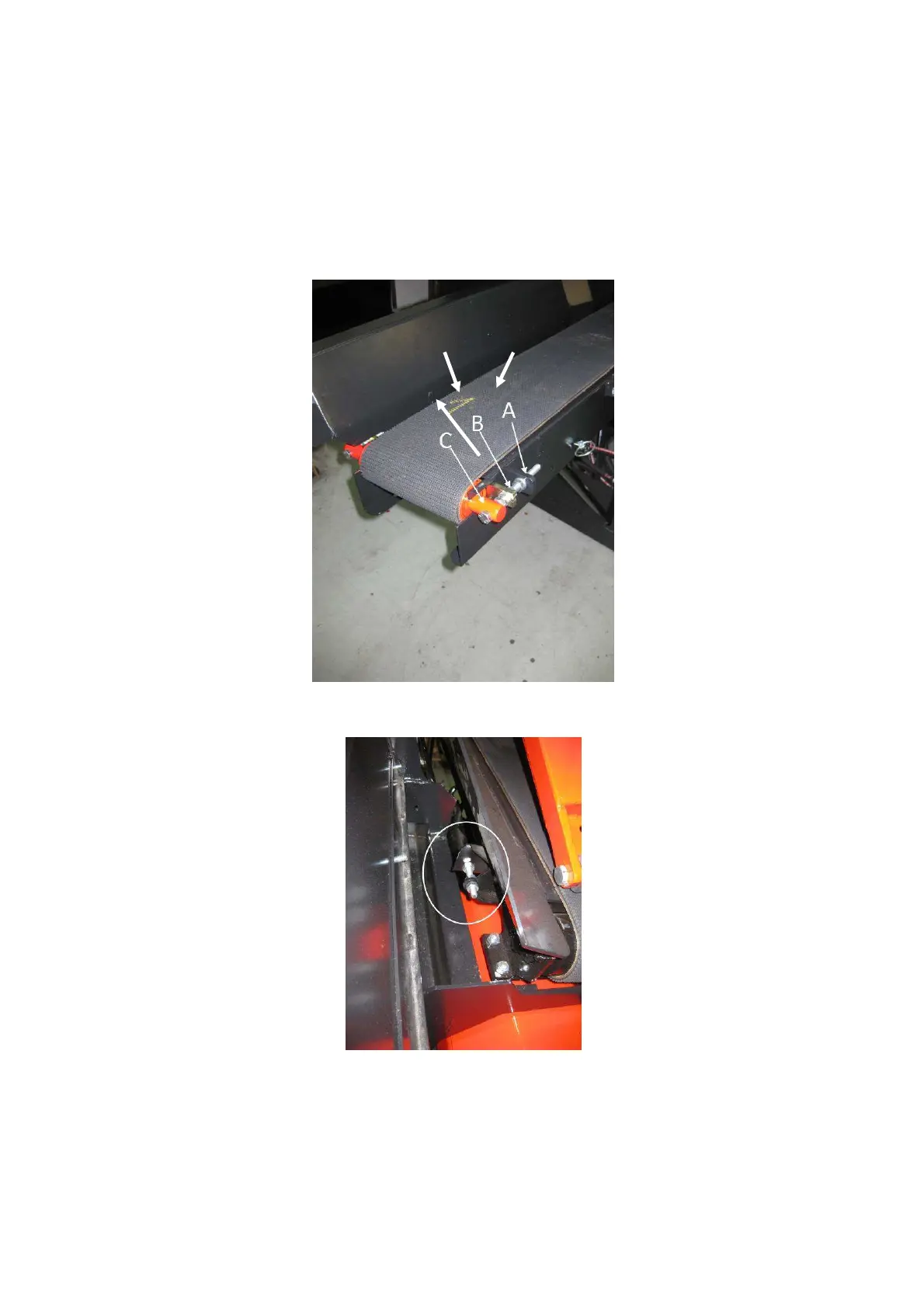

Fig. 18
Fig. 19
There is an adjustment screw at the blade side end of the in-feed conveyor with which
you can change the path of the belt and make it run straight.
