If the angular gear revolutions and the cutting speed of the crosscut blade are suffi-
cient, less load will be subjected to the transmission.

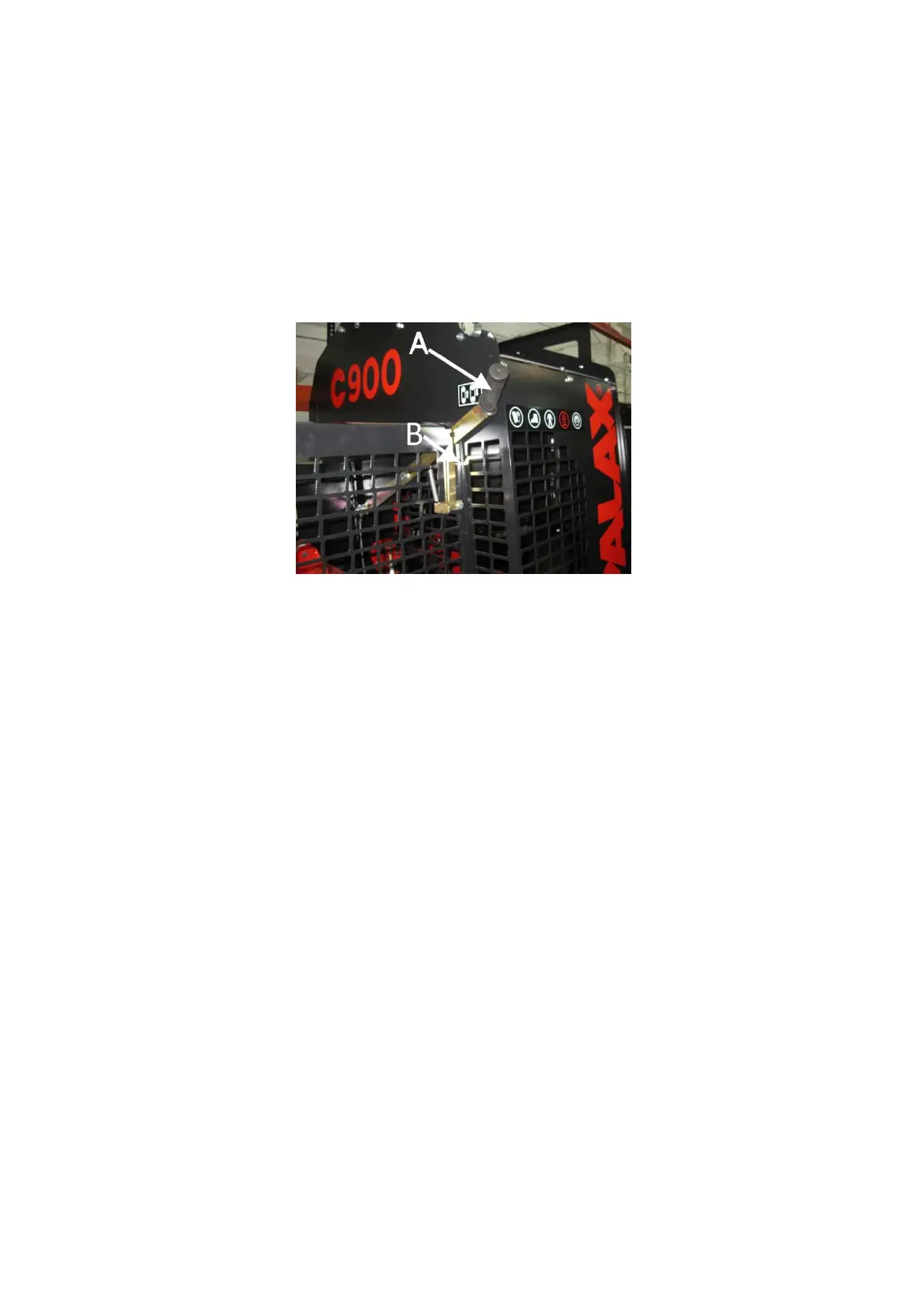

3.4 Disengagement lever for transmission, Fig. 7
The machine is equipped with a special device for disengaging the transmission be-
tween the angular gear and the machine to make the hydraulic pumps and the crosscut
saw-blade stop.
In the event of emergency, pull the lever A downward. Thus will the lock-up bolt B lock
the lever and the V-belts will remain slack.
Fig. 7
NOTE ! Only use the lever in an emergency, because the V-belts, which slightly
chafe the angle-drive pulley, may wear too quickly.
3.5 Required measures in an emergency situation
If the switch has been used in an emergency situation, e.g. when a log has stuck in the cir-
cular saw-blade as a result of a mistake during the sawing, immediately also switch off the
power take-off transmission of the tractor (tractor-powered machine), because the pulley of
the angle drive can wear down the V-belts unnecessarily.
NOTE! Release the disengagement lever for the transmission before restart-
ing the machine.
3.6 Starting under cold conditions (machine powered by a tractor)
When starting the machine in severe frost, allow it first to idle at low speed for about 5
minutes; this warms up the oil.
Warming up the oil reduces wear on the hydraulic system significantly and prevents
damage.
3.7 Electric drive, start and emergency stop.
The output of the motor is 15 kW and its speed is 1,480 rpm.
The machine is equipped with an automatic Y-D starter with an emergency stop fea-
ture.
All the electric installations have been made ready.
The cross-section of the extension cord required for a tension of 400 V must be 6 mm2.
