Palax C900 - Bringing the Conveyor into the Work Position, Fig. 5

15 1-2017
Translation
WARNING! Always hold by the winch handle as you lower the conveyor.
2.7 Bringing the conveyor into the work position, Fig. 5
1. Lower the conveyor to the ground and connect the support bar B for the conveyor
chain (Fig. 5).
2. Pull lock A (Fig. 5) open and lift up the conveyor top.
3. Ensure that lock A is properly locked.
4. Raise the conveyor using the winch.
5. Tighten the winch wire lightly in order to prevent it uncoiling from the spool.
6. Lock the conveyor to the transport support using the lock, the chain and the pin.

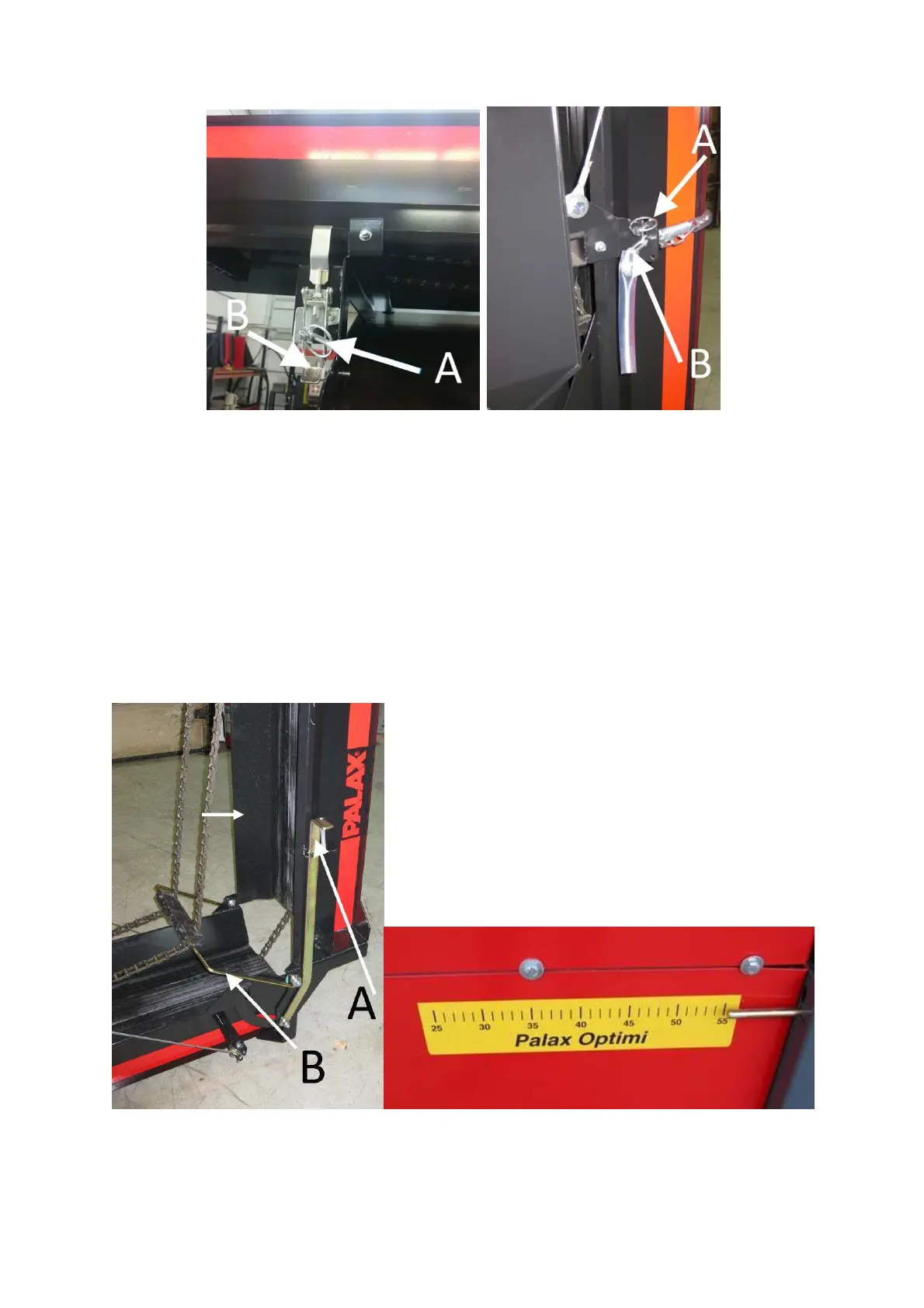

Fig. 5 Fig. 6
