ILP 25/33 Owner’s Manual
Rev.1.4 11

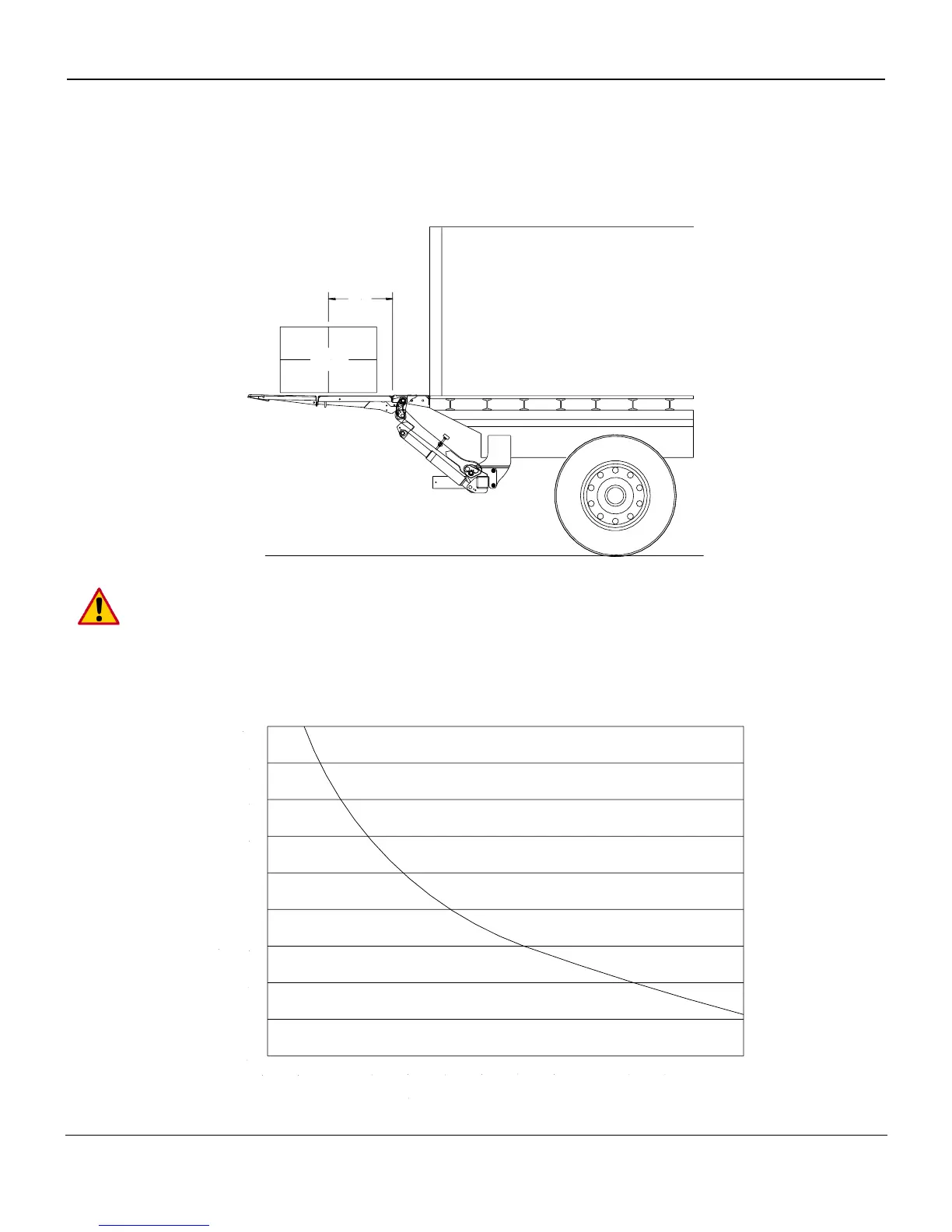

5 Maximum Load and Placing of Load on Platform
Every Palfinger Liftgate is rated up to a maximum load. The point of maximum load is rated at a defined
distance. The center point of maximum load is at 24” from the rear of the bed extension out to the platform,
Fig.2.
24"
Vehicle
Load
By increasing this distance the maximum load of the liftgate is decreasing.
An overview about the rating depending, on the distance from the end of the platform is shown in the
following load diagram.
18
24
30
36
42
48
54
60
66
72
78
84
90
10
20
30
40
50
60
70
80
90
100
Distance From Body (inches)
Capacity (%)
Fig.2
