Steel Platform Cart Stops

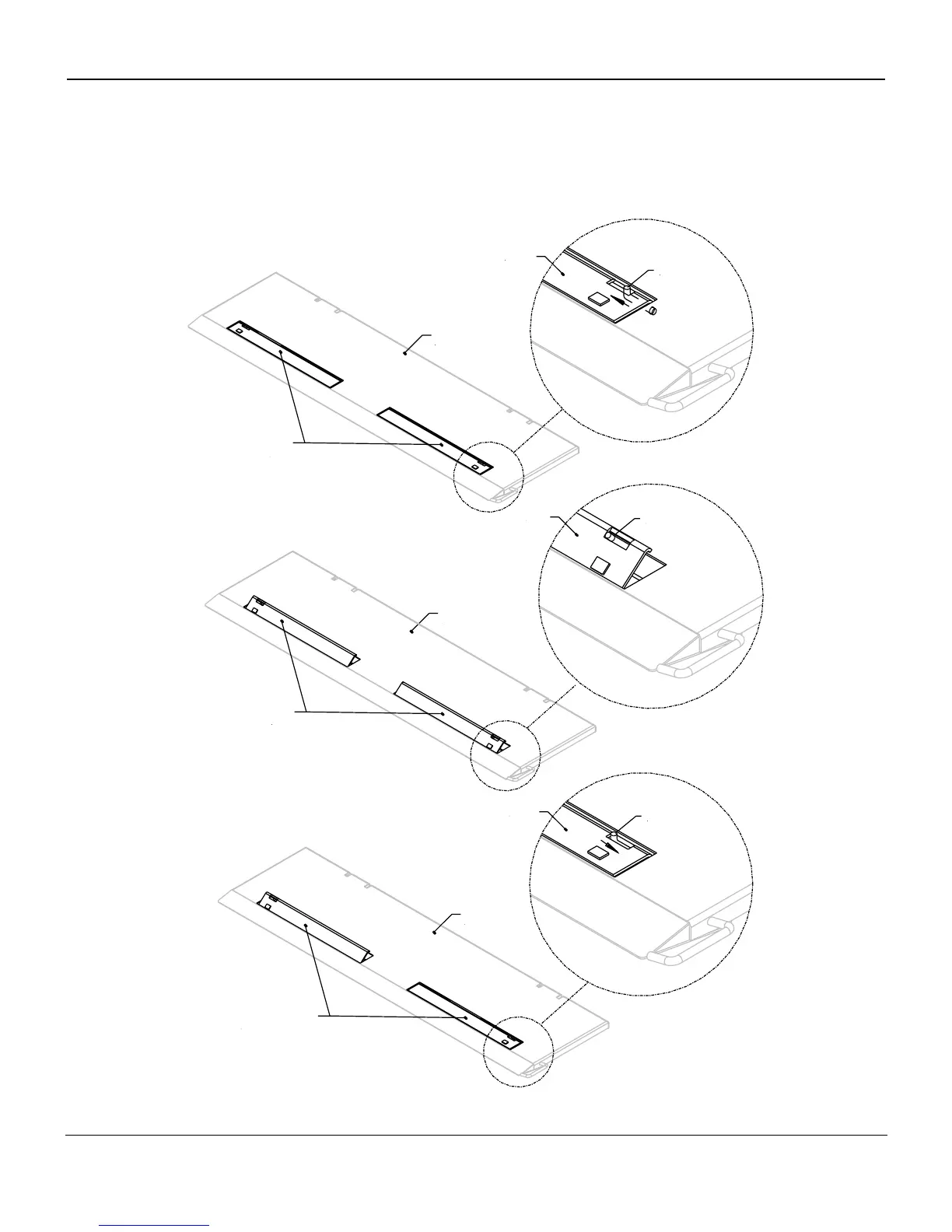

1. Each cart stop is equipped with a retaining latch. Push each latch inward to open the cart stop, Fig.17.
The cart stop will automatically spring open once the latch has been pushed, Fig.18.
2. To close the cart stop, push and hold each cart stop down in close position and lock each cart stop with
the retaining latch, Fig.19.
Cart
Stops
(Closed Position)
Platform
Tip
Push each cart stop
down to close
Platform
Tip
Platform
Tip
Cart
Stops
(Open Position)
Push Down
to Close
Cart Stop
(Open)
Cart Stop
(Closed)
Retaining
Latch
Retaining
Latch
Retaining
Latch
Note: One latch on each cart stop.
Fig.17
Fig.18
Fig.19
