Palfinger PK85002 - Chapter 3 Set-Up

An overview of the crane 3.1-1
3.1. An overview of the crane
3.1-1 Set-up

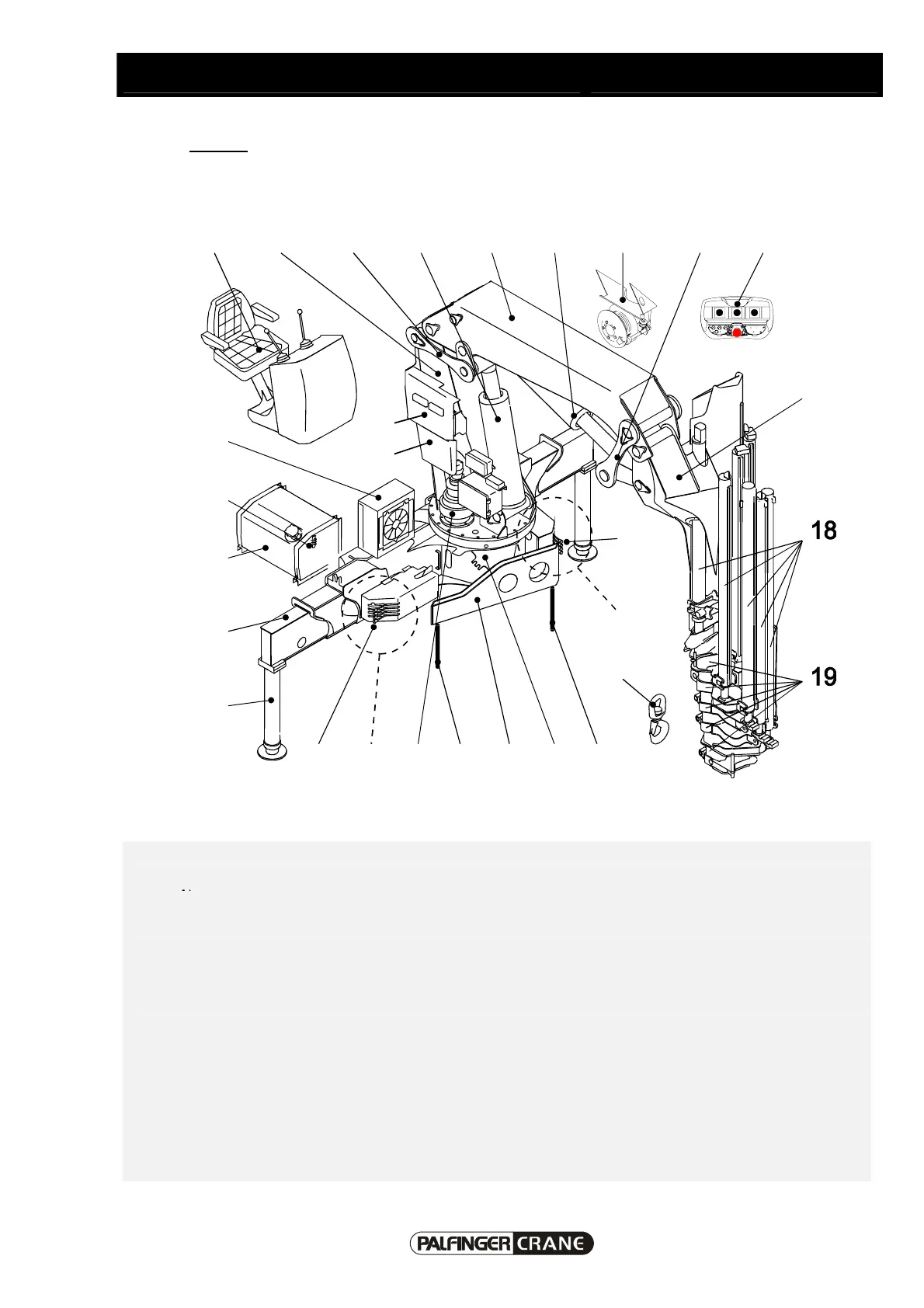

The crane displayed below is an example and shows crane components that can optionally be on
your crane depending on model and crane type.
2A
2B
1
1
3 4245 4
6
8
7
9
10
1
6
1
1
1
4
1
3
1
6
1
5
1
2
1
7
2
3
21
22
20
2
5
1 Control unit (crane support) 13 Main boom
2A Operating stand - control valve side (Side
A)
14 Outer boom cylinder
2B Operating stand - opposite side (Side B) 15 Cable winch
3 Slewing gear, unlimited 16 Link age system
4 Mounting bolts 17 Outer boom
5 Balance 18 Hydraulic cylinder extension boom
6 Stabilizer cylinder 19 Extension boom and mechanical extensions
7 Outrigger box 20 Oil cooler
8 Hydraulic fluid tank 21 Emergency control stand
9 Hydraulic fluid level indicator /
Temperature indicator
22 Display and control element
10 Crane hook 23 Remote control console (transmitter)
11 Crane column 24 Base
12 Lifting cylinder 25 Top seat
