• Actuate the function “lower main boom” and hold it in this position.

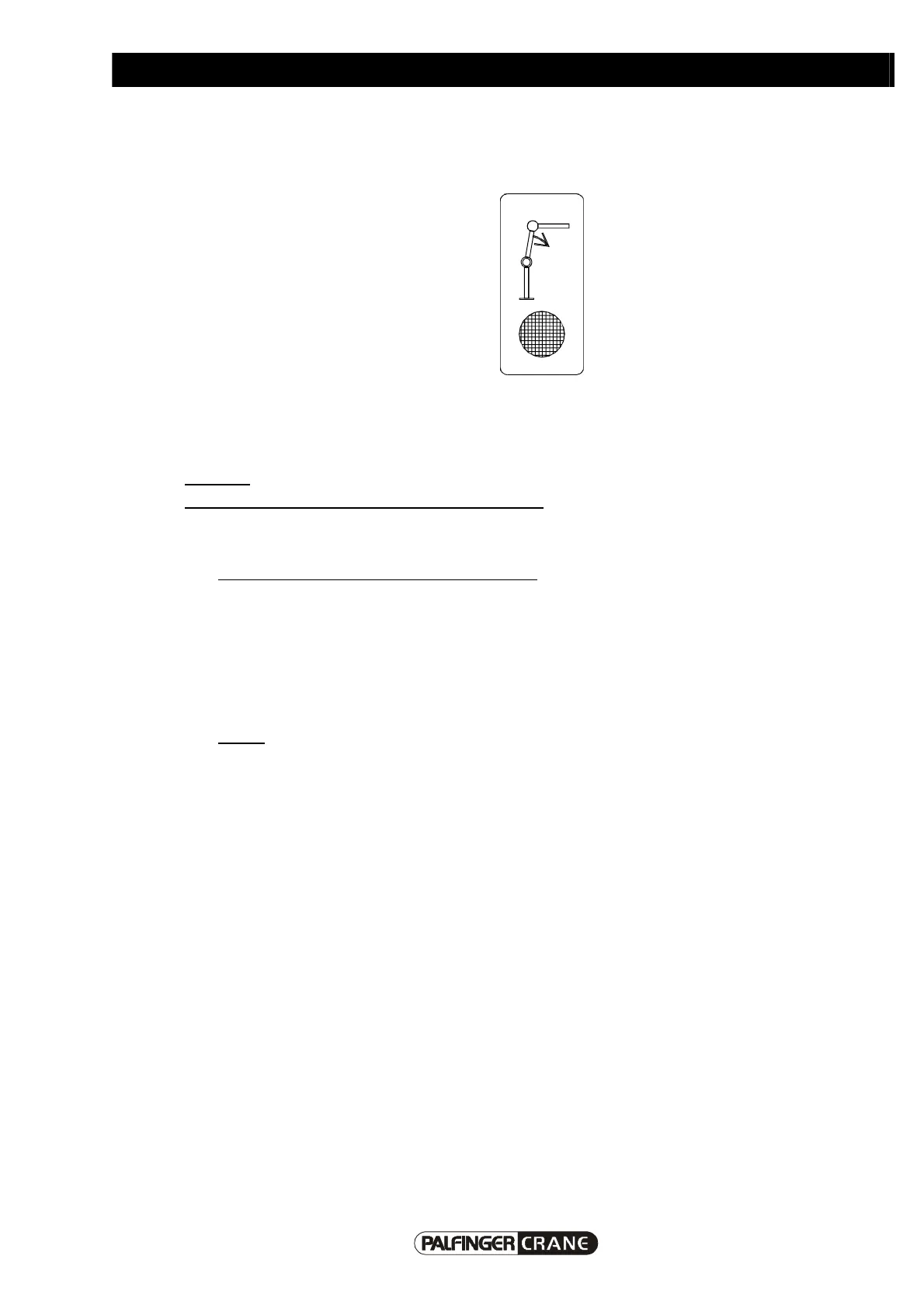

• Press the button
If case of mistake, you can repeat this procedure again after 30 seconds.
If the magnet valve of the overload safety device switches off during crane operation due to power
failure you can put the crane in transport position following the instructions in chapter 4.2-5.
4.2-4 SHB 01
Slewing-angle-dependent lifting capacity control
The slewing-angle-dependent lifting capacity control responds if the vehicles stability is threatened by
the load arm being swiveled further.
The following functions are no longer possible:
-main boom: ...................................................lowering/raising
-hinged arm abovehorizontal:.........................lowering
-hinged arm below horizontal: ........................ raising
-extendable arm:............................................ extending
-load arm: .....................................................slewing
If fitted
:
-rope winch:.................................................raising
-fly jib:...........................................................raising/lowering
-fly jib:..........................................................extending extendable arm
Before you will be able to swivel further the load moment must be reduced by retracting the
hydraulically extendable arms.
After this the operation elements of the crane must be put to cero to release all blocked functions.
