3.1-2 An overview of the crane

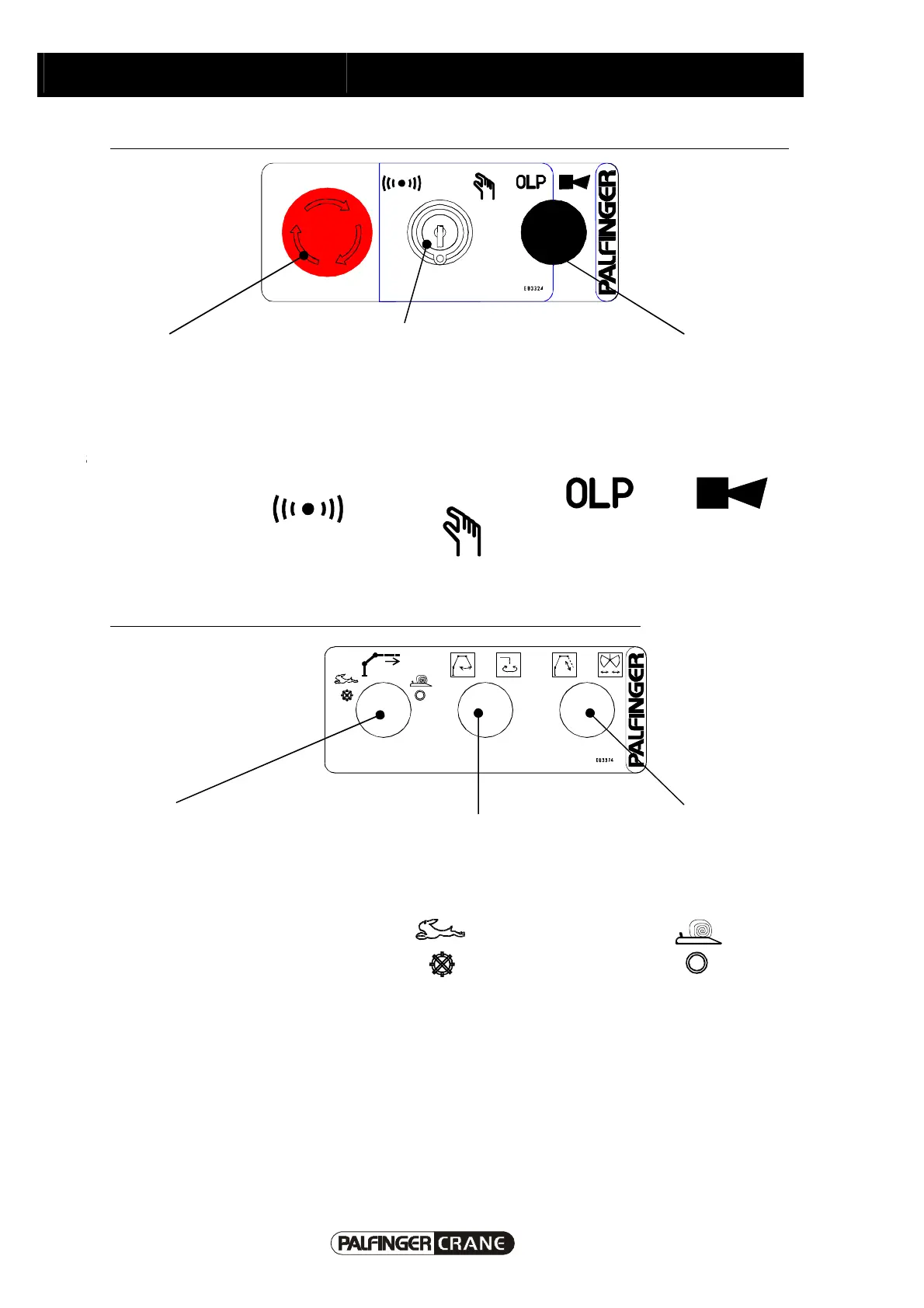

Display field with key switch for cranes with Paltronic 50 (Paltronic display on remote control panel)
Emergency-Off Key-operated switch for switching
between remote control console and
manual operation (emergency control
stand).
OLP–button and for cranes with an
outreach of more than 12 metres also
the warning horn.
S Symbol assertion:
(Remote control)
crane operation
(Emergency control
operation)
crane operation
OLP Button
Warning horn
Switching between attachments and fly-jib operation and return oil use on/off:
Control lamp for return oil use Switching between: fly-jib hinged
arm and rotator on fly jib
Switching between: fly jib
extendable arm and grab on fly jib
S Symbol assertion:
Return oil use on
Return oil use off
