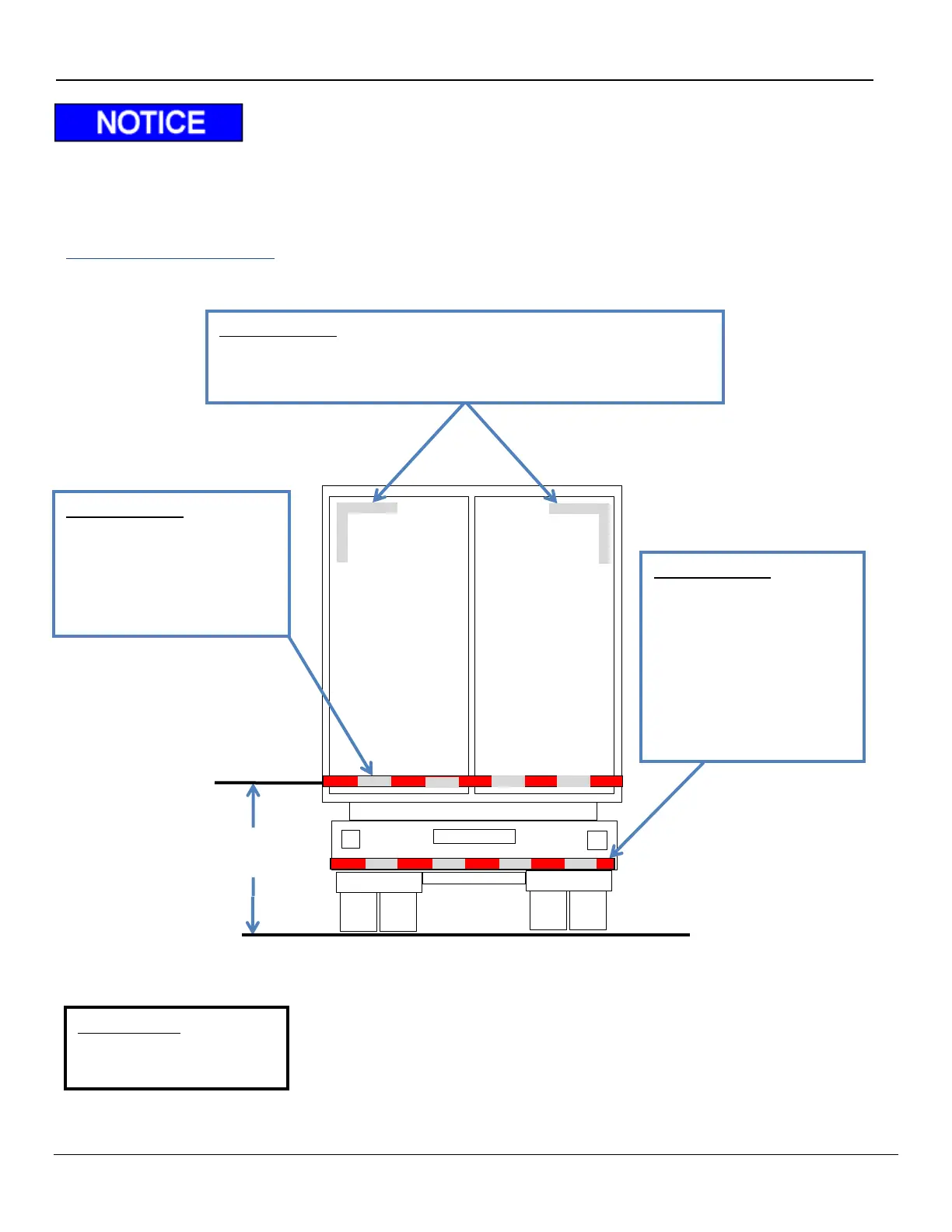

It is the installer’s responsibility to determine the proper application of the Conspicuity tape, and
to ensure that the vehicle or trailer meets DOT and federal lighting regulations. The following dia-
gram is a guideline for placement on trailers over 80” wide and GVWR of 10,000 Lbs. or more. This
document is not intended to replace published agency regulations, and it is strongly recommend-
ed that the installer refer to the Code of Federal Regulations (CFR) which can be viewed at
http://ECFR.gpoaccess.gov.
H Dimension:
15” < H <60” from ground
to center of tape
Requirement 3:
Red/white reflective tape
applied across the entire
width of the rear under-
ride protection device.
Note: Not required if no
underride protection is
equipped
Requirement 2:
On each corner: Two 12” long white reflective pieces, place ad-
jacently to one another as close to the upper corner of the trailer
as possible
Requirement 1:
Red/white reflective tape
applied across the entire
width of the trailer placed at
an appropriate height H
from the ground
H
